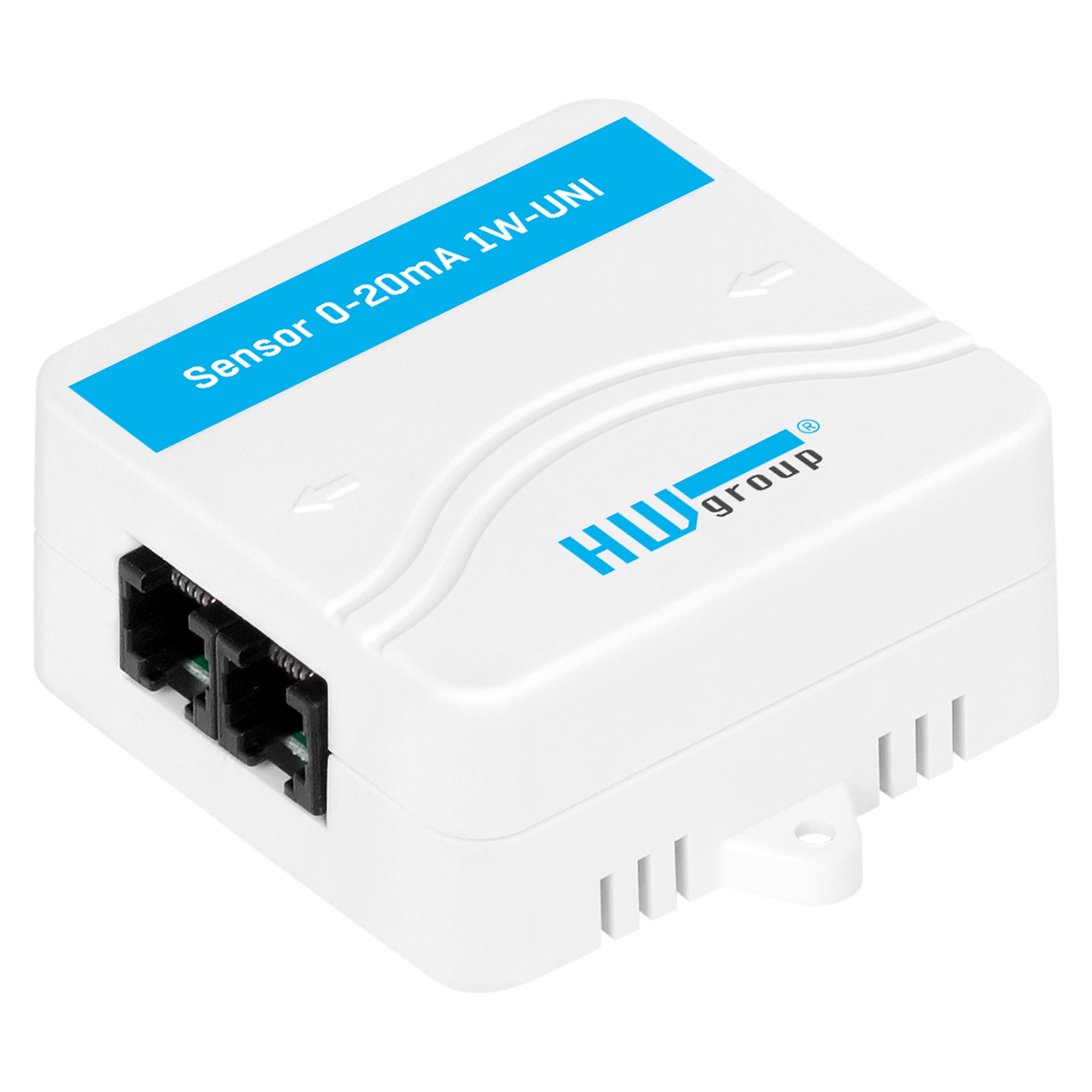

Current sensor Sensor 0-20mA 1W-UNI, 0-20 mA DC converter, electrically isolated, RJ11 1-Wire UNI - HW group 600566

Plenty of industrial probes only speak current loop, while the monitoring unit in the plant room does not. The Sensor 0-20mA 1W-UNI converts that signal for the 1-Wire UNI bus with ±2 % accuracy across the full range, galvanically isolated and with up to 8 calibration points.

Benefits

• Galvanic isolation: the 0-20 mA input is electrically isolated from the 1-Wire UNI bus, so ground potential differences between probe and monitoring unit do no harm.
• Real units instead of mA: an 8-point calibration table and unit conversion inside the sensor deliver readings in litres, bar or ppm.
• Protected input: a 63 mA fuse guards the measuring input.
• Simple wiring: two RJ11 sockets let you daisy-chain further sensors on the same bus.
• No separate supply needed: powered from the 1-Wire UNI bus at 5 V and 20 mA, up to 2 sensors per active port.

Technical data

Applications

• Tank level measurement, for example for standby diesel generators in data centers
• Integrating pressure transmitters, for example in the coolant loop of a liquid cooling system with CDU
• Current transformers with 0-20 mA output in distribution boards and plant rooms
• CO2 or other gas concentration readings from industrial probes
• Connecting electronic scales

Scope of delivery

• 1 x Sensor 0-20mA 1W-UNI (0-20 mA to RJ11 1-Wire UNI converter)
• Not included: industrial probe and its power supply

Compatibility

• HWg-Ares 12 and Ares 14
• Poseidon2 and Poseidon 2250
• Calibration and unit conversion with the 1-Wire UNI USB calibrator (600535)
• For 4-20 mA signals HW group offers the Sensor 4-20mA 1W-UNI as an alternative
