KTR pump carriers connect an electric motor and a hydraulic pump into a compact drive-pump assembly, aligning the pump axially to the motor shaft. The range covers more than 2,600 items in the PL, PFL, PK, PFK and PG designs plus the matching seals.
The carriers are graded by frame size and motor flange (e.g. the 160 series) and come in various lengths and connection variants, some with leakage-oil bore. Unmachined blanks are available for customer-side finishing.
Categories
Pump Carrier PLPump carrier design PL
Pump Carrier PFLPump carrier design PFL
Pump Carrier PKPump carrier design PK
Pump Carrier PFKPump carrier design PFK
Pump Carrier PGPump carrier design PG
SealSeals for pump carriers
Pump carriers are used in hydraulic power-unit assembly to connect motor and pump without a separate base frame. They ensure correct alignment of shaft end and pump port and, together with the coupling and damping element, form the link between drive and pump.
PL / PFL carriers with bolt circle or flange version for connecting motor and pump.

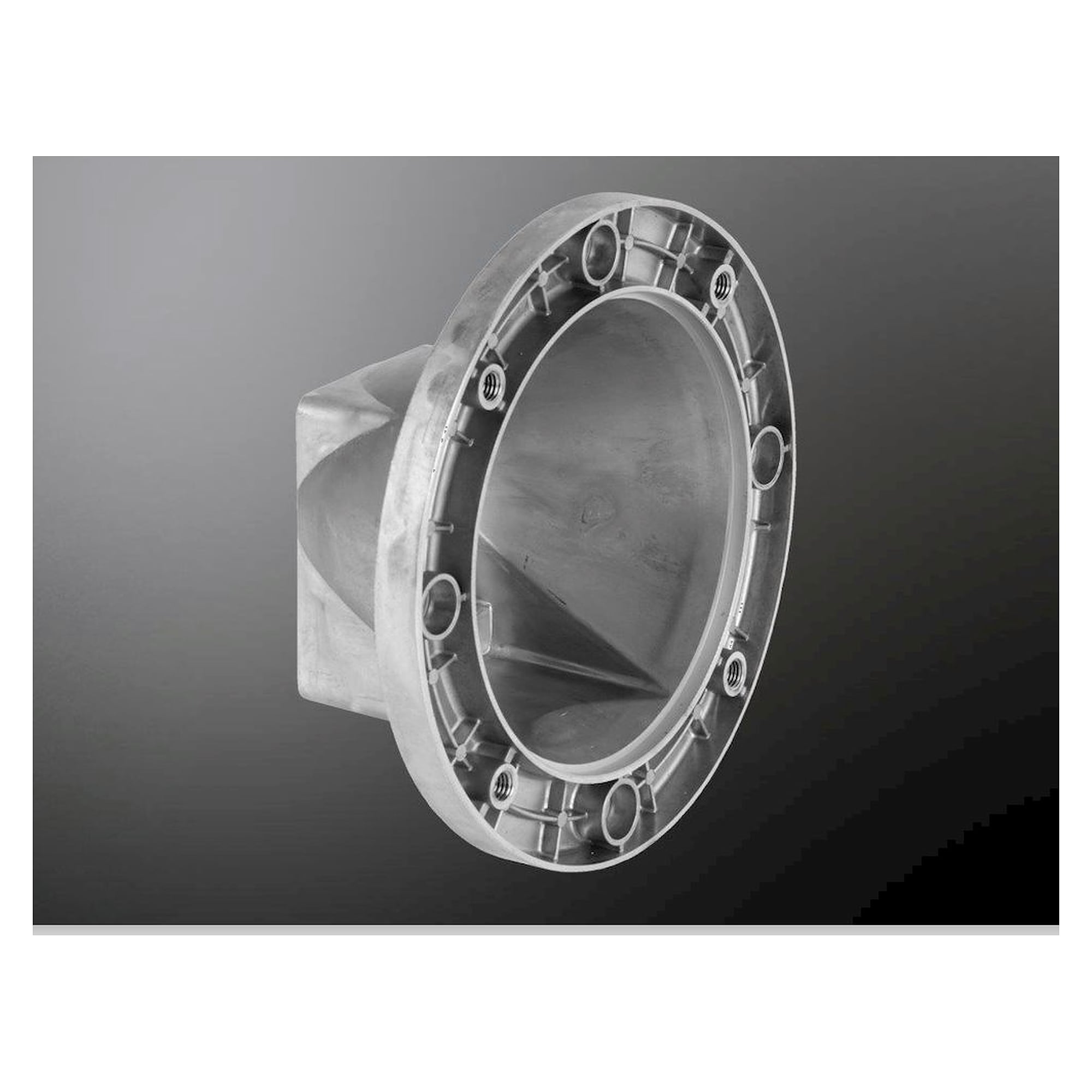

PK / PFK short or flange variants for compact power units.
PG design for larger or special mounting situations.
Leakage-oil bore variants with a bore to drain leakage at the pump port.
Unmachined blanks for customer-specific final machining.
