Norgren - pneumatics and motion control from the UK

Valves, cylinders and air preparation for industrial automation

Norgren is an established British manufacturer of pneumatic and motion control components and today a brand of IMI plc. Founded on the work of Carl Norgren, the range now spans directional and solenoid valves, pneumatic and hydraulic cylinders, air preparation, fittings and accessories.

For design engineers and maintenance teams this means rugged, long-lasting components with good availability of spare and replacement parts. At fluidics-equipment.com you get the Norgren range for new projects as well as for replacements in existing plant - from a single seal kit to a complete actuator unit.

🇬🇧Made in UKBritish pneumatics specialist with a long engineering tradition, today a brand of IMI plc.

✅Proven qualityRugged valves and cylinders built for continuous industrial duty and long service life.

🔧Broad portfolioValves, cylinders, guide units, air preparation and fittings from a single source.

📦Retrofit and new buildMatching components and seal kits for new projects and for replacements in existing plant.

Selection

Norgren best sellers

View all products ->

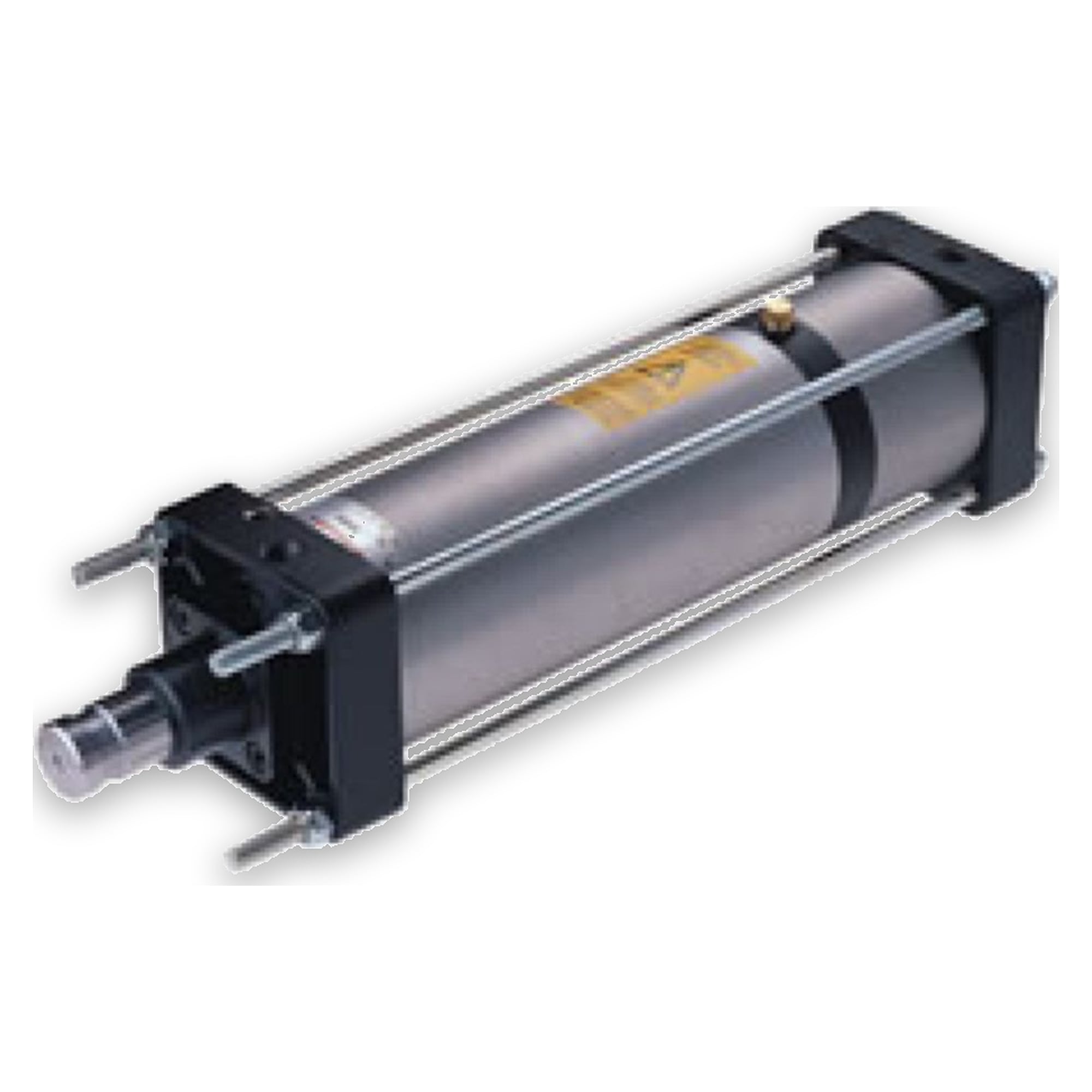

Impact Cylinder - Norgren M/3040M View product ->

Valve 5/2 G/1 - Norgren M/1748/123/MD83J View product ->

Tie Rod Cylinder, double-acting - Norgren RM/980/2400 View product ->

Actuator Cylinder - Norgren M/1525/200 View product ->

Mounting R - Norgren QM/769 View product ->

Seal Kit - Norgren TQM/9100/00 View product ->

Seal Kit - Norgren QM/3060/00 View product ->

Double-acting Profile Cylinder - Norgren RA/8320/M/500 View product ->

Assortment

Norgren product lines

View category ->

Tie rod and profile cylinders 11 products Double-acting tie rod, profile, mini and round cylinders for pneumatic linear motion. Lintra rodless cylinders 1 product Lintra, Lintra-Plus and Lintra-Lite series with plain bearing and roller guides for long strokes in a compact envelope. Directional and solenoid valves 16 products 3/2, 5/2 and 5/3 directional valves, solenoid valves plus safety and soft start valves. Air preparation and regulators 4 products Filters, regulators and lubricators of the Excelon, Olympian Plus and R07/B07/L07 series plus proportional pressure regulating valves. Guides, rotary and short stroke units 2 products Ball bearing guide units, short stroke units, rotary actuators and rotary cylinders for handling and assembly. Fittings, accessories and spares 6 products Pneufit and Fleetfit fittings, pressure switches, mountings and seal kits.

Popular

Directional and solenoid valves

View category ->

3/2-Way Safety Valve G11/2 Xsz50 - Norgren 2493230080002400 View product ->

3/2-Way Safety Valve G1 24Vdc - Norgren 2493105080102400 View product ->

2/2 Directional Control Valve G2 without Solenoid - Norgren 7032530000000000 View product ->

5/3-Directional Valve G1/2 Hebel - Norgren M/1704/687 View product ->

5/3 Directional Control Valve G1/2, Lever, 3 positions - Norgren M/1704/87 View product ->

5/2 Directional Control Valve G1/2 Lever 2 Positions - Norgren M/1704/177 View product ->

3/2-Directional Valve - Norgren 9713455000000000 View product ->

5/2-Way Safety Valve - Norgren 2492982305202400 View product ->

Buying guide

Choosing the right Norgren components

Valve, cylinder or air preparation?

A pneumatic circuit is built from three building blocks. Air preparation with filter, regulator and lubricator conditions the compressed air and sets the working pressure. The directional valve controls where the air flows - designations such as 3/2, 5/2 or 5/3 state the number of ports and switching positions. The cylinder finally converts the compressed air into motion.

Which cylinder design fits?

The design follows force, stroke and available installation space:

Tie rod cylinders: classic design, rugged and easy to retrofit
Profile cylinders: compact extruded body with integrated sensor slots
Mini and round cylinders: for small forces and tight installation spaces
Lintra rodless: long strokes with a short overall length
Bellows and impact cylinders: for special duties such as clamping or forming

Pneumatic or hydraulic?

Pneumatic cylinders run on compressed air and suit fast, clean movements at moderate forces. Hydraulic cylinders use oil and deliver much higher forces with precise positioning under load, but require a hydraulic power unit.

Mind the key parameters

The decisive figures are bore diameter, stroke length, port size and mounting style; for valves add actuation type, coil voltage and nominal flow. Note the complete model designation from the nameplate so that replacement parts and seal kits match the installed equipment exactly.

Comparison

Which product group do you need?

Criterion	Cylinders	Directional valves	Air preparation
Task	Generate motion	Switch the air flow	Condition and regulate the air
Medium	Compressed air or hydraulic oil	Compressed air	Compressed air
Typical designs	Tie rod, profile, mini, Lintra cylinders	3/2, 5/2, 5/3, safety valves	Filters, regulators, lubricators, combination units
Control	Via the upstream valve	Solenoid, pilot operated or lever	Mechanical or proportional
Selection criteria	Bore, stroke, mounting	Port size, voltage, flow	Port size, filter grade, pressure range
Application	Handling, assembly, forming	Actuator control, safety functions	Component protection, stable pressure
Spare parts	Seal kits, mountings	Solenoid coils, seals	Filter elements, regulator kits

Good to know

Norgren at a glance

United KingdomCountry of origin of the brand

IMINorgren is a brand of IMI plc

Carl NorgrenFounder of the company

PneumaticsValves, cylinders, air preparation

FAQ

Frequently asked questions about Norgren

Which country does Norgren come from?

Norgren is a British manufacturer of pneumatic and motion control components. The brand goes back to founder Carl Norgren and today belongs to IMI plc, based in the United Kingdom.

Which products does Norgren offer?

The range covers directional and solenoid valves, pneumatic and hydraulic cylinders in round, compact, profile, tie rod, mini and bellows designs including the rodless Lintra series, air preparation with filters, regulators and lubricators, fittings as well as pressure switches, safety valves, accessories and seal kits.

What do designations such as 3/2 or 5/2 directional valve mean?

The first number states the count of ports, the second the count of switching positions. A 3/2 directional valve therefore has three ports and two positions and typically controls single-acting actuators, while a 5/2 valve is used for double-acting cylinders.

What are the Norgren Lintra series?

Lintra, Lintra-Plus and Lintra-Lite are rodless cylinders. The carriage travels inside the cylinder body, which allows a long stroke within a very short installed length. Lintra-Plus is additionally available with plain bearing or roller guides to take lateral and moment loads.

What belongs to a Norgren air preparation unit?

A preparation unit consists of a filter, a pressure regulator and optionally a lubricator - at Norgren in the Excelon, Olympian Plus and R07/B07/L07 series. The filter removes particles and condensate, the regulator keeps the working pressure constant and the lubricator supplies lubricated components with oil mist.

Are Norgren components suitable as spare parts for existing equipment?

Yes. Through fluidics-equipment.com you can obtain Norgren components both for new projects and as matching replacements, including seal kits and mountings. Please quote the complete model designation from the nameplate so the replacement part fits the installed equipment exactly.
