Norgren

Norgren pneumatic components cover operating pressures from vacuum to 16 bar, bore diameters from 8 mm to over 160 mm for ISO profile cylinders (ISO 15552, ISO 6432), and flow rates from sub-1 l/min in miniature proportional valves up to high-capacity FRL units rated at 4,000 l/min. The Lintra rodless cylinder series (903) achieves strokes up to 3,000 mm with integrated linear guidance, while the 224 proportional valve range delivers analogue pressure control with repeatability of <0.5 % FS - directly fulfilling requirements under IEC 60034 and ATEX Directive 2014/34/EU for selected variants.

As an authorised Norgren distributor, fluidics-equipment.com stocks 39,543 active line items across the complete product hierarchy - from M/58 and Excelon FRL units (series 310, 910, 915, 320) and Pneufit C push-in fittings (series 415) through stainless-steel fittings (series 420, 140) to valve islands (series 230), process safety valves (series 948), and the full Herion valve portfolio (series 902). All products are supplied with manufacturer documentation and traceable batch certification in line with ISO 9001:2015.

Categories

Other cylinders and partsStandard pneumatic components, cross-series accessories and adaptation kits

110 ISO Profile CylinderISO 15552 profile cylinders, bore 32-160 mm, stroke to 2,000 mm

111 ISO Cylinder >160 mmISO 15552 heavy-duty cylinders, bore 160-320 mm, cushioning adjustable

Profile and round mini cylindersRound-body cylinders, series 120, bore 8-32 mm, stroke to 200 mm

Round and stainless steel cylindersShort-stroke / compact cylinders, series 130, bore 12-100 mm, ISO 6432

140 Cylinder Stainless Steel ProductsAISI 316L cylinders, bore 16-100 mm, IP67, food-grade / ATEX compatible

Cylinder mountingsCompact solenoid valves, series 180, G1/8-G1/4, response time <15 ms

210 ValvesDirectional control valves, 2/2 to 5/3 functions, 1.5-10 bar, series 210

212 Valve Base PlatesSub-base plates, ISO 5599-1 size 1-3, G1/8 to G1/2 ports

224 Proportional ValvesAnalogue pressure control, 0-10 V / 4-20 mA, repeatability <0.5 % FS

230 Valve IslandsMulti-station valve manifolds, series 230, up to 16 stations, ISO 15407-2

310 FRL, compressed air preparationM/58 Excelon FRL series 310, G1/4-G1, 5 µm filtration, semi-auto drain

313 Pressure SwitchMechanical pressure switches, series 313, 0.5-16 bar, SPDT, IP65 rated

320 Maintenance UnitsModular FRL maintenance units, series 320, G1/4-G1, up to 4,000 l/min

333 Pressure SwitchElectronic pressure switches, series 333, 0-16 bar, IO-Link, 0.5 % accuracy

410 FittingsStandard push-in fittings, series 410, tube OD 4-16 mm, brass body, G1/8-G1/2

415 Fittings Pneufit CPneufit C push-in fittings, series 415, tube OD 4-12 mm, 14 bar, nickel-plated

420 Fittings Stainless SteelAISI 316 push-in fittings, series 420, tube OD 4-16 mm, 16 bar, FDA-compliant

Special directional valvesPneumatic tubing and hose assemblies, series 610, PA/PU, 4-16 mm OD

620 bellows cylinder, suction cupsBellows cylinders and vacuum suction cups, series 620, -0.9 bar, NBR/Silicone

Seal and mounting kitsGeneral-purpose pneumatic components, series 900, 1.5-10 bar operating range

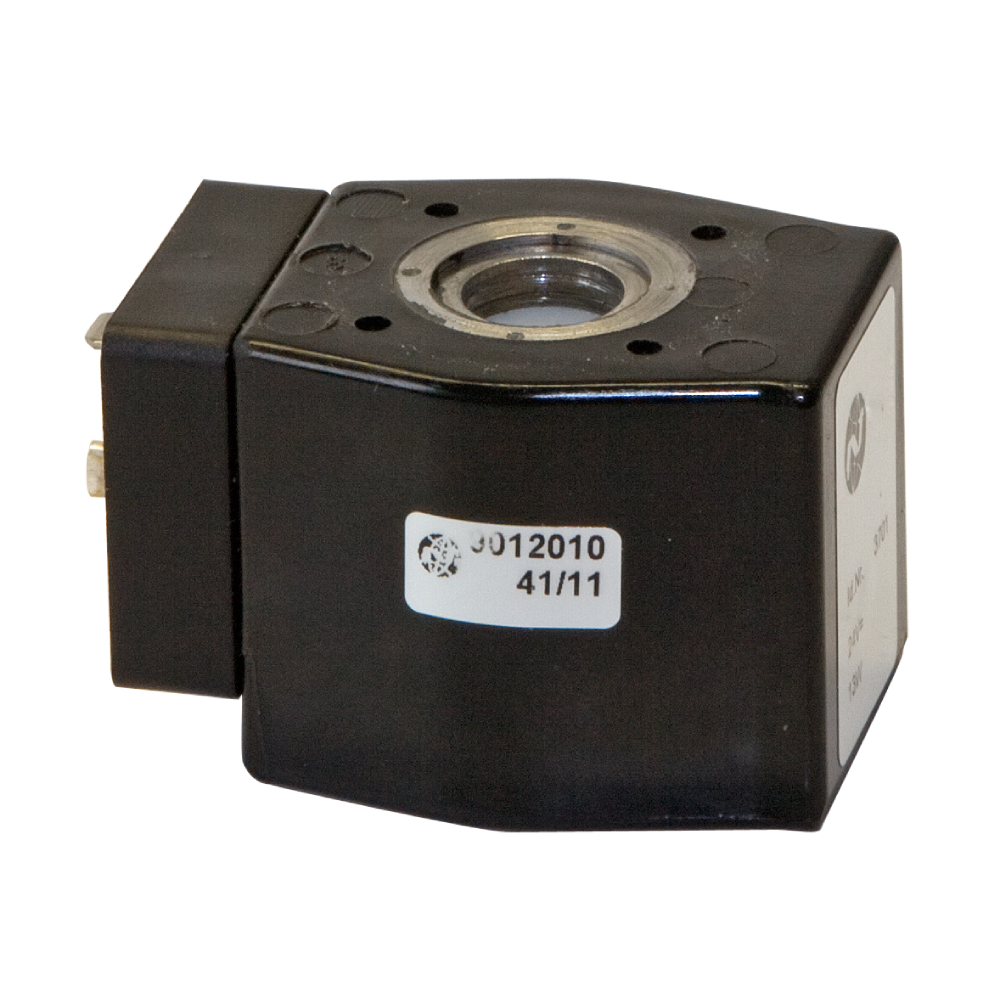

901 Spare PartsSeries 901 OEM spare parts, diaphragms, O-rings, coil assemblies 24 V DC

902 HerionHerion process valves, series 902, DN 6-50, stainless-steel body, up to 40 bar

903 Lintra CylinderRodless linear cylinders, bore 25-80 mm, stroke to 3,000 mm, integrated guide

905 Vacuum Pumps, Shock AbsorbersVenturi vacuum pumps to -0.9 bar, shock absorbers series 905, self-compensating

910 FRL Air PreparationExcelon FRL units, series 910, 5 µm / 40 µm filter, G1/4-G3/4

915 FRL Special ItemSpecial FRL variants, series 915, extended temperature -40 to +80 °C

Special cylinder versionsPressure gauges and display units, series 920, 0-16 bar, glycerine-filled

Safety valvesModular FRL accessories, series 930, bracket and interconnection sets

Sensors and bus modulesPneumatic safety valves, series 944, G1/4-G1/2, dual-channel monitoring

Control units and directional valvesSafety exhaust valves, series 946, max 10 bar, monitored pilot exhaust

948 Process Safety Valves3/2 dump valves, series 948, SIL 2/3 capable, ISO 13849 PL d/e

970 Special FittingsSpecial-geometry push-in fittings, series 970, tube OD 4-16 mm, 16 bar max

904 Spare PartsOEM spare parts kits, series 904, seal sets, springs, pilot modules
