Bosch Rexroth Hydraulics
Hydraulics
Bosch Rexroth hydraulic components cover operating pressures up to 420 bar and flow rates from 0.5 to over 2,000 l/min across axial-piston pumps (A4V, A10V, A11V series), proportional and servo valves (response time <10 ms), and hydraulic cylinders with bore diameters from 20 to 500 mm - all engineered to ISO 4413, DIN 24346, and CE machinery directive 2006/42/EC. Control electronics including BODAS, HNC100, and IndraControl platforms integrate directly with Rexroth valve manifolds for closed-loop pressure and position control with repeatability to ±0.1 %.
As an authorized Bosch Rexroth distributor, fluidics-equipment.com stocks over 119,347 catalog positions spanning pumps, valves, cylinders, motors, accumulators, power units, filter elements, sensors, and drive electronics - each supplied with original Bosch Rexroth part numbers and full documentation in compliance with ISO 9001 and ISO/TS 16949 quality standards.
Categories
Bosch Rexroth vs. Parker vs. Eaton vs. Danfoss - hydraulic component comparison
| Criterion | Bosch Rexroth | Parker Hannifin | Eaton Vickers | Danfoss Power Solutions |
|---|---|---|---|---|
| Max. operating pressure | 420 bar | 400 bar | 350 bar | 480 bar (H1 series) |
| Axial-piston pump series | A4V, A10V, A11V, A17V | PV, P1, P2 | PVM, PVH, PVQ | H1, 90, 51V |
| Proportional valve response | <10 ms | ca. 15 ms | ca. 20 ms | ca. 12 ms |
| Integrated drive electronics | BODAS, HNC100, IndraControl | IQAN (via Parker) | Limited OEM integration | PLUS+1, MC050 |
| Cylinder bore range | 20-500 mm (ISO 6020/6022) | 25-400 mm | 32-320 mm | 40-250 mm |
| Accumulator standard | EN 14359, 0.075-100 l | EN 14359, 0.1-50 l | ASME, 0.5-75 l | EN 14359, 0.25-50 l |
| Quality certification | ISO 9001, ISO/TS 16949 | ISO 9001, AS9100 | ISO 9001, IATF 16949 | ISO 9001, IATF 16949 |
| Filter element rating | 3-25 μm (ISO 16889) | 3-25 μm | 5-25 μm | 10-25 μm |
Bosch Rexroth Hydraulics - Product overview
| Product Line | Application | Key Specification | Highlight |
|---|---|---|---|
| Pumps | Industrial and mobile hydraulics | Up to 420 bar, 2,000 l/min | A4V, A10V, A11V axial-piston series |
| Valves | Pressure, directional and flow control | Up to 350 bar, response <10 ms | Proportional, servo, cartridge types |
| Electronics and Controls | Closed-loop pressure and position control | ±0.1 % repeatability, CAN/SAE J1939 | BODAS, HNC100, IndraControl platforms |
| Cylinders | Linear actuation, clamping, pressing | Bore 20-500 mm, up to 250 bar | CDT3, CDH1, CDB3 per ISO 6020/6022 |
| Sensors | System monitoring, condition control | 0-600 bar, 4-20 mA / IO-Link | Pressure, temperature, position sensors |

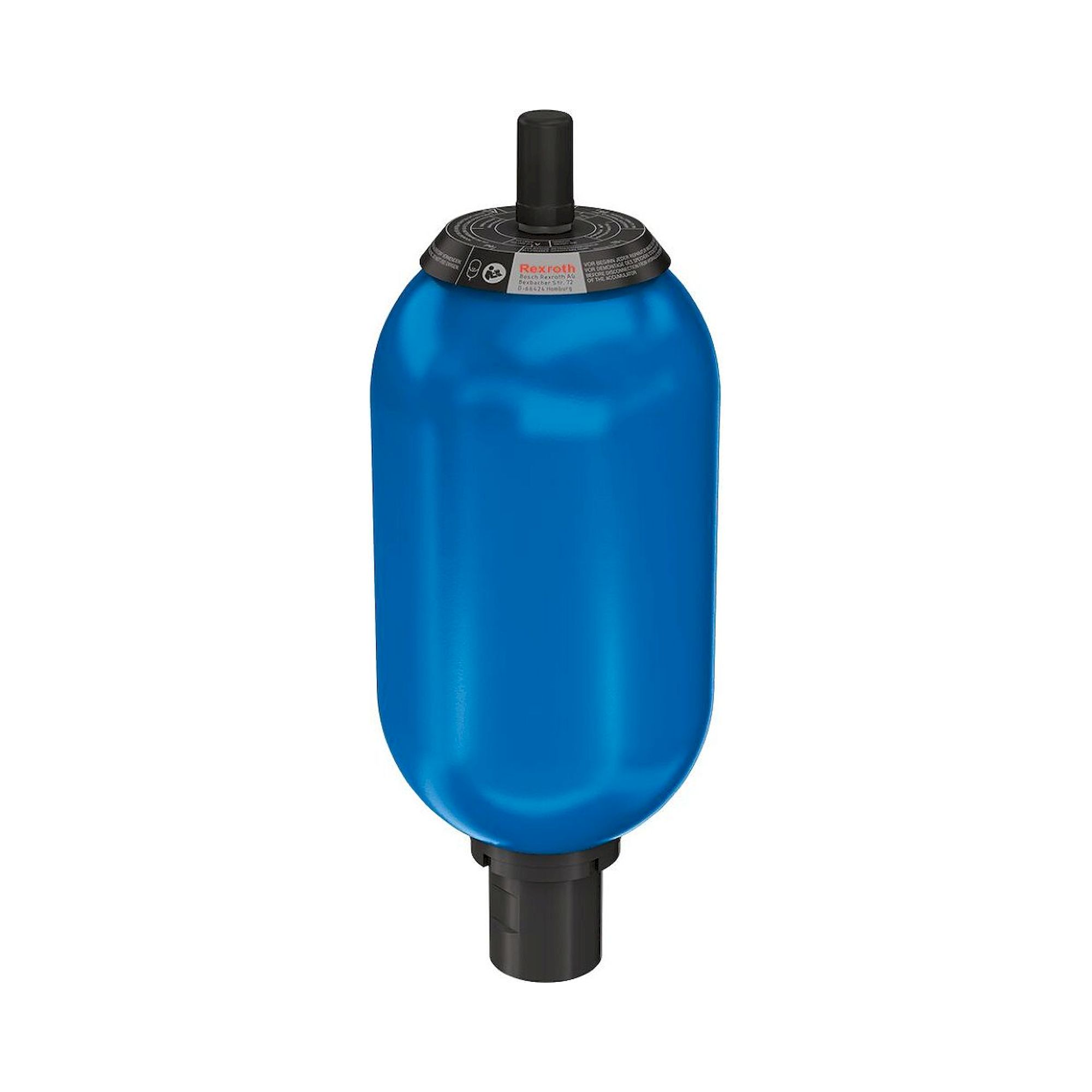

| Storage / Accumulators | Energy storage, pulsation damping | 0.075-100 l, up to 350 bar | Bladder and piston types, EN 14359 |
| Power Units | Complete hydraulic power supply | 0.75-250 kW, reservoir 2-3,000 l | Compact and custom HPU configurations |
| Motors | Rotary drives, winches, conveyors | 1-25,000 rpm, up to 500 bar | A2FM, A6VM, MCR radial-piston series |
| Filter Elements | Return, pressure, suction filtration | 3-25 μm, up to 420 bar | ISO 16889 multi-pass rated elements |
Typical application areas: Industrial press and injection moulding machinery (ISO 4413, DIN 24346), mobile construction and agricultural equipment (SAE J1939, ISO 11783), wind turbine pitch and yaw control (IEC 61400), steel mill and rolling mill hydraulics (EN 13135), marine and offshore deck machinery (DNV-GL, ISO 13849), automotive production lines and transfer presses (IATF 16949, VDA 6.3), aerospace ground support equipment (AS9100), and tunnel boring and mining machinery (ISO 19432).
- Pumpenkombination P2GH5-3X/100+GH5-3X/100REVU2 - Bosch Rexroth R901232414€11,891.37 €9,992.75excl. Shipping Cost
- Pumpenkombination P2GH5-3X/100+GH5-3X/100RRVU2 - Bosch Rexroth R901277771€11,891.37 €9,992.75excl. Shipping Cost
- Pumpenkombination P2GH5-3X/100+GH5-3X/100REVE4 - Bosch Rexroth R901289402€11,891.37 €9,992.75excl. Shipping Cost
- Öl-Luftkühler L613D-0,55-4-240/415 - Bosch Rexroth R900088472€11,888.37 €9,990.23excl. Shipping Cost
- Reihenplatte 2HSR 16 MC1X/H05B438A/G24N9K4M01 - Bosch Rexroth R900742240€11,882.70 €9,985.46excl. Shipping Cost
- Pumpenkombination P2V7/63-71C5+V7/63-71C5RE07+07E4 - Bosch Rexroth R901091889€11,865.41 €9,970.93excl. Shipping Cost
- Hydrozylinder CYH1MP5/180/125/.200A11/X1CLUM D3898 - Bosch Rexroth R900743835€11,861.34 €9,967.51excl. Shipping Cost
- Duplex Filter Duplex Filter PI211063-058+PI23063 - Bosch Rexroth R928054642€11,855.60 €9,962.69excl. Shipping Cost
