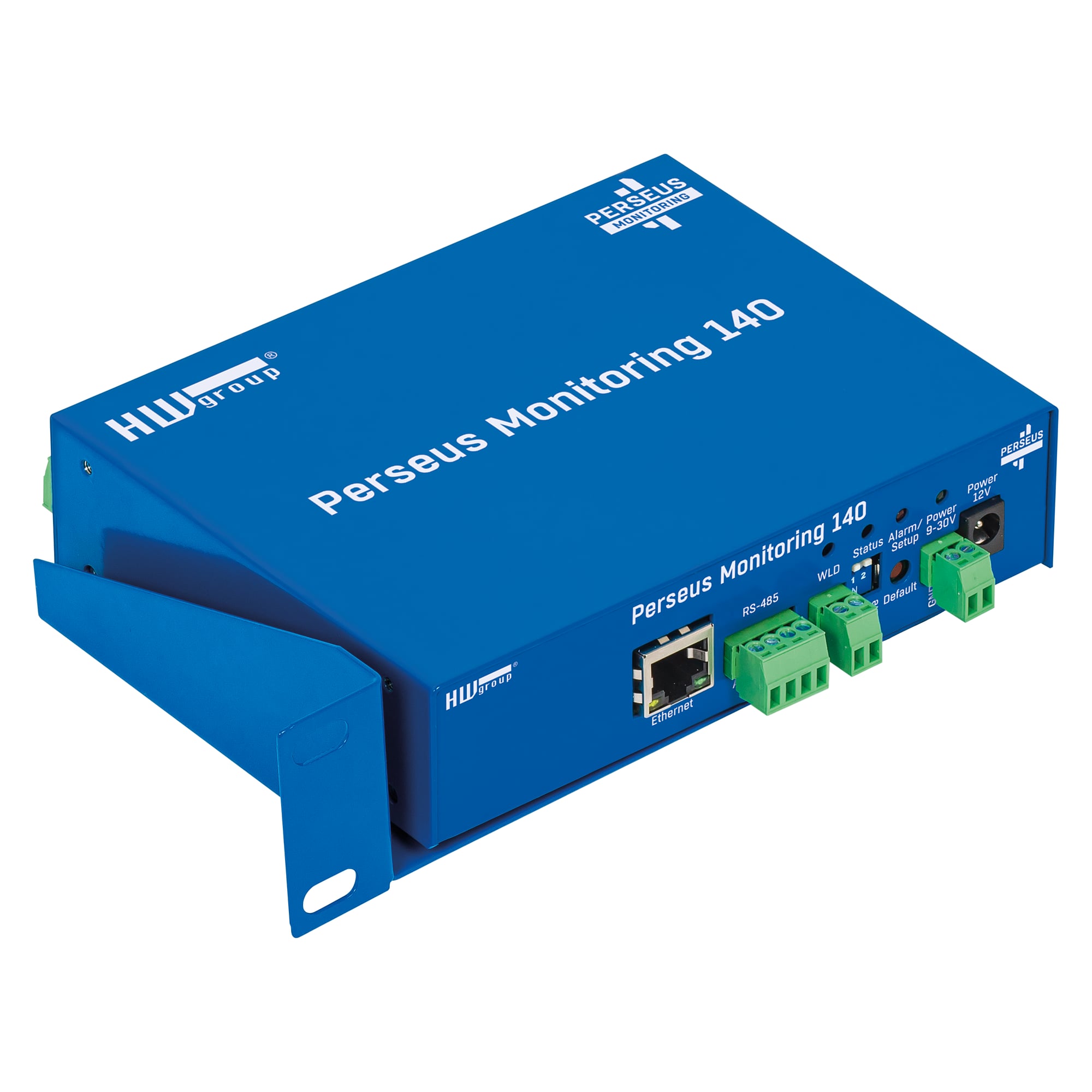

Remote monitoring unit Perseus Monitoring 140, 4 sensor ports, 4 DI, 2 relays, WLD, plain unit - HW group 600843

Monitoring unmanned technical rooms, warehouses or machines calls for a data concentrator that evaluates its own sensors together with third-party meters. Perseus Monitoring 140 handles up to 100 meters with 1000 variables and raises alerts straight from the device by email or SNMP trap.

Benefits

• Many measuring points on one unit: 4 RJ11 ports for 1-Wire UNI sensors (temperature, humidity, voltage, current) plus RS-485 for Modbus/RTU meters.
• Local reaction: 2 relay outputs (max. 50 V, 1000 mA) switch air conditioning, ventilation or doors based on measured values.
• Early leak warning: 1 WLD zone for water sensing cable up to 185 m total length.
• Meters API reads values from other LAN devices such as STE2 R2 or an SNMP-enabled UPS and combines them in alarm conditions.
• Ready for building and network management: SNMP v1 and v3, Modbus/TCP, MQTT, BACnet/TCP and XML.
• Logic on board: local conditions, Lua scripts, calendar and scheduler, 32 MB data logger.

Applications

• Unmanned technical rooms and telco sites
• Server rooms and network cabinets with temperature and door monitoring
• Leak monitoring under air conditioning units and around CDUs and quick disconnects in liquid cooling
• Warehouses, cold rooms, freezers and pharmaceutical storage
• Industrial machine monitoring and greenhouses

Compatibility

• HW group 1-Wire UNI sensors on the RJ11 ports
• HW group WLD sensing cables on the WLD zone
• Meters API: HWg devices such as STE2 R2 via XML, plus devices using SNMP, Modbus/TCP or MQTT
• Portal based on SensDesk technology and the HWg Monitor app for Android and iOS
