Temperature sensor for 19-inch racks measuring -10 to +80 °C, mounted as a 1U element at the front or rear of the cabinet. Two RJ11 sockets on the sensor let you chain several probes on one 1-Wire port. Built for server cabinets and server rooms.

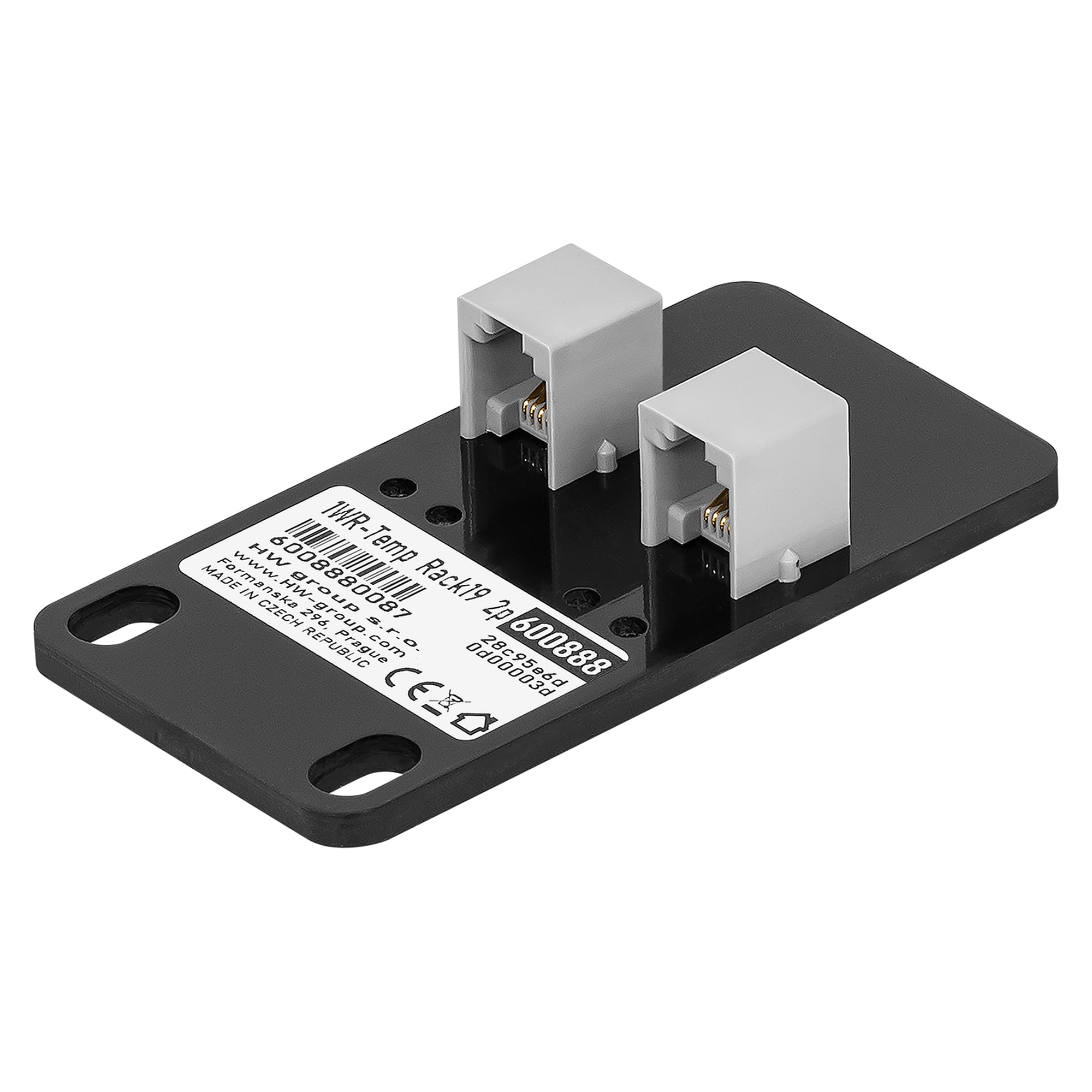

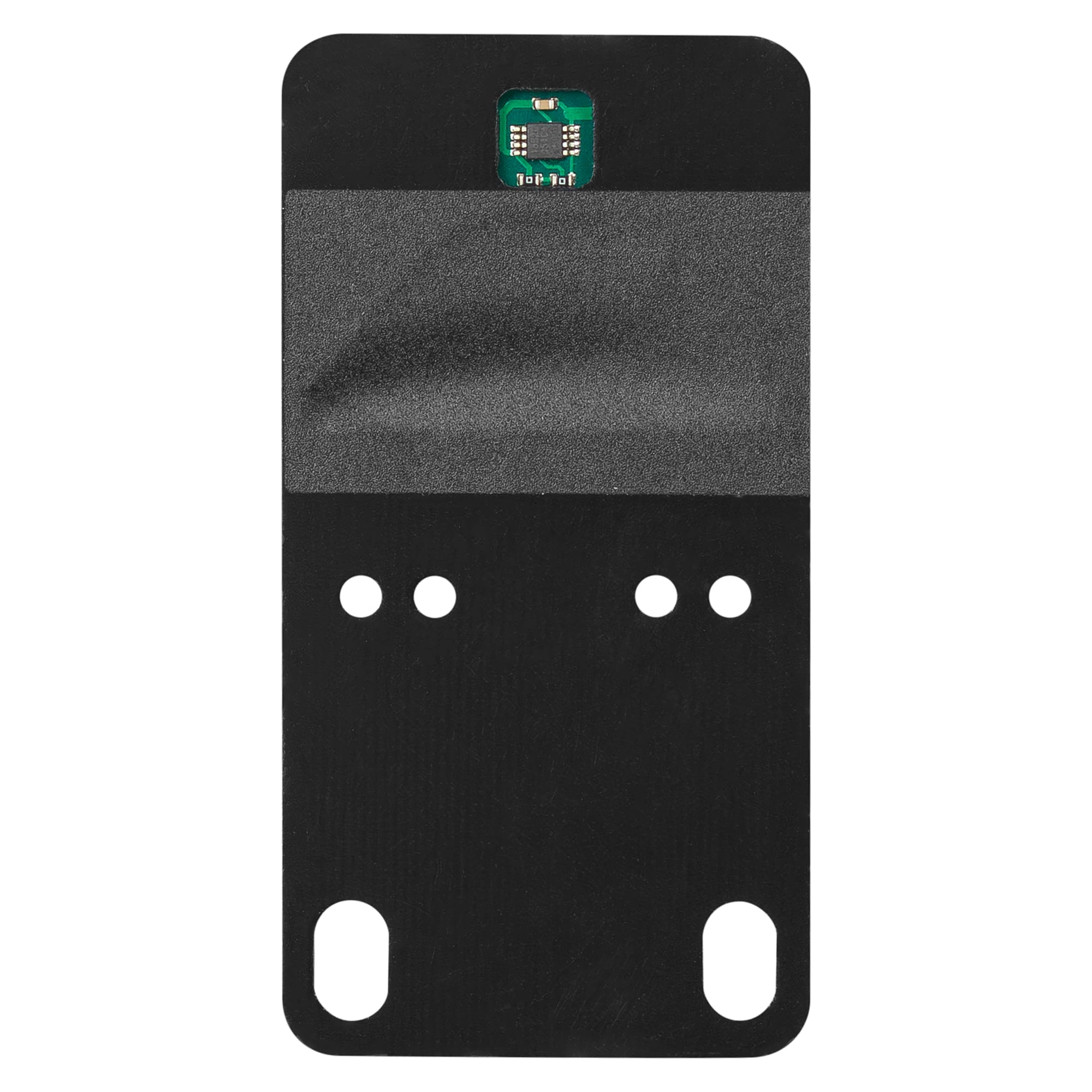

Rack temperature sensor 1WR-Temp Rack19 2p, -10 to +80 °C, 1U, 2x RJ11 for daisy-chaining - HW group 600888
HW GROUP
Original product
Net price (excl. VAT)
€64.10
Item
HWG-600888
Manufacturer no.
600888
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.600888
Country of originCzechia
Customs tariff number90259090
ConditionNew
Artikel
HWG-600888
Frequently Bought Together
Rack temperature is what keeps IT hardware stable, or not. The 1WR-Temp Rack19 2p measures -10 to +80 °C right at the intake or exhaust side of the rack, and its two RJ11 sockets allow further sensors to be daisy-chained.
Benefits
- Rack form factor: fits as a 1U element at the front or back of a 19-inch cabinet, or mounts on a wall.
- Daisy-chaining: 2x RJ11 on the sensor, so several measuring points share one port on the monitoring unit.
- Accuracy: ±0.8 °C across the full -10 to +80 °C range, 0.1 °C resolution.
- Bus powered: 5 V via RJ11 at 1 mA, no extra power supply.
- Compact: 44 x 84 x 19 mm and 27 g.
Technical data
| Measured value | Temperature |
|---|---|
| Measuring range | -10 to +80 °C |
| Accuracy | ±0.8 °C from -10 to +80 °C |
| Resolution | 0.1 °C |
| Sensor technology | Semiconductor, 1 value |
| Interface | 1-Wire, 2x RJ11 for daisy-chaining |
| Cable | 3 m RJ11 cable |
| Power supply | 5 V via RJ11 (1-Wire bus) |
| Consumption | 1 mA |
| Galvanic isolation | No |
| Operating conditions | -10 to +80 °C, 0 to 100 % RH |
| Storage conditions | -30 to +60 °C, 5 to 95 % RH |
| Dimensions (W x H x D) | 44 x 84 x 19 mm |
| Weight | 27 g |
| Mounting | 19-inch rack (1U), desk, wall |
| Protection | IP30 |
| Warranty | 24 months |
| Manufacturer part number | 600888 |
Applications
- Intake and exhaust temperature in 19-inch server cabinets
- Cold aisle and hot aisle monitoring in server rooms
- Network and distribution cabinets in plant rooms
Scope of delivery
- 1WR-Temp Rack19 2p temperature sensor with 2 RJ11 sockets
- 3 m RJ11 cable
Compatibility
- Designed by the manufacturer for Poseidon, Ares, HWg-STE and Perseus units
| Weight | 0.072000 |
|---|---|
| Manufacturer | HW group |
| Hersteller-Nr | 600888 |
| Zolltarifnummer | 90259090 |
| GPSR Herstellerdaten | HW group s.r.o., Rumunská 26, CZ-120 00 Praha 2, www.hw-group.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Czechia |
| Warranty | 2 years |
| Interface | 1-Wire |
| Protection rating | IP30 |
