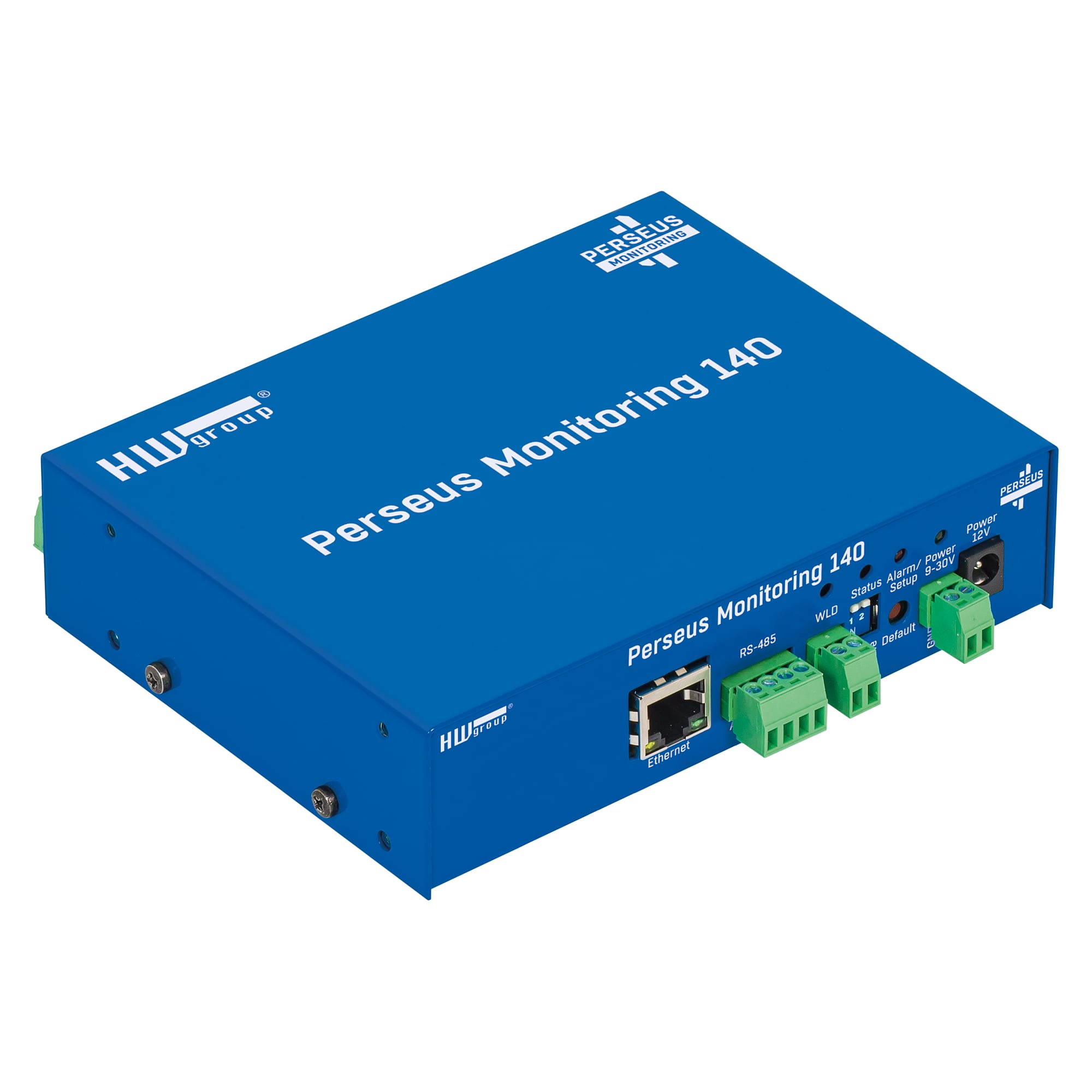

Remote monitoring unit Perseus Monitoring 140 Tset, temperature starter set with adapter and 1WR-Temp - HW group 600867

This set is the quickest route to temperature monitoring of a remote technical room, cold room or warehouse, with the unit, a power adapter and an IP67 sensor in one package. Perseus Monitoring 140 then scales to up to 100 meters with 1000 variables.

Benefits

• Measure from day one: 1WR-Temp IP67 temperature sensor with 3 m cable and 12 V, 1.5 A universal power adapter included.
• Room for more points: 4 RJ11 ports for 1-Wire UNI sensors and RS-485 for Modbus/RTU meters.
• Local reaction: 2 relay outputs (max. 50 V, 1000 mA) switch air conditioning or ventilation based on readings.
• Leak detection: 1 WLD zone for water sensing cable up to 185 m total length.
• Alerts straight from the device by email or SNMP trap, values available via SNMP, Modbus/TCP, MQTT, BACnet/TCP and XML.

Applications

• Cold rooms, freezers and pharmaceutical storage
• Unmanned technical rooms and telco sites
• Server rooms and network cabinets
• Leak monitoring around CDUs and quick disconnects in liquid cooling once a WLD sensing cable is added
• Machine monitoring and greenhouses

Compatibility

• Additional HW group 1-Wire UNI sensors on the RJ11 ports
• HW group WLD sensing cables on the WLD zone
• Meters API: HWg devices such as STE2 R2 via XML, plus devices using SNMP, Modbus/TCP or MQTT
• Portal based on SensDesk technology and the HWg Monitor app for Android and iOS
