Connecting cable WLD-Connecting cable AB, 2 m, for Type A and B sensing cables, with terminator - HW group 600924

A WLD sensing cable only reports reliably when the zone is wired correctly and terminated at the end. The WLD-Connecting cable AB covers both: a 2 m non-sensing lead from the device to the sensing cable, plus the terminator for the end of the zone.

Benefits

• Fits Type A and Type B: Adapts the green terminal block of the WLD zone input to the white locking connector used on the sensing cables.
• Terminator included: Every WLD zone must end with a terminator. Without it the system reports that the sensing cable is disconnected.
• Easy to extend: The 2-wire lead can be cut and extended with ordinary 2-wire cable.
• No alarms from the lead itself: The connecting cable does not detect water, detection starts at the sensing cable.

Applications

• Wiring every WLD zone in data centres, server rooms and plant rooms
• Lead from a device in a 19-inch rack down to the sensing cable under the raised floor
• Leak monitoring around liquid cooling with CDUs and quick-disconnect couplings
• Replacing or building a WLD zone with separately purchased sensing cables

Compatibility

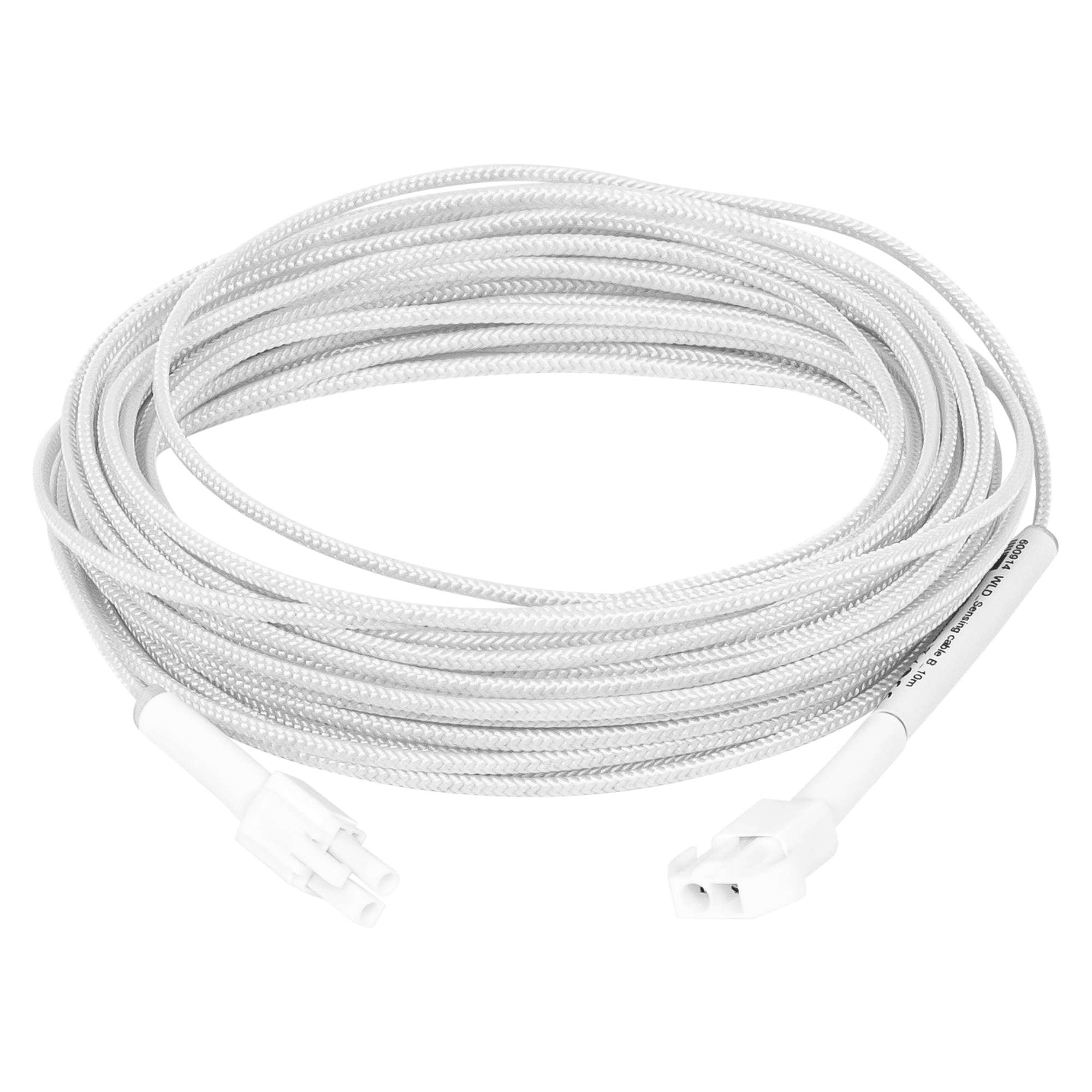

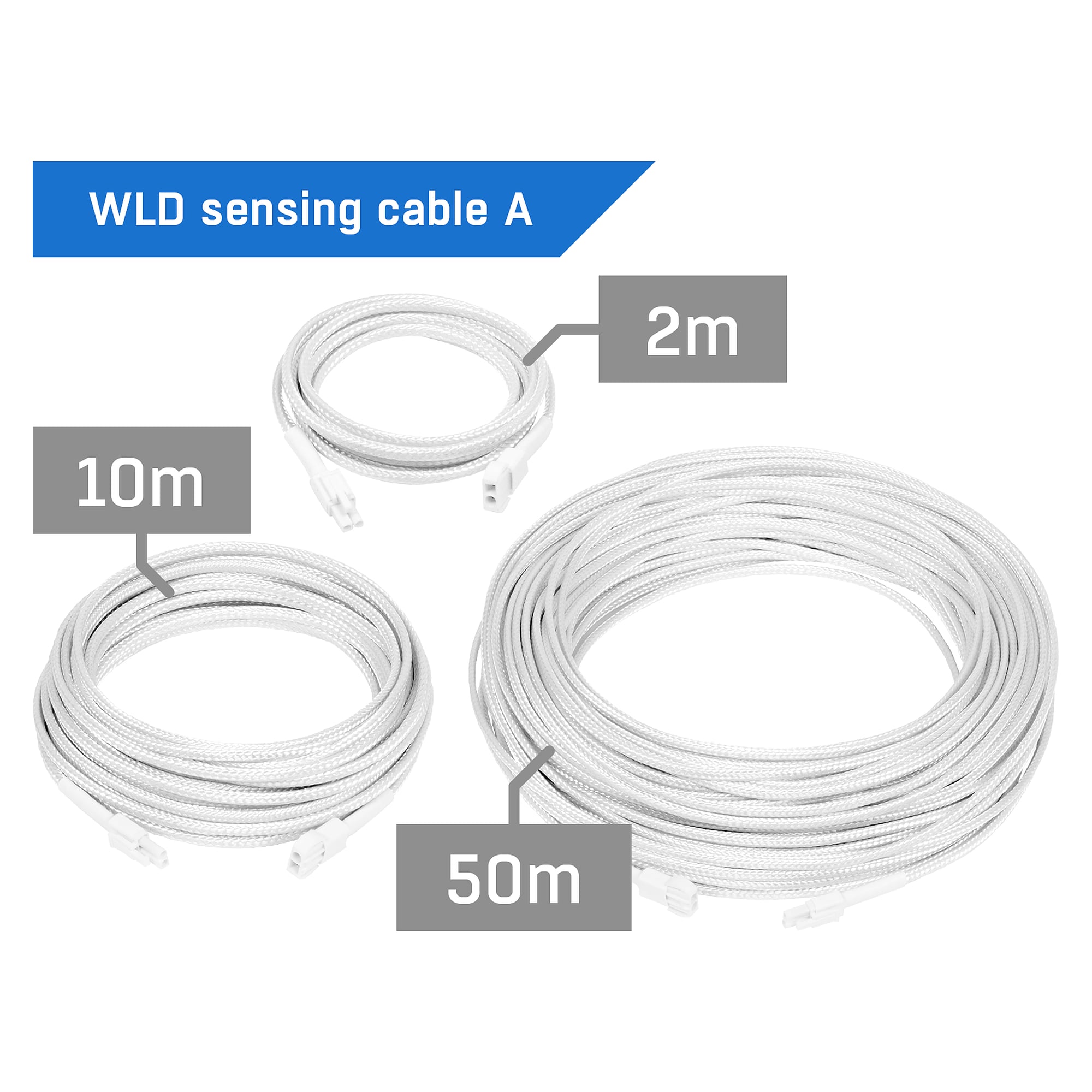

• WLD-Sensing cable A and WLD-Sensing cable B

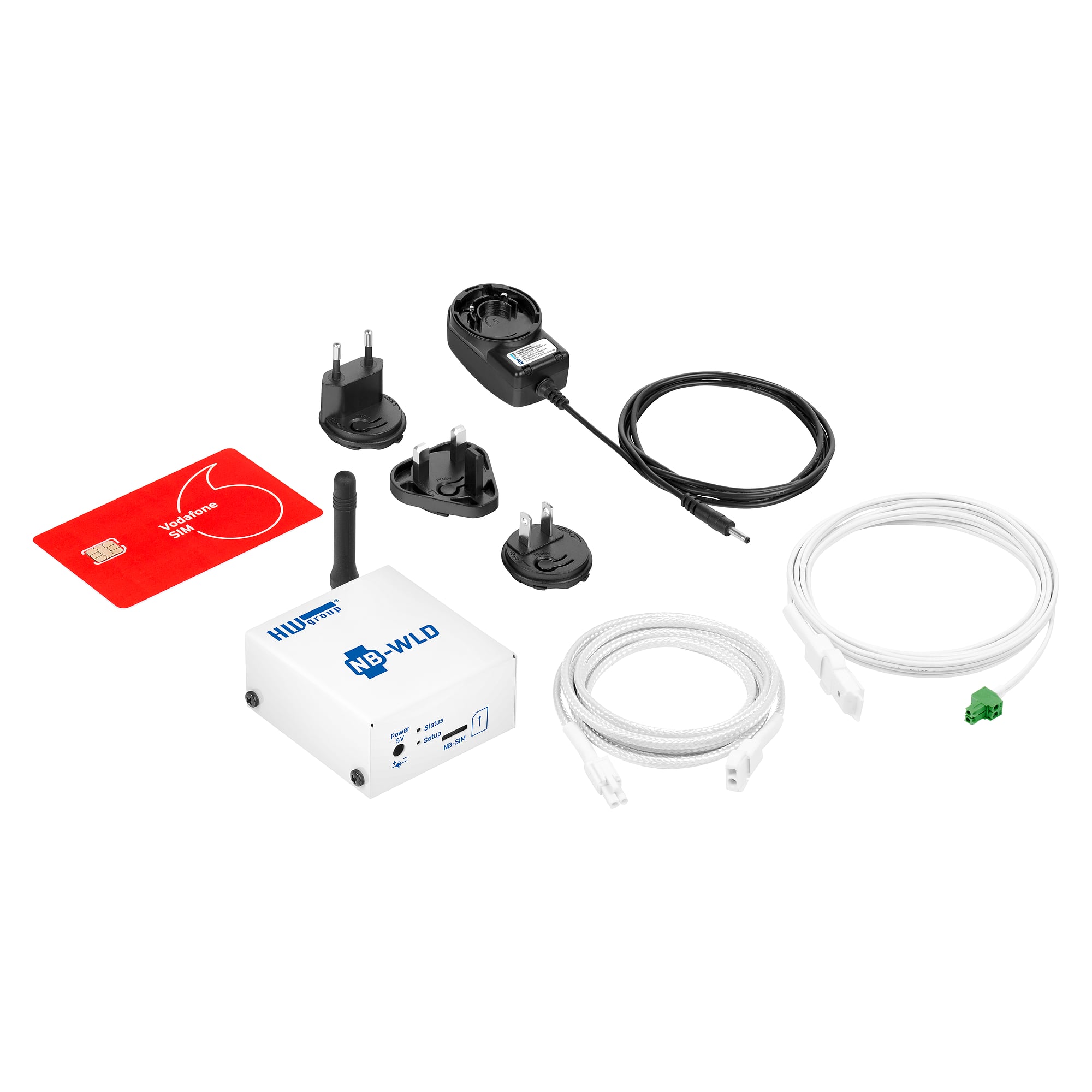

• Devices with a WLD zone input such as WLD2, SD-WLD, Sensor WLD Relay 1W-UNI and NB-WLD
