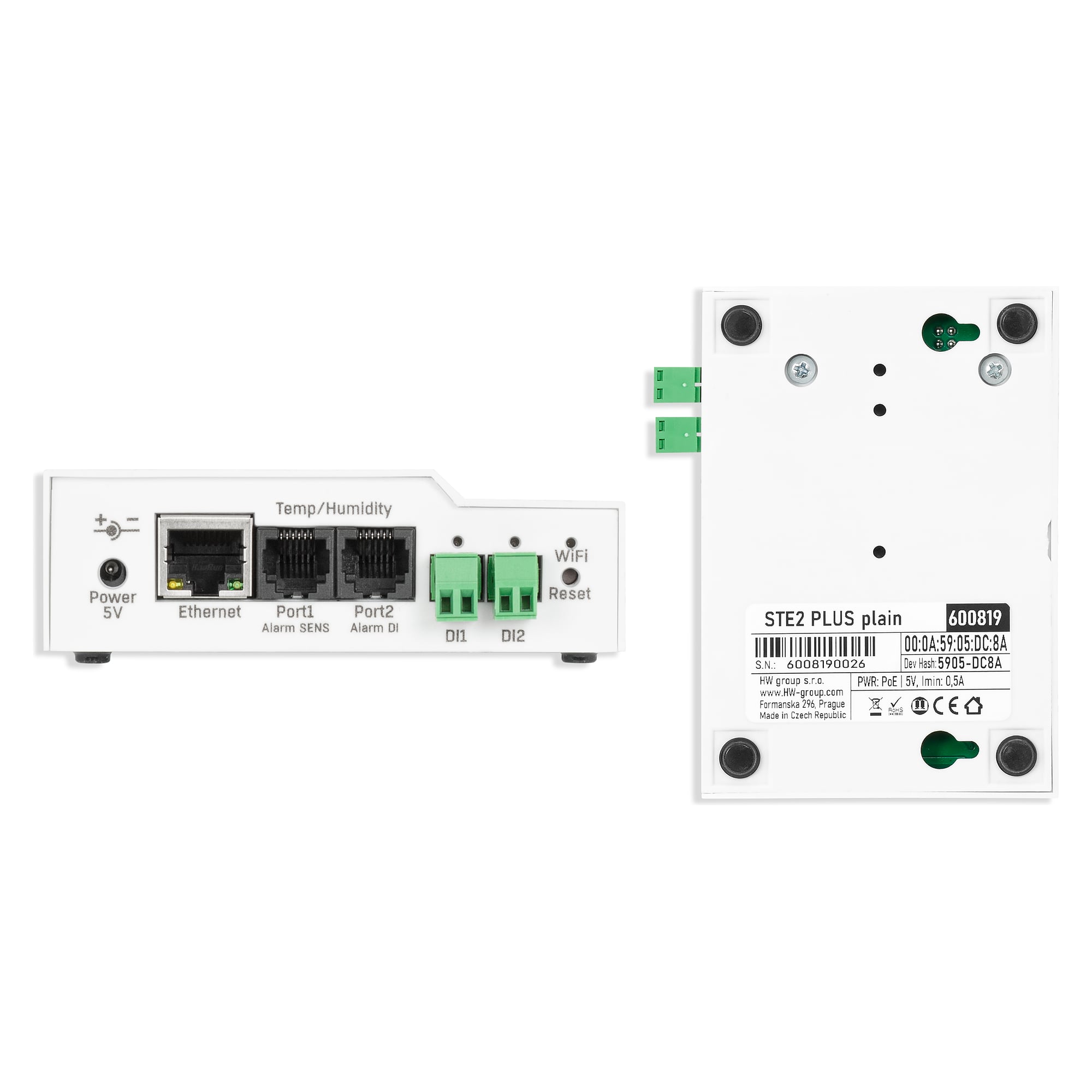

SNMP thermometer STE2 PLUS with 3 m temperature sensor and power adapter, 15 sensor values, 2 DI, SNMPv3, IPv6, PoE - HW group 600832

IT teams feeding environmental data into an existing NMS need secure protocols and plenty of measuring points per device. STE2 PLUS handles up to 15 sensor values, sends SNMP traps to up to 5 destinations and supports SNMPv3 and IPv6.

Benefits

• Ready out of the box: ships with a 3 m IP67 temperature sensor and a power adapter with EU, UK and US plugs.
• Many measuring points: up to 15 sensor values from daisy-chained 1-Wire UNI sensors on 2 RJ11 ports.
• Ready for professional NMS: SNMP v1 and v3, SNMP traps, Syslog, IPv6 and HTTPS with a customer certificate.
• Persistent alarms stay visible: the alarm reminder repeats the alert as long as the condition lasts.
• Flexible connectivity: 10/100 Mbit Ethernet, IEEE 802.11b/g/n WiFi and PoE power at 60 mA.

Technical data

Applications

• Monitoring server rooms, 19-inch racks and remote technical rooms from an SNMP-based NMS
• Leak detection with flood detectors or a WLD relay, for example under raised floors or at liquid cooling installations
• Alerts when refrigerators or freezers fail
• Building monitoring and pharmaceutical storage with portal reports

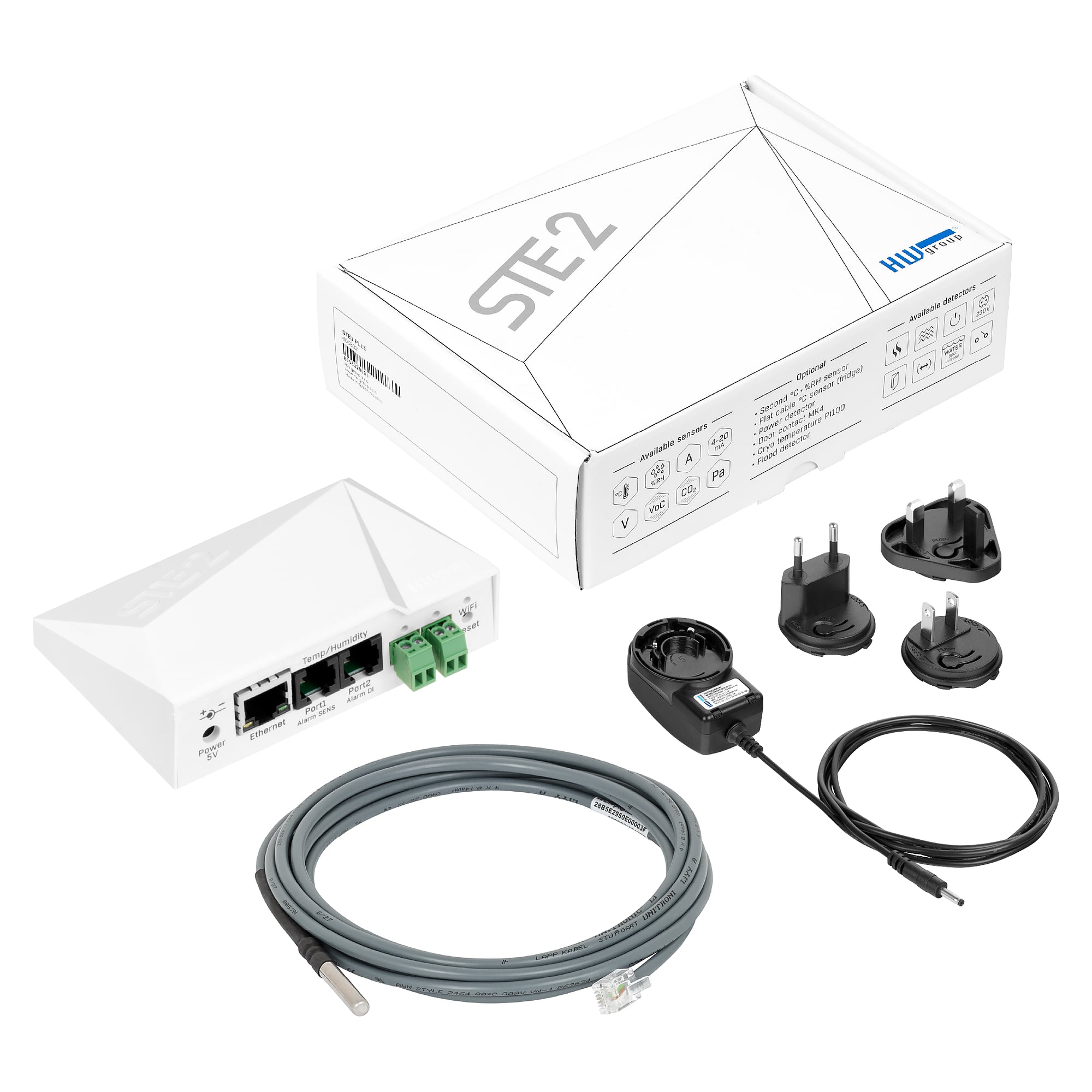

Scope of delivery

• 1x STE2 PLUS in retail package
• 1x temperature sensor with 3 m cable (IP67)
• 1x power adapter with EU, UK and US plugs

Compatibility

• HW group 1-Wire UNI sensors: temperature (indoor, outdoor, cryo, calibrated), humidity, CO2 and VOC, light, AC/DC current, AC voltage 0-230 V, 4-20 mA converter

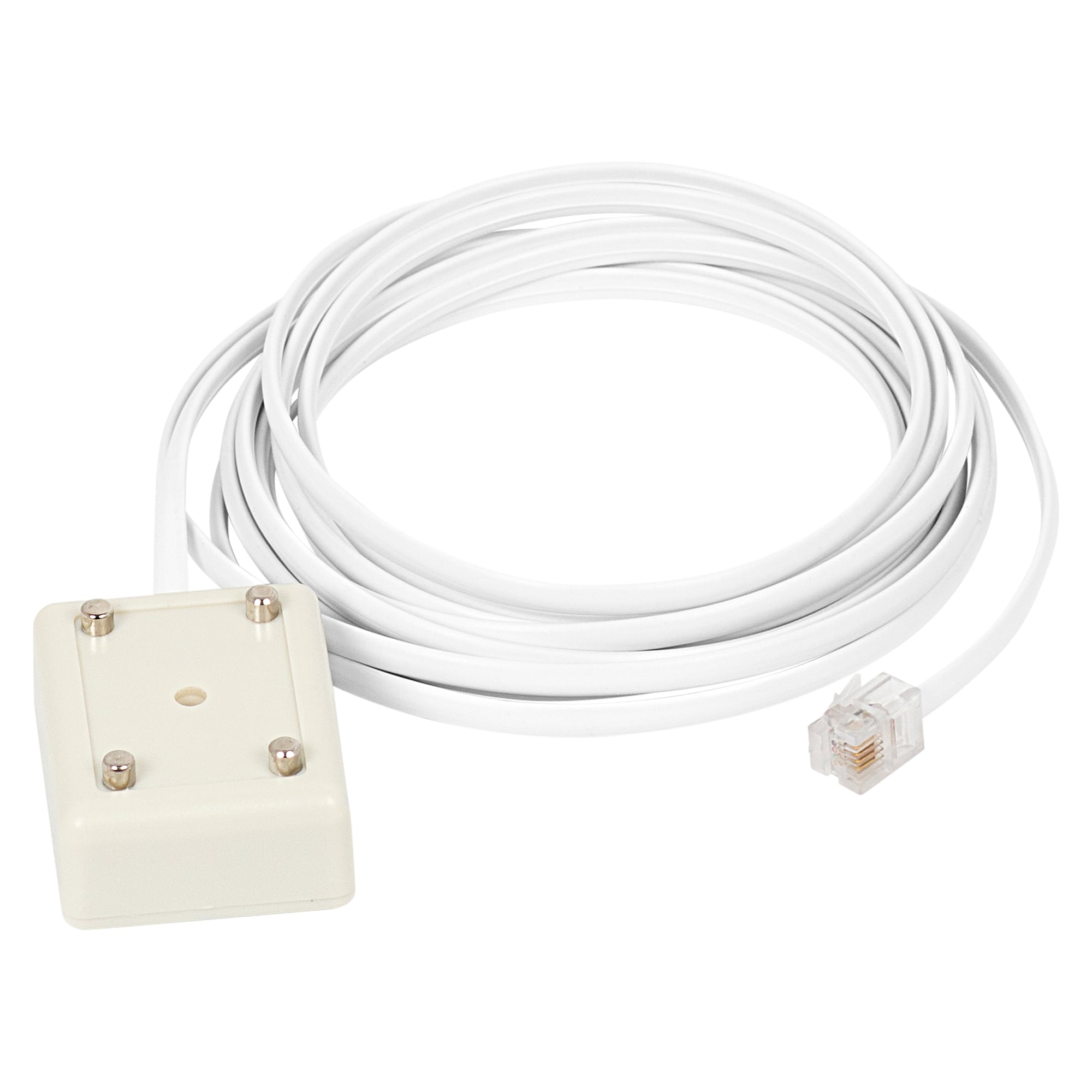

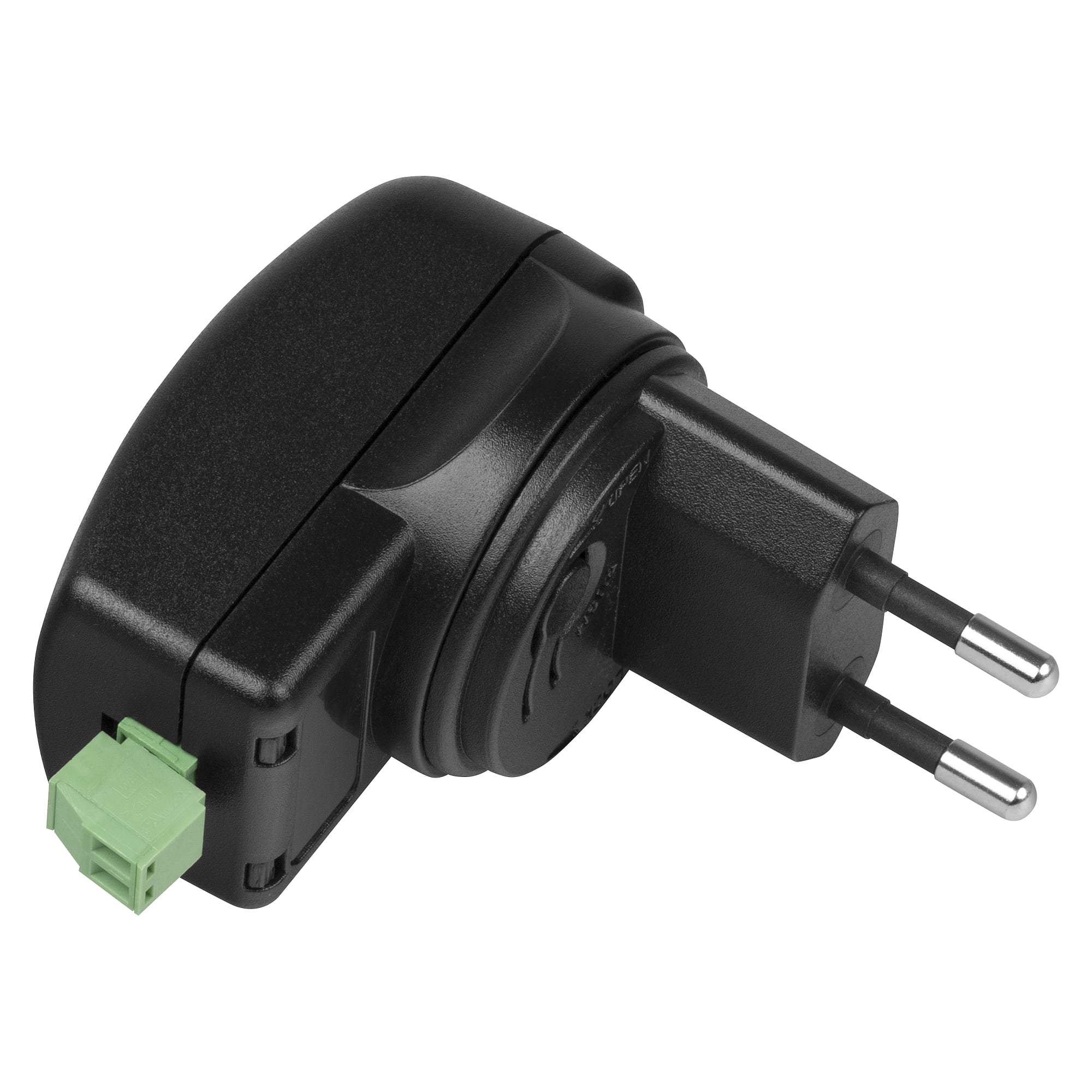

• Detectors: water flood, WLD relay with sensing cable, airflow, door contact, PIR motion, gas leak, mains presence 110/230 V, vibration
• SMS-GW3 and SMS-GW3 LTE gateways, HWg-cloud.com and SensDesk portals, HWg Monitor app
