Monitoring bundle STE2 PLUS SMS-GW with SMS-GW3 LTE gateway for SMS and call alerts, 3 m temperature sensor - HW group 600855

When a server room overheats, an email is often not enough to reach the on-call engineer. This bundle combines STE2 PLUS, which handles up to 15 sensor values, with the SMS-GW3 LTE gateway that sends SMS and voice call alerts without a portal or extra software.

Benefits

• SMS and calls without a portal: STE2 PLUS and SMS-GW3 LTE talk directly over the local network (Box-2-Box).
• One gateway for the whole network: other HW group devices on the same LAN can use SMS-GW3 LTE as their alert path, and SNMP-based software can use it too.
• Many measuring points: up to 15 sensor values on 2 RJ11 ports plus 2 digital inputs on STE2 PLUS.
• Ready for professional NMS: SNMP v1 and v3, SNMP traps, Syslog, IPv6 and HTTPS with a customer certificate.

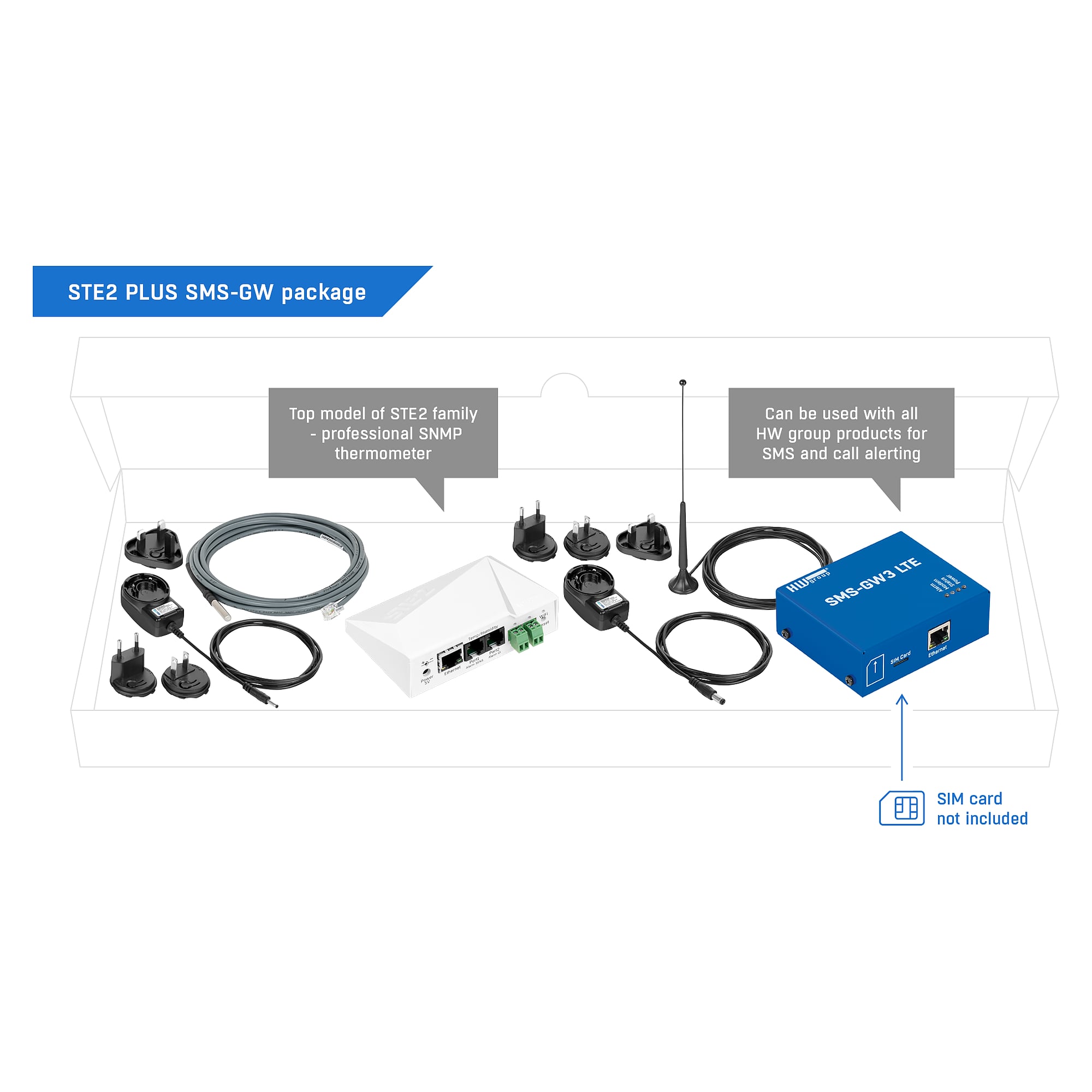

• Fully equipped: 3 m IP67 temperature sensor, external antenna for the gateway and 2 power adapters with EU, UK and US plugs.

Applications

• Remote technical rooms and server rooms with SMS and call alerts to on-call staff
• Central SMS gateway for several HW group devices in a data center, for example leak monitoring at liquid cooling installations
• SNMP and email alerting with SMS as a fallback path
• Monitoring of refrigerators and freezers

Compatibility

• SMS-GW3 LTE as alert gateway for HW group devices on the same LAN and for SNMP-based software
• HW group 1-Wire UNI sensors on STE2 PLUS: temperature, humidity, CO2 and VOC, light, AC/DC current, AC voltage 0-230 V, 4-20 mA converter
• Detectors: water flood, WLD relay with sensing cable, airflow, door contact, PIR motion, gas leak, mains presence 110/230 V, vibration
