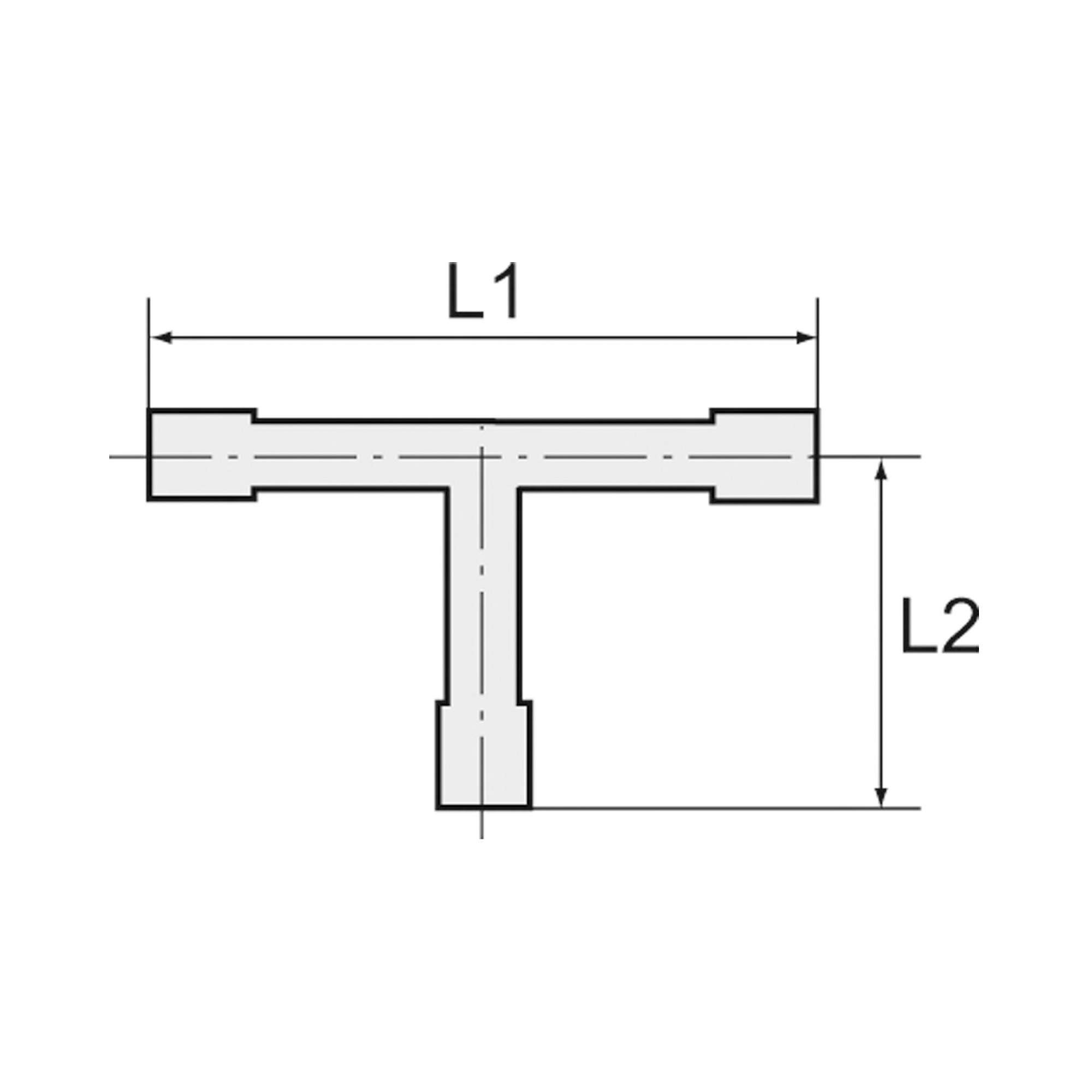

T-hose fitting supports, for hose I.D. 3 mm, brass and POM - Riegler 133410

T-hose fitting supports, for hose I.D. 3 mm, Temperature range -10 °C to 60 °C, brass and POM Tube connectors for polyamide hoses and polyurethane hoses made of brass CW617N and acetal copolymer (POM).

Technical data

Standards and origin

• Customs tariff number: 74122000
• Country of origin: CN

About Tee hose connectors

T-shaped hose connectors are pushed into the hose ends and secured with hose clamps, splitting the line into two outlets. They are the straightforward choice for soft hose runs where a push-in fitting with collet is not needed. The group covers hose inside diameters from 3 to 25 mm at a working pressure up to 10 bar.

What matters when choosing

• For hose I.D.: 3 to 25 mm. The figure has to match the clear bore of the hose, because only then does the connector sit tight and the clamp seal.
• Reduction: besides connectors with three equal ports there are reducing versions with a different branch size, for example 8/6/8 mm or 12/10/12 mm. The features hose I.D. 1 and hose I.D. 2 state the combination.
• Material: acetal copolymer (POM), brass CW617N or a combination of both. POM is light, tough and abrasion resistant, brass takes higher mechanical loads.
• Working pressure: max. 10 bar throughout the group. Where more is required, a screwed fitting takes the place of the hose clamp.
• Temperature: -40 °C to 80 °C is documented for the plastic versions, and part of the range reaches 90 °C medium temperature. That sets the limit for warm circuits.

Typical applications

• Branch points in coolant and lubricant lines on machine tools
• Low pressure air lines in soft hose assembled with hose clamps
• Venting and breather lines on tanks and enclosures
• Test rigs and laboratory setups with frequently changed hose routing
• Maintenance work where an existing hose line is branched afterwards

The 31 items come in acetal copolymer (POM), in brass CW617N and as a combination of both materials. Production is in Germany and China.
