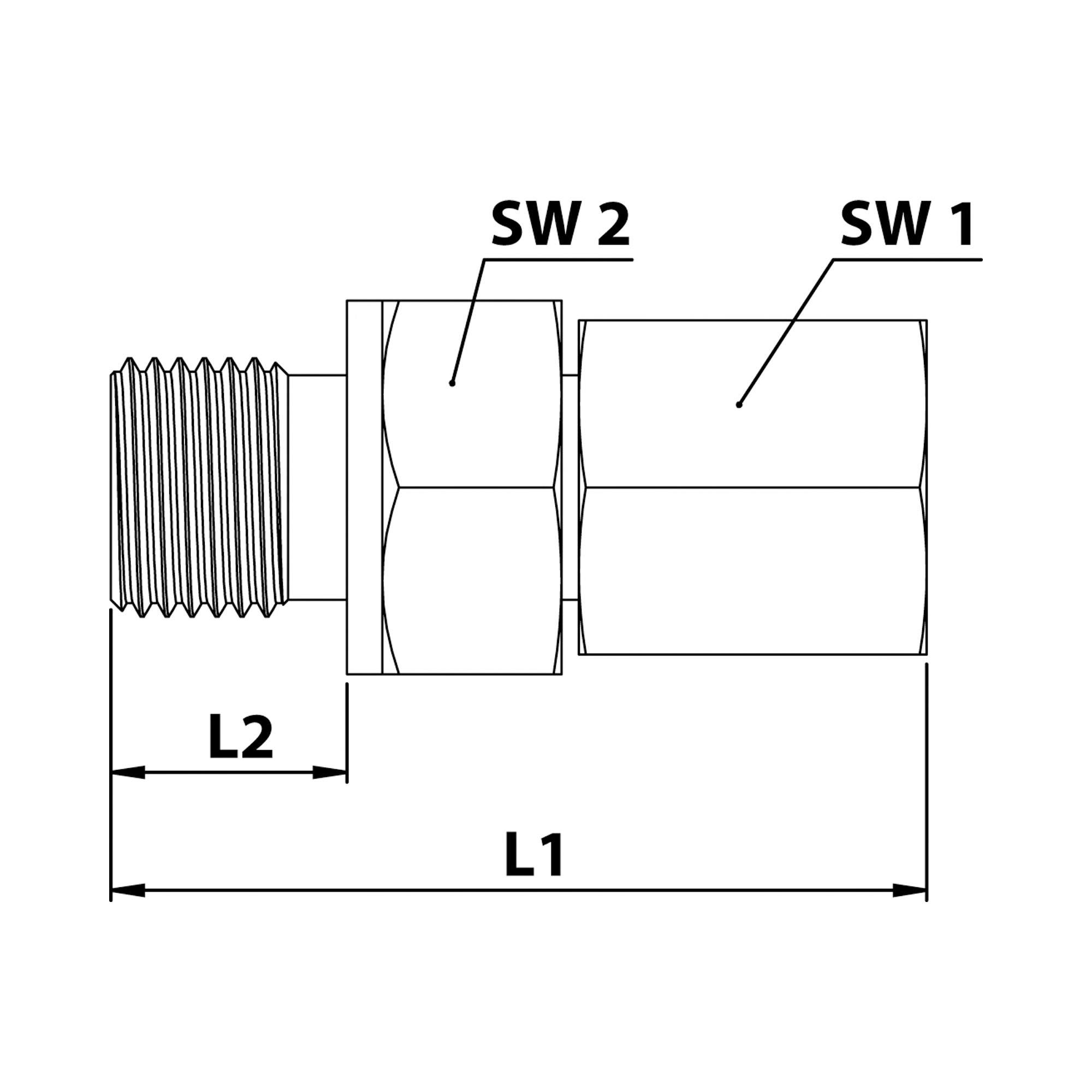

Adjustable male connector, G3/8o., Pipe ext.Ø10, galvanised steel - Riegler 158899

Adjustable male connector, with cone seal, G3/8 o., Pipe exterior Ø 10, PN max. 630, a/f1 22, a/f2 22, galvanised steel

Technical data

Standards and origin

• Customs tariff number: 73079910
• Country of origin: IT

About Union

Straight screw-in fittings connect a tube to a threaded port on the component and carry the full system pressure. The series covers tube outside diameters from 6 to 28 mm, with nominal pressure ratings from PN 160 to PN 630.

What matters when choosing

• Tube outside diameter, 6 to 28 mm, has to be matched exactly, because the cutting ring and the nut are made for that one diameter.
• The screw-in thread is either BSP from G 1/8 male to G 1 male or metric from M12x1.5 male to M33x2.0 male. It follows the port on the valve block, cylinder or power unit.
• Nominal pressure runs from 160 to 630 bar and differs by size. What counts is the highest pressure occurring in the circuit, not the nominal working pressure.
• Materials are galvanised steel and stainless steel 1.4571, both to DIN 2353. Stainless is used in corrosive surroundings or with aggressive media.
• Part of the series carries an FKM seal. Those versions seal on the sealing cone rather than through the thread alone.

Typical applications

• Tube runs on hydraulic power units and valve blocks
• Connecting hydraulic cylinders on presses and machine tools
• Piping control blocks in special purpose machinery
• Lubrication and oil lines at high pressure levels
• Hydraulic test rigs and measuring sections

Both materials, galvanised steel and stainless steel 1.4571, are made to DIN 2353. 14 of the 96 items additionally carry an FKM seal.
