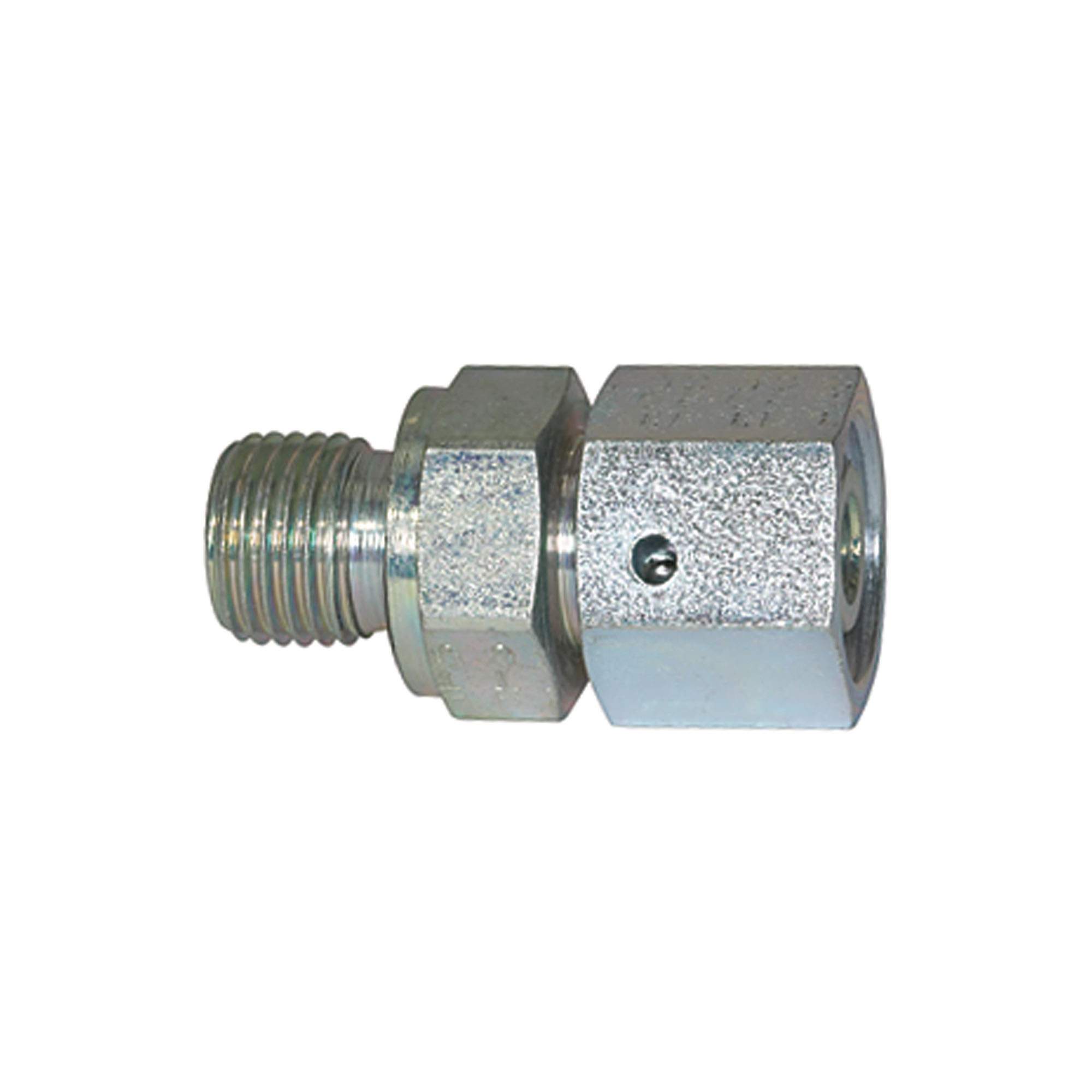

Adjustable straight screw-in fitting with sealing cone, galvanised steel, M10x1.0 to M33x2.0 male thread, OD 6 to 28 mm, PN 160 to 315 bar - Riegler

Riegler ✓ Original product Brand new

The adjustable straight screw-in fitting in galvanised steel screws into the port with its male thread and takes the tube via cutting ring and union nut. Available for tube OD 6, 8, 10, 12, 15, 18, 22 and 28 mm with male thread M10x1.0 to M33x2.0, nominal pressure PN 160 to 315 bar.

Net
As low as €5.92
excl. VAT
Item RGL-K1563
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Riegler adjustable straight screw-in fitting in galvanised steel comes for tube OD 6, 8, 10, 12, 15, 18, 22 and 28 mm and male thread M10x1.0 to M33x2.0 at PN 160 to 315 bar. It screws into the port with its male thread and takes the tube via cutting ring and union nut.

Benefits

  • Tube sizes 6, 8, 10, 12, 15, 18, 22 and 28 mm in one design
  • Nominal pressure PN 160 to 315 bar depending on size
  • Galvanised steel, made to DIN 2353
  • Thread M10x1.0 to M33x2.0

Applications

For tube systems with cutting ring fittings to DIN 2353 with tube OD 6, 8, 10, 12, 15, 18, 22 and 28 mm up to PN 315 bar. Select the matching size by tube OD and thread.

Technical data

Materialgalvanised steel to DIN 2353
Connection typesealing cone with union nut
Tube OD6, 8, 10, 12, 15, 18, 22 and 28 mm
ThreadM10x1.0, M12x1.5, M14x1.5, M16x1.5, M18x1.5, M22x1.5, M26x1.5, M33x2.0 (male thread)
Union nut threadM12x1.5, M14x1.5, M16x1.5, M18x1.5, M22x1.5, M26x1.5, M30x2.0, M36x2.0
Nominal pressurePN 160 and 315 bar
Width across flats 114 to 41 mm
Width across flats 214 to 41 mm
Dimension L132.5 to 53.0 mm
Dimension L28.0 to 18.0 mm
ManufacturerRiegler
GPSR HerstellerdatenRiegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Thread typeExternal thread
NormDIN 2353
