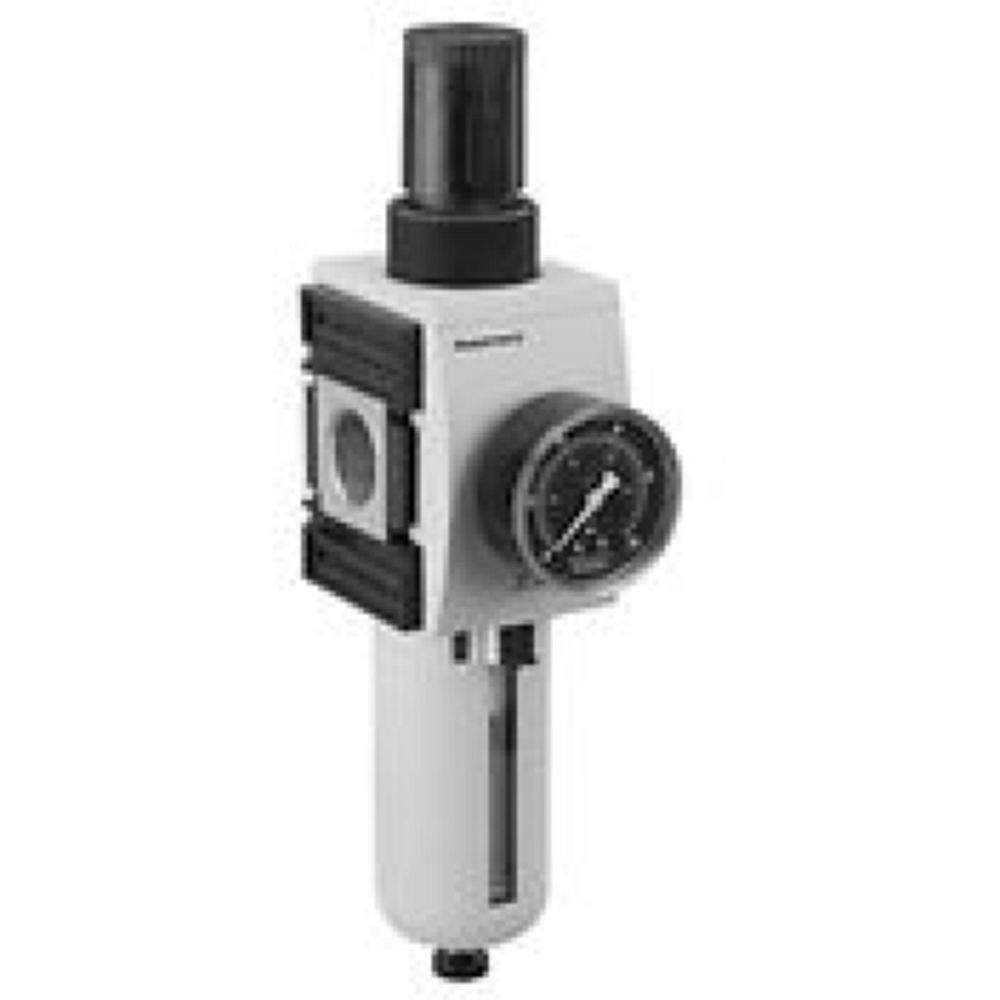

Aventics Filter pressure regulator, Series AS5-FRE R412009198 AS5-FRE-G100-GAN-100-PBP-AC-05.00

Name: Aventics Filter pressure regulator, Series AS5-FRE R412009198 AS5-FRE-G100-GAN-100-PBP-AC-05.00
Brand: Aventics
SKU: AVE-R412009198
Price: 338.45 EUR
Availability: InStock

€338.45

Excl. 19% VAT , excl. Shipping Cost

Article

AVE-R412009198

Führende Marken der Fluidtechnik:

Manufacturer Nr.

R412009198

AS5-FRE-G100-GAN-100-PBP-AC-05.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Aventics Filter pressure regulator, Series AS5-FRE R412009198 AS5-FRE-G100-GAN-100-PBP-AC-05.00
€338.45
Excl. 19% VAT , excl. Shipping Cost
Aventics Filter pressure regulator, Series AS5-FRE R412009222 AS5-FRE-G100-GAN-100-PBP-AO-40.00
€320.52
Excl. 19% VAT , excl. Shipping Cost
Aventics 2/2-directional valve, electrically operated, Series AS5-SOV R412009301 AS5-SOV-G100-2/2-024-FORMC
€377.10
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Downloads

Parts	Filter pressure regulator
Reservoir	reservoir, polycarbonate, with PA protective guard
Port	G 1
Nominal flow Qn	14000 l/min
Filter porosity	5 µm
Condensate drain	fully automatic, closed without pressure
Pressure gauge	without pressure gauge
Working pressure min.	1.5 bar
Working pressure max	16 bar
Min. ambient temperature	-10 °C
Max. ambient temperature	50 °C
Regulation range min.	0.5 bar
Regulation range max.	10 bar
Lock type	for padlocks
Type	1-part
Type	Can be assembled into blocks
Pressure supply	single
Mounting orientation	vertical
Regulator type	Diaphragm-type pressure regulator
Regulator function	with relieving air exhaust
Max. Internal air consumption	1.5 l/min
Filter element	exchangeable
Filter reservoir volume	87 cm³
Max. achievable compressed air class acc. to ISO 8573-1:2010	6 : 7 : -
Medium	Compressed air, Neutral gases

This modular versatile series allows to combine a huge range of different functions
The compact dimensions save space
Reduced energy consumption
Lightweight
Easy-to-use design
Reliable and safe due to dedicated safety components
Simple assembly and low maintenance efforts

More Information
Manufacturer Nr.	R412009198
Manufacturer	Aventics
GPSR manufacturer information	AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com
Weight	1.200000
HS-Code	84818059
Article authenticity	Original product
Condition of article	New
