EMC SGM 32/150. Guide cylinder, with slide bearing, pistons 32mm, stroke 150mm

Name: EMC SGM 32/150. Guide cylinder, with slide bearing, pistons 32mm, stroke 150mm
Brand: E.MC
SKU: FL-SGM-32/150
Price: 227.17 EUR
Availability: InStock

€227.17

Excl. 19% VAT , excl. Shipping Cost

Article

FL-SGM-32/150

Manufacturer: E.MC

Manufacturer Nr.

SGM 32/150

Guide cylinder, with slide bearing, pistons 32mm,stroke 150mm

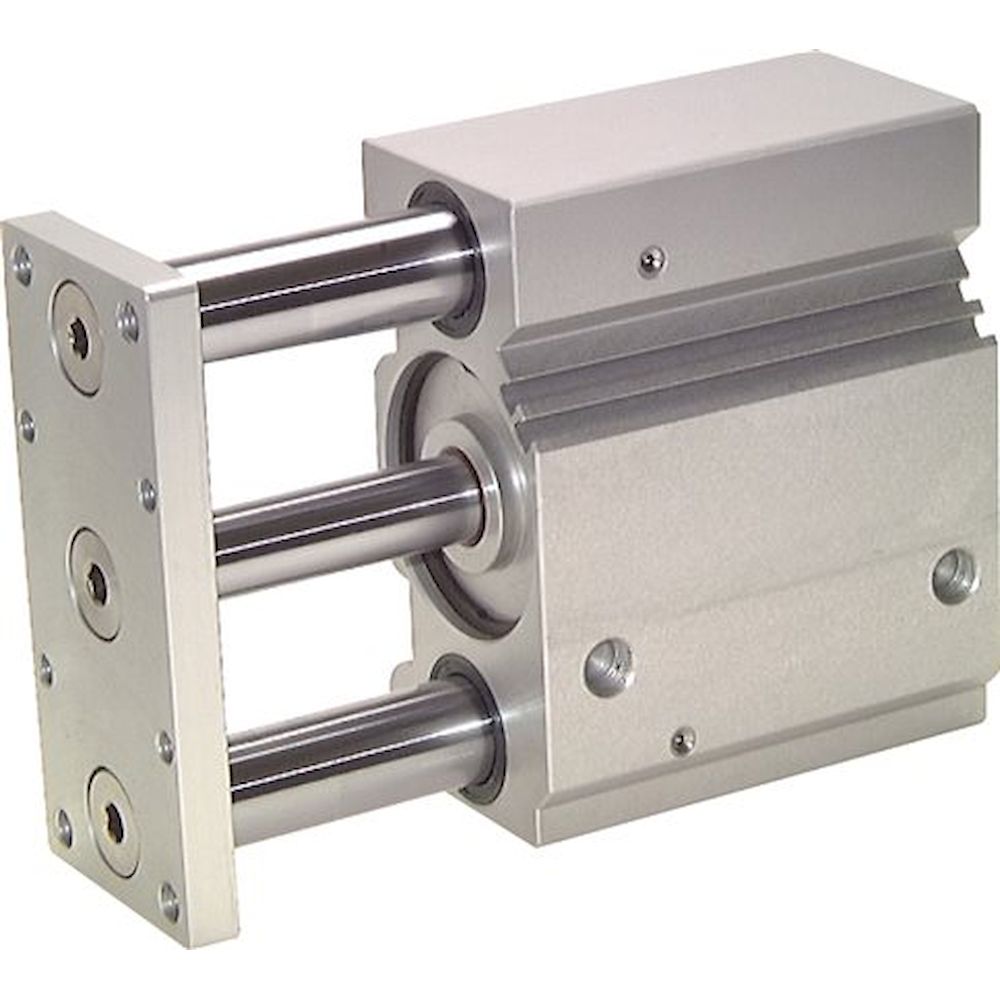

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: EMC SGM 32/150. Guide cylinder, with slide bearing, pistons 32mm, stroke 150mm
€227.17
Excl. 19% VAT , excl. Shipping Cost

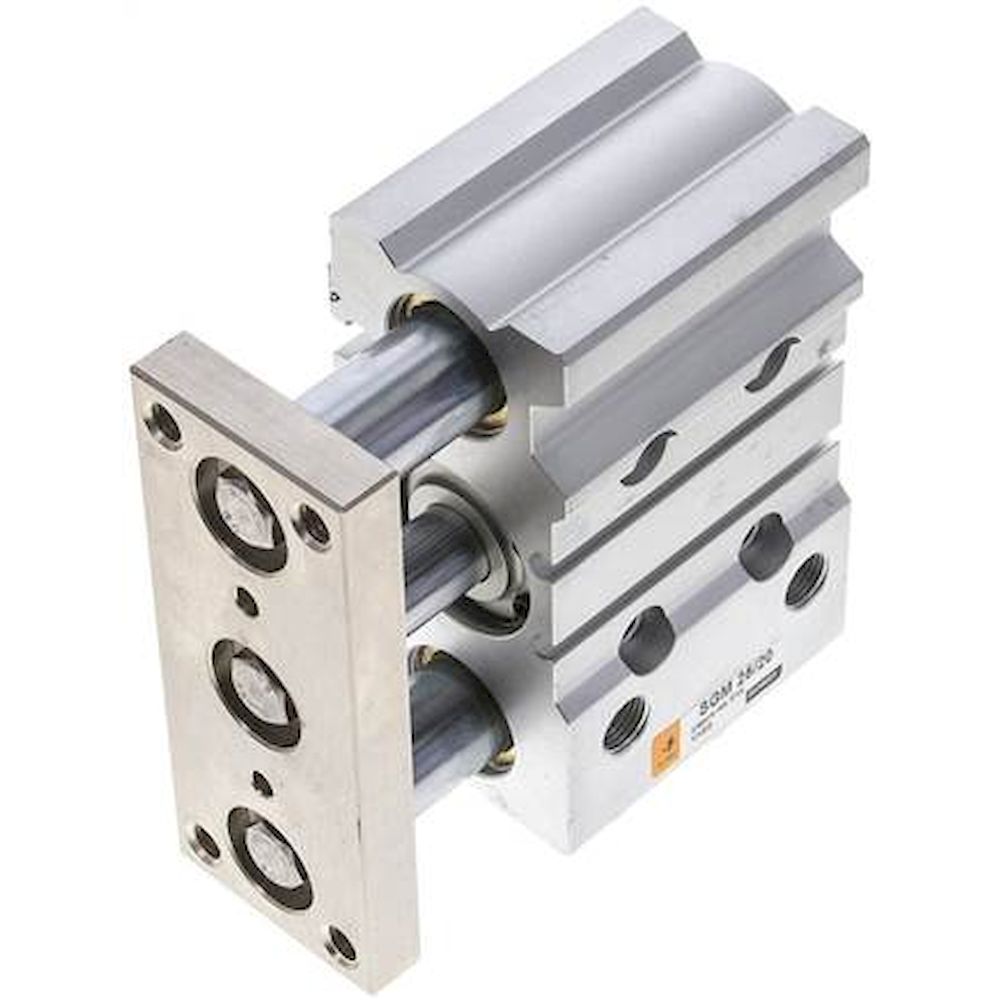

EMC SGM 25/20. Guide cylinder, with slide bearing, pistons 25mm, stroke 20mm
€113.74
Excl. 19% VAT , excl. Shipping Cost

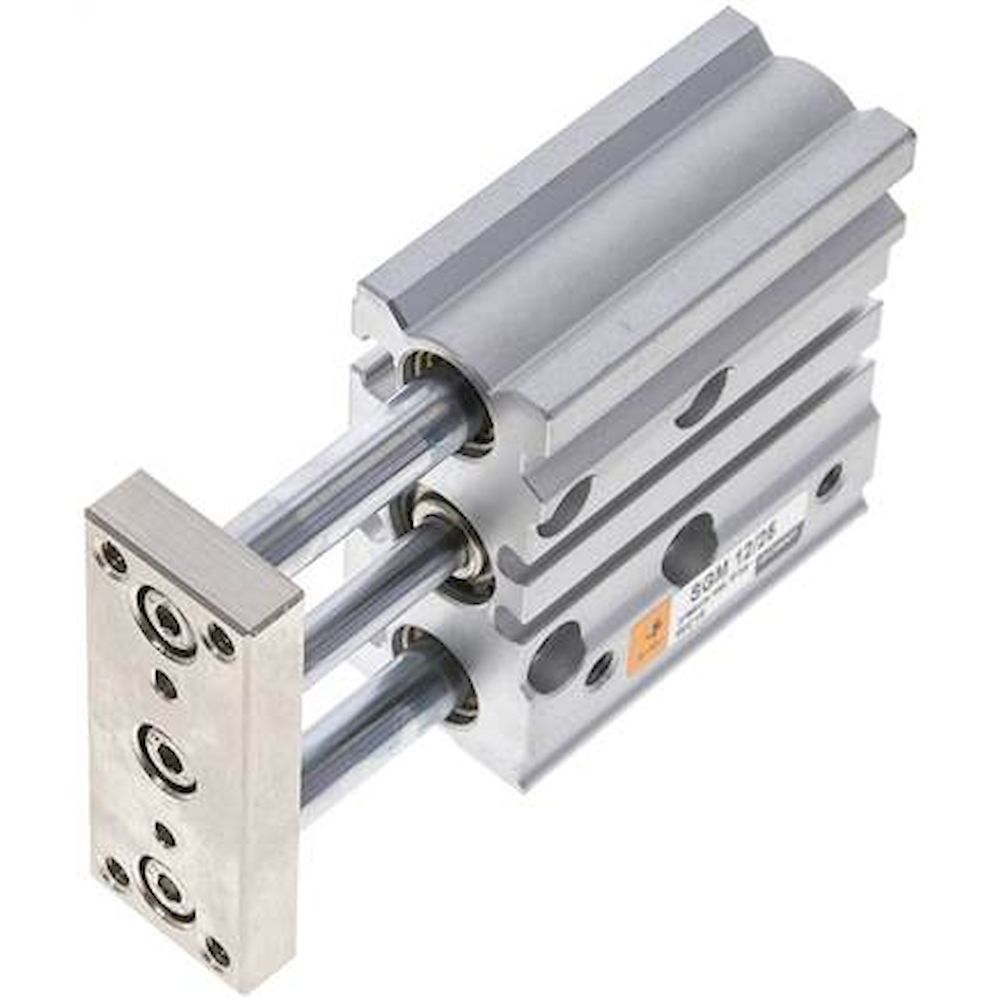

EMC SGM 12/25. Guide cylinder, with slide bearing, pistons 12mm, stroke 25mm
€77.55
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM

Piston diameter [mm]	32
Stroke [mm]	150
Version	with slide bearing
G (compressed air port)	G 1/8"
Repair sets	SGM 32 REP
lateral force permissible [N]	127
permissible torque at the end-plate [Nm]	3,98
C [mm]	37,5
D [mm]	20
D1 [mm]	16
E [mm]	58,5
FA [mm]	12
FB [mm]	22
GA [mm]	9,0
GB [mm]	12,5
GC [mm]	15,0
GD [mm]	7,0
GE [mm]	12,5
H [mm]	112
J [mm]	34,0
K [mm]	83
L1 [mm]	6
L2 [mm]	3
M	M 8
M1 [mm]	16
ML [mm]	20
MM	M 8
N [mm]	21
NN [mm]	124
P [mm]	6,9
PA (+0,03 / -0) [mm]	4
PP [mm]	4,5
Q [mm]	30
QL [mm]	96
R (± 0,02) [mm]	42
RR [mm]	78
T [mm]	11.0 (7.5 deep)
V [mm]	63
VA [mm]	10,5
VB [mm]	6,5
VC [mm]	5,5
VD [mm]	3,5
VE [mm]	9,5
W [mm]	48
WA [mm]	98
WB [mm]	34
WL [mm]	110
WW [mm]	44
