EMC SGM 25/200. Guide cylinder, with slide bearing, pistons 25mm, stroke 200mm
€188.56
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SGM-25/200
Manufacturer Nr.
SGM 25/200
Guide cylinder, with slide bearing, pistons 25mm,stroke 200mm
Frequently Bought Together
-
This Item:
€188.56Excl. 19% VAT , excl. Shipping Cost
-
Guide cylinder, with ball bushing, pistons 50mm,stroke 50mm
€733.18Excl. 19% VAT , excl. Shipping Cost
-

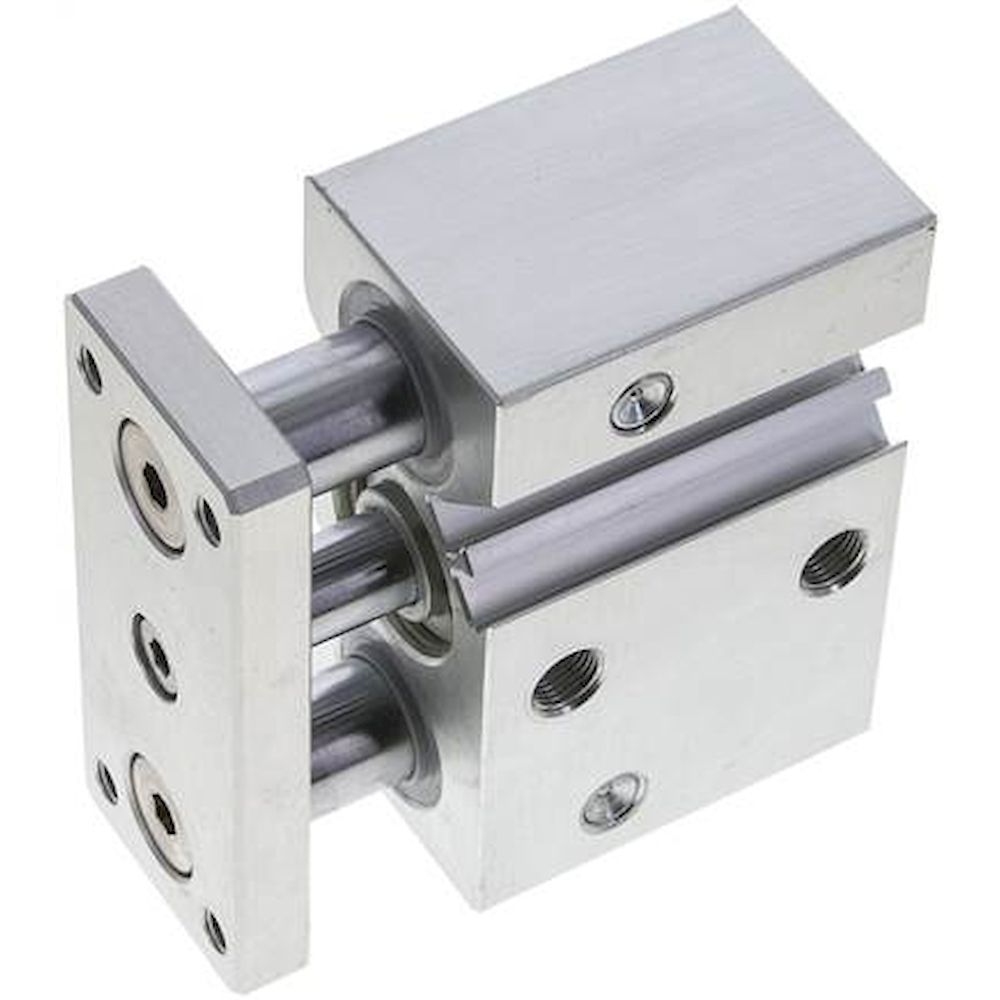

Guide cylinder, with slide bearing, pistons 25mm,stroke 20mm
€368.74Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM
| Piston diameter [mm] | 25 |
| Stroke [mm] | 200 |
| Version | with slide bearing |
| G (compressed air port) | G 1/8" |
| Repair sets | SGM 25 REP |
| lateral force permissible [N] | 65 |
| permissible torque at the end-plate [Nm] | 1,67 |
| C [mm] | 37,5 |
| D [mm] | 16 |
| D1 [mm] | 12 |
| E [mm] | 51,0 |
| FA [mm] | 10 |
| FB [mm] | 16 |
| GA [mm] | 9,0 |
| GB [mm] | 11,5 |
| GC [mm] | 13,5 |
| GD [mm] | 12,5 |
| GE [mm] | 11,5 |
| H [mm] | 93 |
| J [mm] | 28,5 |
| K [mm] | 77 |
| L1 [mm] | 6 |
| L2 [mm] | 3 |
| M | M 6 |
| M1 [mm] | 12 |
| ML [mm] | 15 |
| MM | M 6 |
| N [mm] | 17 |
| NN [mm] | 120 |
| P [mm] | 5,2 |
| PA (+0,03 / -0) [mm] | 4 |
| PP [mm] | 4,5 |
| Q [mm] | 26 |
| QL [mm] | 78 |
| R (± 0,02) [mm] | 34 |
| RR [mm] | 64 |
| T [mm] | 9.5 (5.5 deep) |
| V [mm] | 50 |
| VA [mm] | 8,4 |
| VB [mm] | 5,4 |
| VC [mm] | 4,5 |
| VD [mm] | 3,0 |
| VE [mm] | 8,2 |
| W [mm] | 42 |
| WA [mm] | 82 |
| WB [mm] | 30 |
| WL [mm] | 91 |
| WW [mm] | 38 |
| Manufacturer Nr. | SGM 25/200 |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571873646 |
| Weight | 31.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Guide cylinder, with slide bearing, pistons 20mm,stroke 50mm
€349.36
Excl. 19% VAT ,
excl. Shipping Cost
Guide cylinder, with ball bushing, pistons 100mm,stroke 75mm
€1,399.38
Excl. 19% VAT ,
excl. Shipping Cost

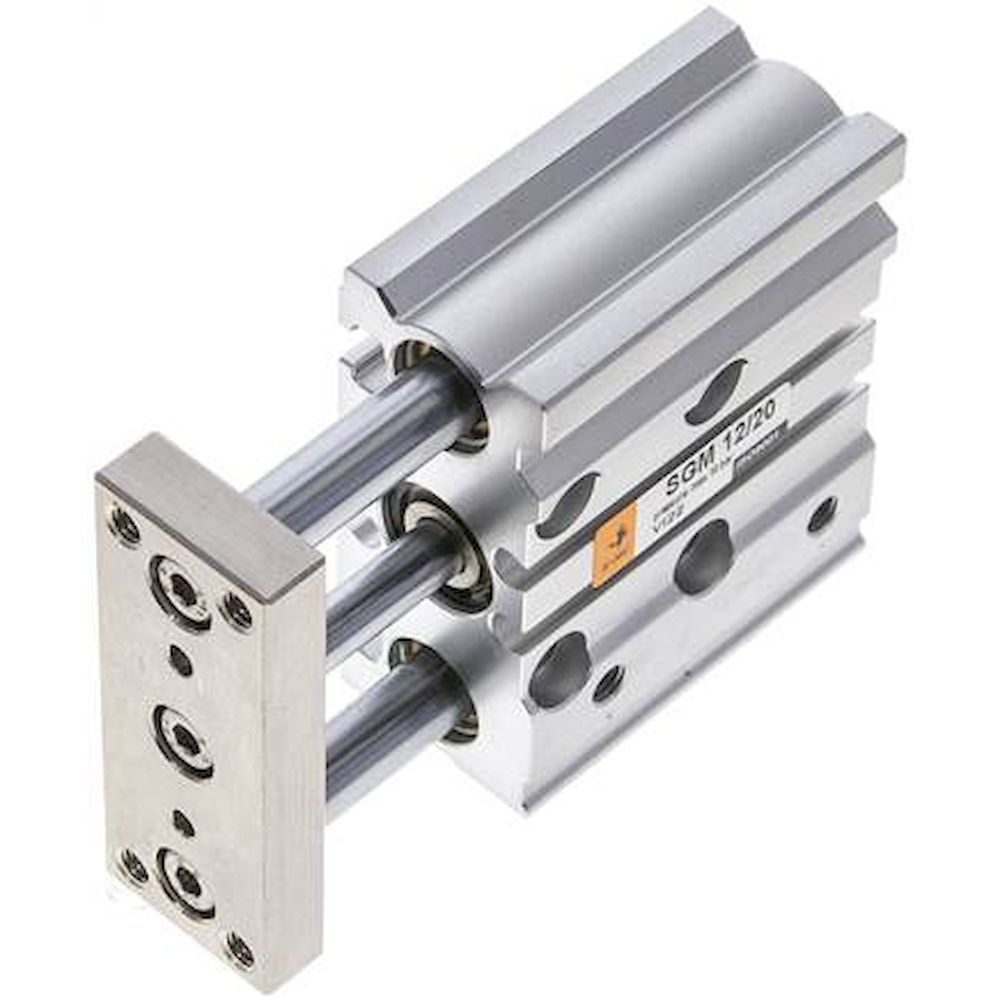

EMC SGM 12/20. Guide cylinder, with slide bearing, pistons 12mm, stroke 20mm
€77.02
Excl. 19% VAT ,
excl. Shipping Cost

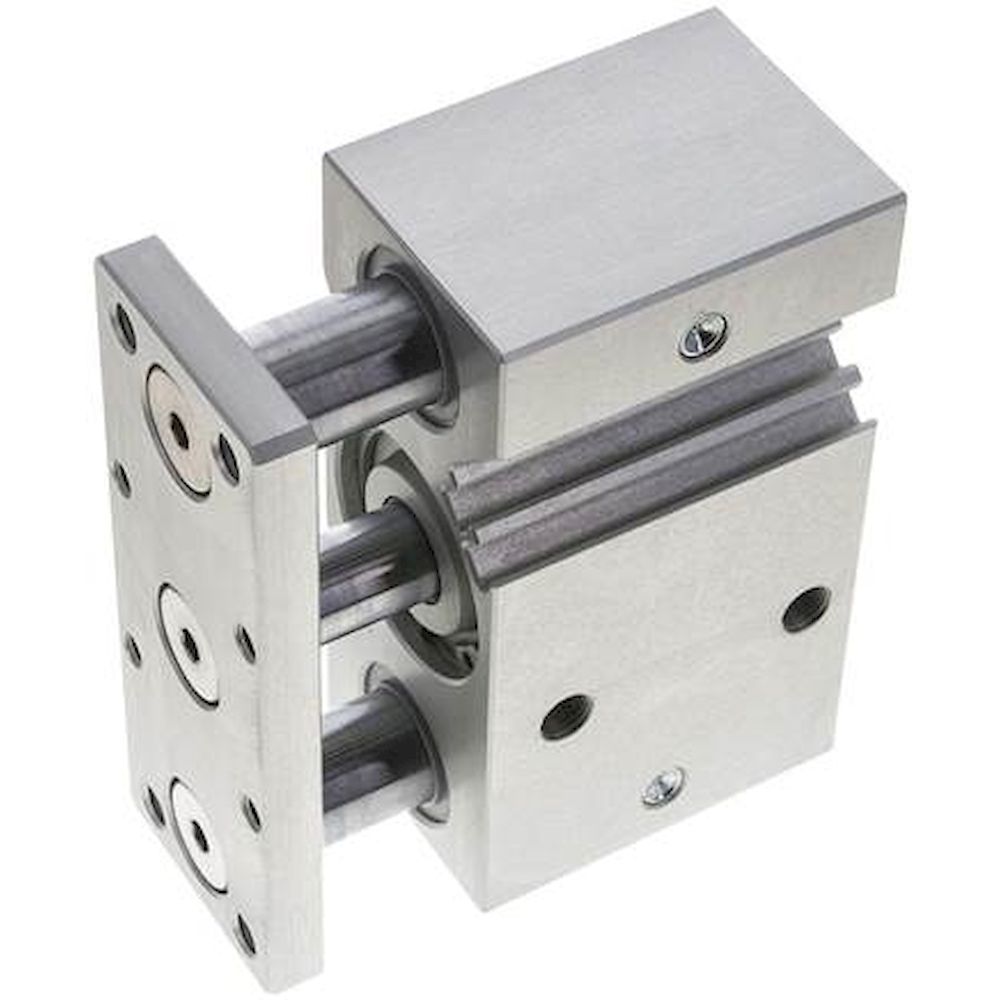

Guide cylinder, with slide bearing, pistons 40mm,stroke 25mm
€497.51
Excl. 19% VAT ,
excl. Shipping Cost
Guide cylinder, with slide bearing, pistons 63mm,stroke 100mm
€768.28
Excl. 19% VAT ,
excl. Shipping Cost

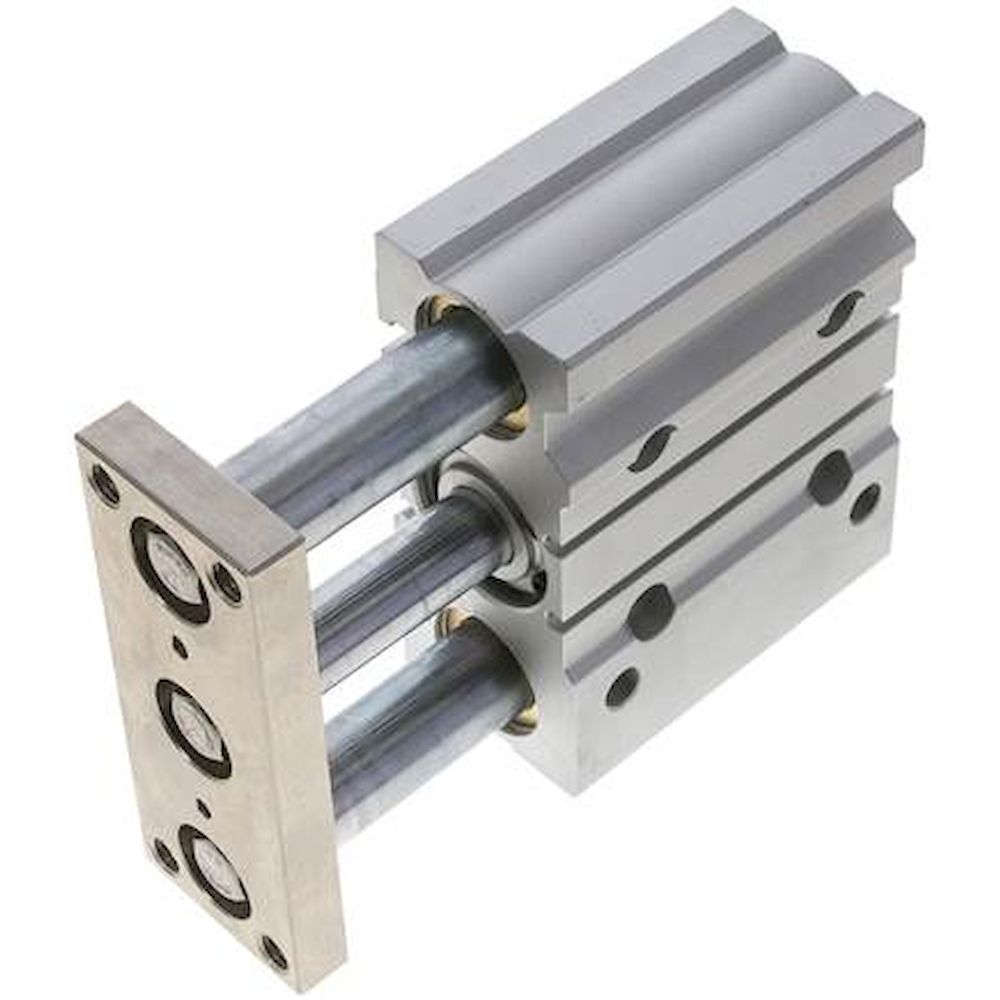

EMC SGM 32/50. Guide cylinder, with slide bearing, pistons 32mm, stroke 50mm
