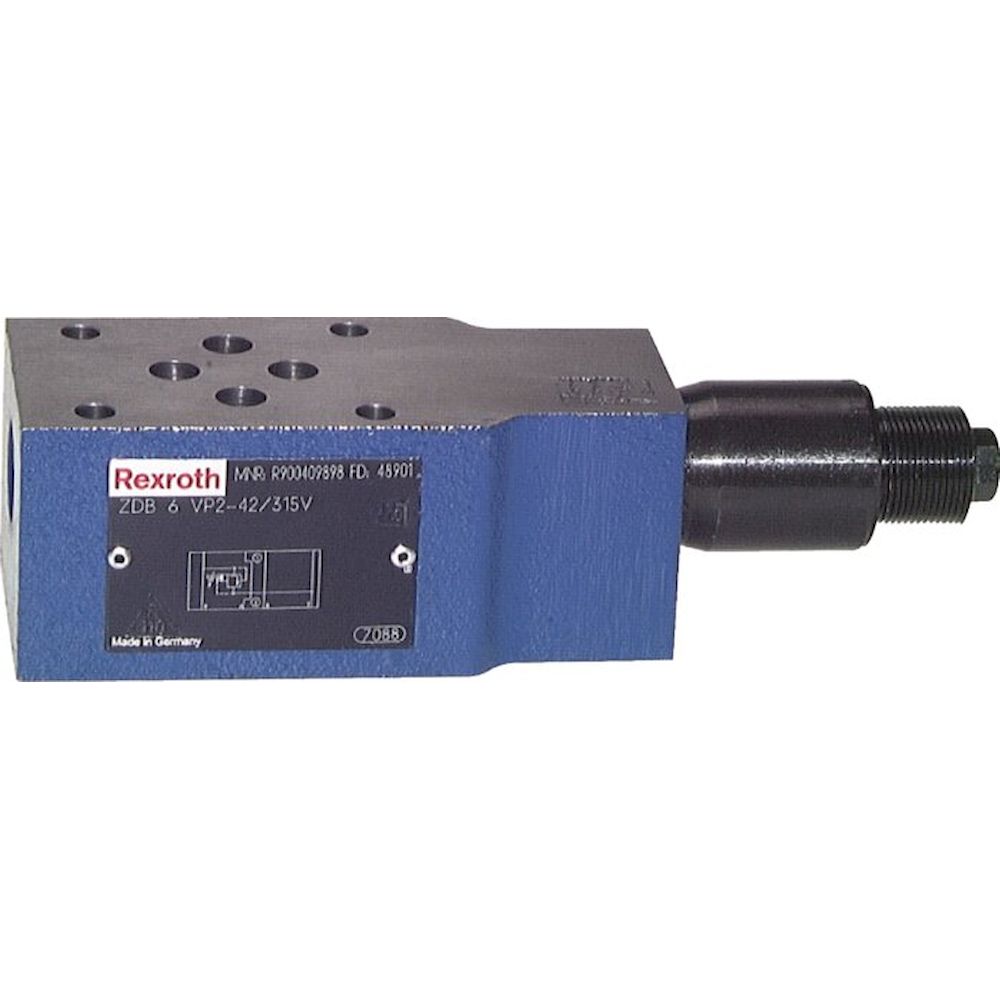

LA-ZDB-6-A2/100. Alternatively NG 6-pressure limiting valve

Suitable:
NG 6 intermediate plate valves are used in combination with NG 6 directional valves. The intermediate plate valves are fitted between the directional valves and the connection plate. Each intermediate plate has a specific function, they control the strength, movement and speed of a hydraulic cylinder or a hydraulic motor.

Materials:
Body: Spheroidal cast iron, internal parts: Steel, seals: NBR

Media:
Hydraulic oils on the basis of mineral oil (viscosity: Bosch Rexroth: 10 - 500 mm²/s, alternatively: 20 - 400 mm²/s)

Operating pressure:
0 - 315 bar (alternatively: 0 - 320 bar)

Nominal flow:
up to approx. 60 l/min depending on the valve used (request pressure loss curves if required), we recommend usage up to approx. 40 l/min

Note:
The connection pattern NG 6 is standardised in accordance with DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03 and NFPA-D03. The valves must be attached with screws of strength class 12.9.

Scope of delivery:
Valve including seals, without screws.
