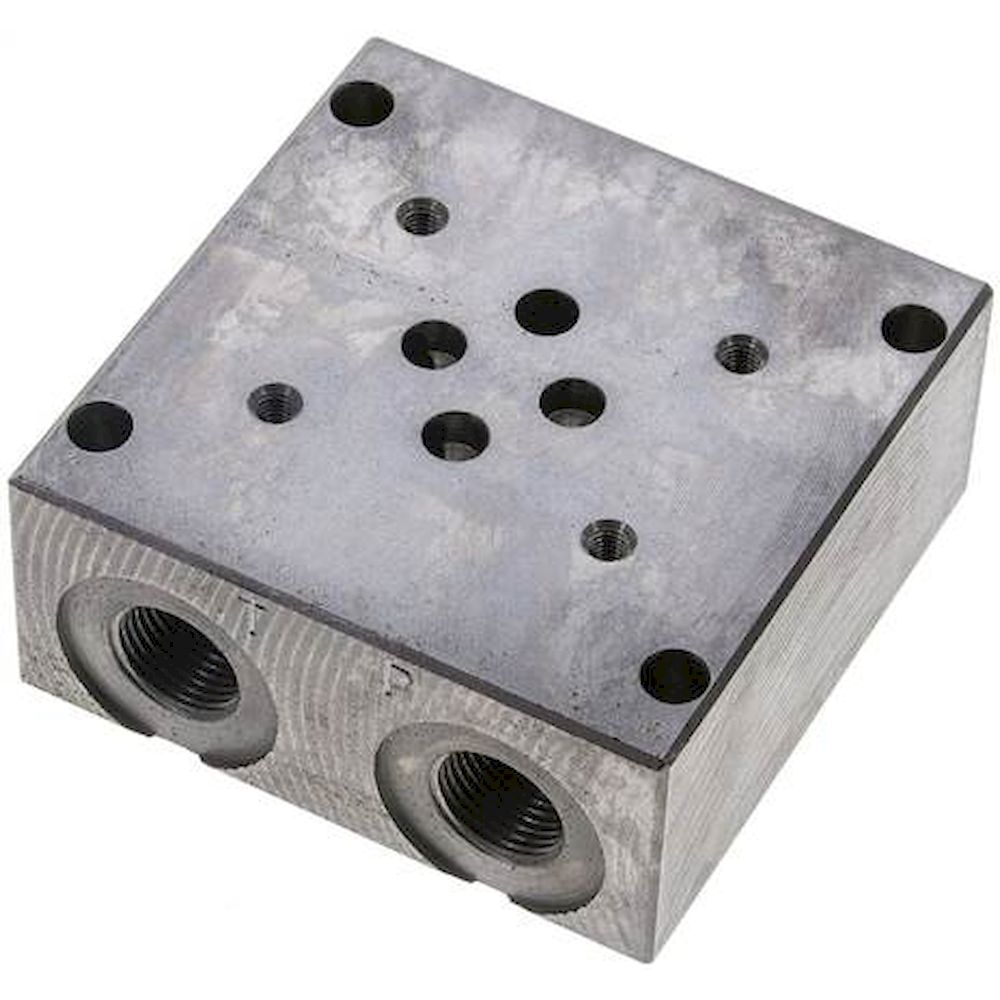

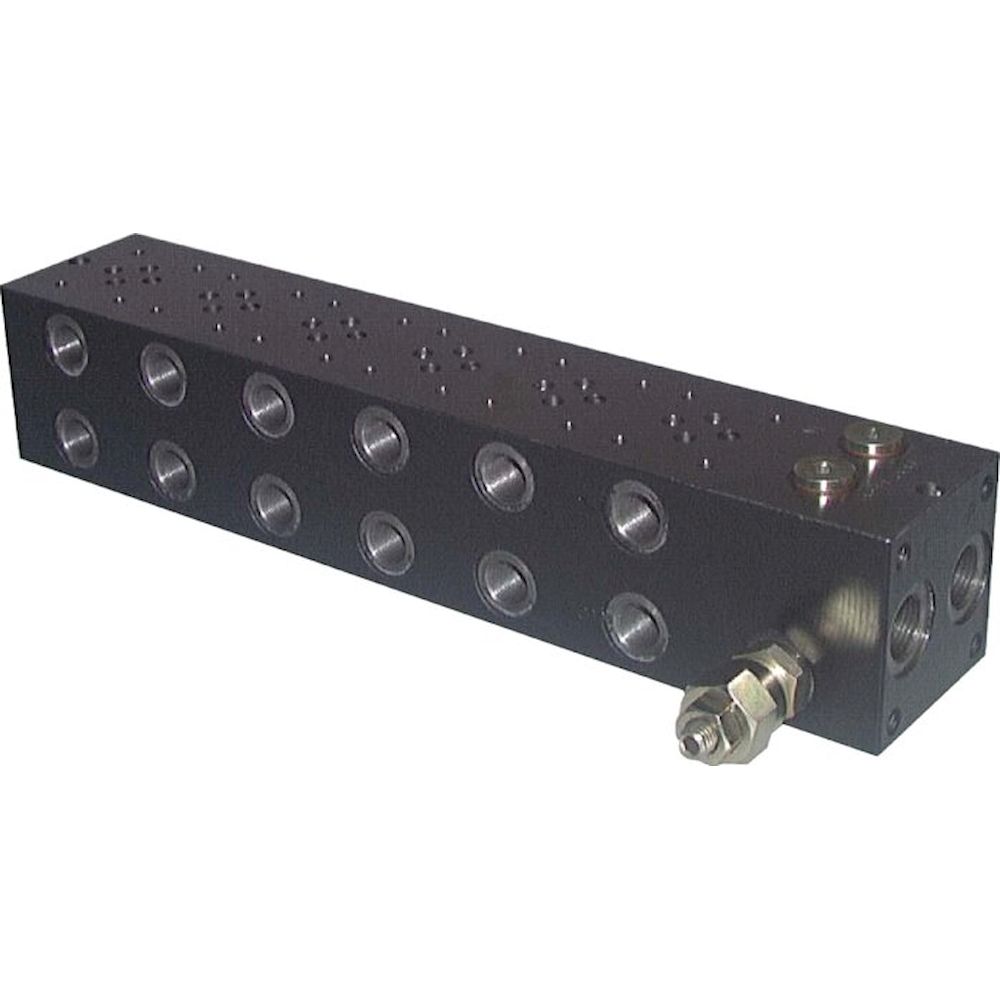

GRPDBV-61. Connection plate NG 6, 1-way, with pressure limiting valve

Description:
All connecting plates are equipped with a pressure limiting valve. The connections A & B are positioned lateral to the valve connection surface. The pressure and return flow connections P & T are drilled through and can be used optionally from both sides. The connection boards can optionally be mounted by the M 8 female threads on the front, or alongside the existing mounting holes.

Materials:
Connection plate: Cast iron, pressure limiting valve: Steel zinc plated, seals: NBR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 315 bar

Settings range for the pressure limiting valve:
100 to 315 bar

Nominal flow:
Max. 30 l/min

Note:
The connection pattern NG 6 is standardised in accordance with DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03 and NFPA-D03. The valves must be attached with screws of strength class 12.9.
