EMC EXSM 25/10. Double piston cylinder, piston 25mm, stroke 10mm

Name: EMC EXSM 25/10. Double piston cylinder, piston 25mm, stroke 10mm
Brand: E.MC
SKU: FL-EXSM-25/10
Price: 126.89 EUR
Availability: InStock

€126.89

Excl. 19% VAT , excl. Shipping Cost

Article

FL-EXSM-25/10

Manufacturer: E.MC

Manufacturer Nr.

EXSM 25/10

Double piston cylinder, piston 25mm, stroke 10mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: EMC EXSM 25/10. Double piston cylinder, piston 25mm, stroke 10mm
€126.89
Excl. 19% VAT , excl. Shipping Cost
EMC EXSM 10 REP. Reparatursatz für Doppel-kolbenzylinder 10mm
€8.07
Excl. 19% VAT , excl. Shipping Cost

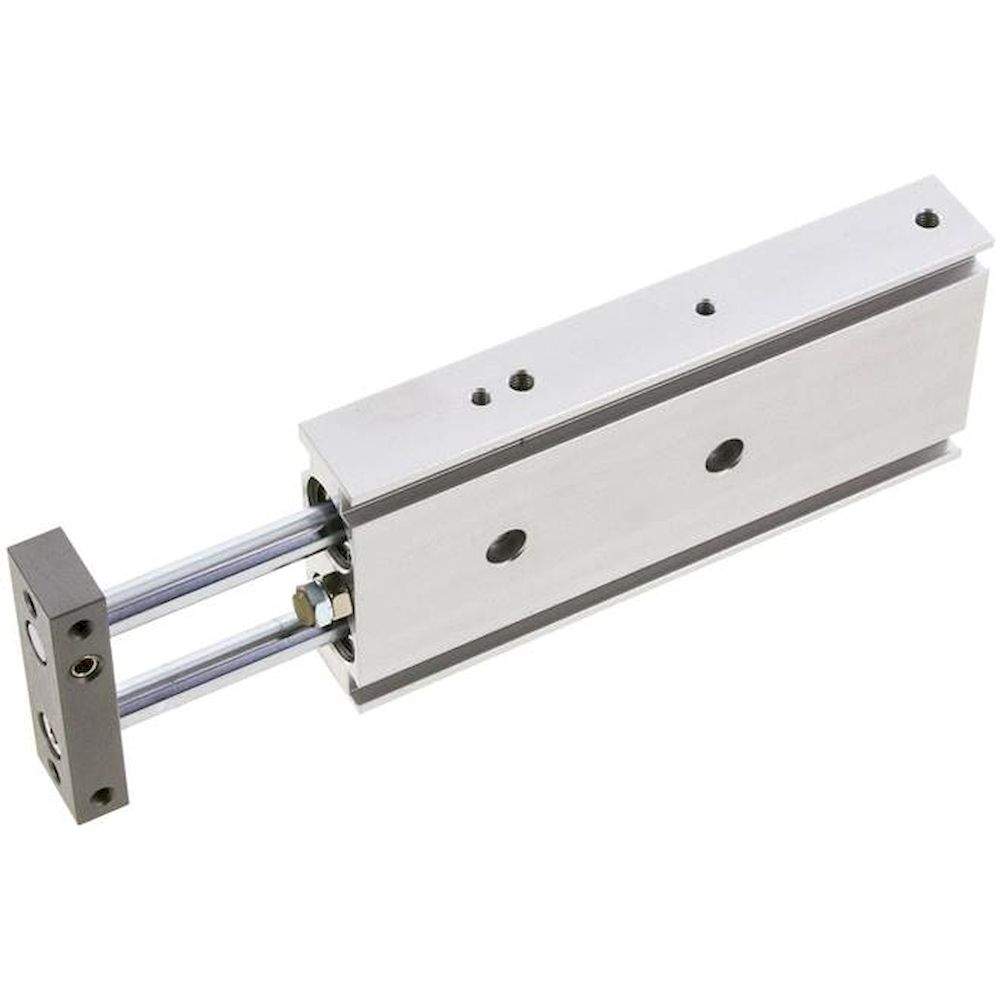

EMC EXSM 16/70. Double piston cylinder, piston 16mm, stroke 70mm
€139.60
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Body and plate: Anodized aluminium, piston rods: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 7 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•Guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.2° (±),
•ideal for Pick-and-Place applications,
•stroke adjustment range 0 to -5 mm,
•air connection from the top or below (closed with stopper plugs),
•main installation dimensions identical to SMC series CXS

Piston diameter [mm]	25
Stroke [mm]	10
Stroke (adjustment range) [mm]	5 - 10
Version	Double piston cylinder
G (compressed air port)	G 1/8"
Repair sets	EXSM 25 REP
lateral force permissible [N]	15
A [mm]	96,0
B [mm]	24,0
C [mm]	72
D [mm]	30
D1	30
E [mm]	30
E1 [mm]	30
F [mm]	64,0
H [mm]	12
I [mm]	35
K [mm]	60
L [mm]	78
M [mm]	28
N1 [mm]	43,0
N2 [mm]	9,0
R [mm]	9,0
S [mm]	80
T [mm]	30
V [mm]	12
W [mm]	13,0
P1	11.0 (6.3 deep)
P2	M 8
P3	M 6
P4	M 5
P5 [mm]	6,8
P6	M 5
Q2 [mm]	12
Q4 [mm]	7,5
Q6 [mm]	7,0
