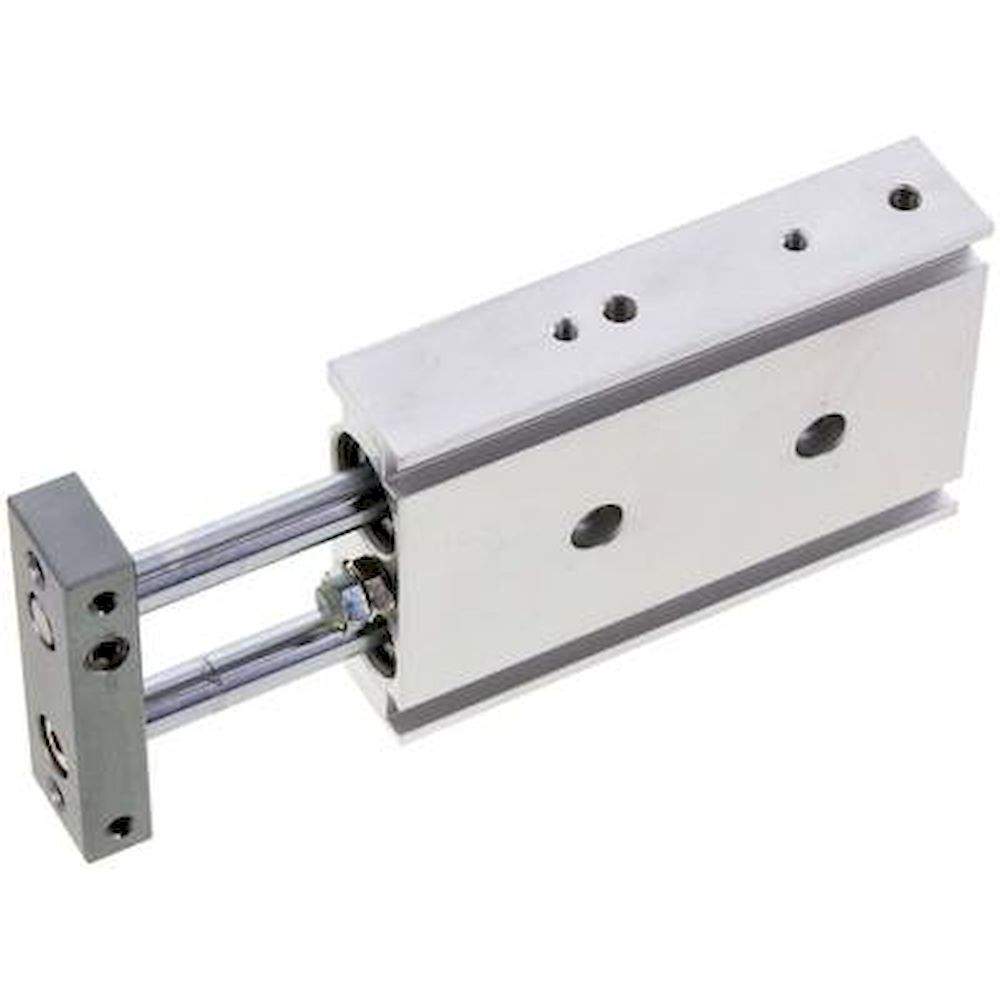

EMC EXSM 20/125. Double piston cylinder, piston 20mm, stroke 125mm

Name: EMC EXSM 20/125. Double piston cylinder, piston 20mm, stroke 125mm
Brand: E.MC
SKU: FL-EXSM-20/125
Price: 202.24 EUR
Availability: InStock

€202.24

Excl. 19% VAT , excl. Shipping Cost

Article

FL-EXSM-20/125

Manufacturer: E.MC

Manufacturer Nr.

EXSM 20/125

Double piston cylinder, piston 20mm, stroke 125mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: EMC EXSM 20/125. Double piston cylinder, piston 20mm, stroke 125mm
€202.24
Excl. 19% VAT , excl. Shipping Cost
EMC EXSM 20/50. Double piston cylinder, piston 20mm, stroke 50mm
€150.38
Excl. 19% VAT , excl. Shipping Cost
EMC EXSM 25/20. Double piston cylinder, piston 25mm, stroke 20mm
€134.42
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Body and plate: Anodized aluminium, piston rods: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 7 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•Guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.2° (±),
•ideal for Pick-and-Place applications,
•stroke adjustment range 0 to -5 mm,
•air connection from the top or below (closed with stopper plugs),
•main installation dimensions identical to SMC series CXS

Piston diameter [mm]	20
Stroke [mm]	125
Stroke (adjustment range) [mm]	120 - 125
Version	Double piston cylinder
G (compressed air port)	M 5
Repair sets	EXSM 20 REP
lateral force permissible [N]	2
A [mm]	94,0
B [mm]	24,0
C [mm]	70
D [mm]	80
D1	80
E [mm]	30
E1 [mm]	30
F [mm]	53,0
H [mm]	12
I [mm]	28
K [mm]	50
L [mm]	62
M [mm]	23
N1 [mm]	46,0
N2 [mm]	9,0
R [mm]	6,5
S [mm]	64
T [mm]	25
V [mm]	10
W [mm]	9,5
P1	9.5 (5.3 deep)
P2	M 6
P3	M 5
P4	M 4
P5 [mm]	5,2
P6	M 4
Q2 [mm]	10
Q4 [mm]	6,0
Q6 [mm]	5,5
