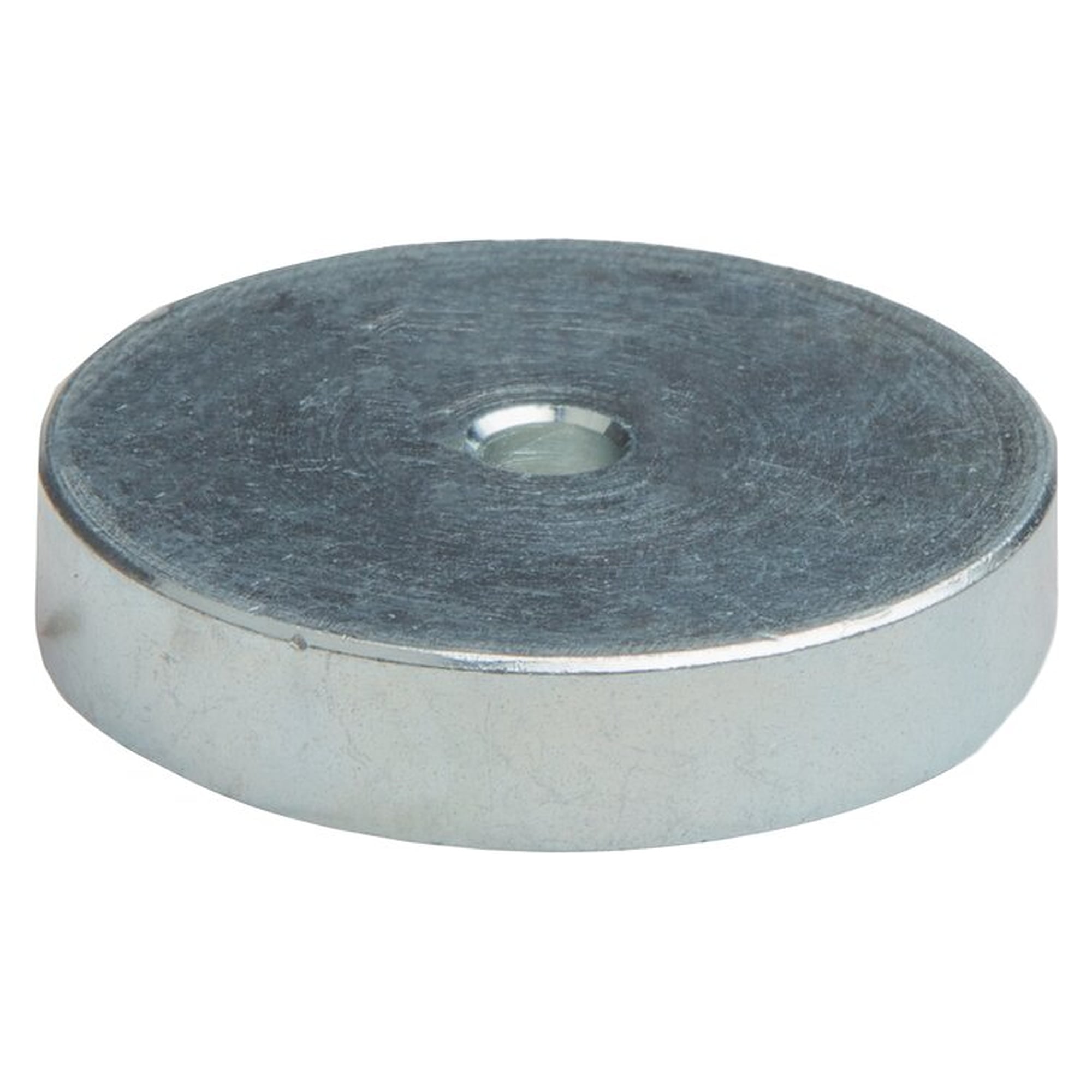

Pot magnet, Ø 40 mm, holding force 570 N, countersunk hole with a 90 degree cone
This pot magnet holds workpieces and fixtures on a flat steel surface without a hole or a screw. A key figure is a holding force of 570 N. Dimension Ø 40 mm, H1 8.0 mm, version countersunk hole with a 90 degree cone.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
As a pot magnet the article holds workpieces and fixtures on a flat steel surface without a hole or a screw. The data state a holding force of 570 N. The stated figures are body diameter 40 mm, pot height 8.0 mm and version countersunk hole with a 90 degree cone.
Benefits
- Listed with Body diameter D 40 mm.
- Bore diameter D1 5.5 mm.
- Holding force of 570 N as per the data sheet.
- Listed with Counterbore diameter D2 10.3 mm.
- Pot height H1 8.0 mm.
Applications
The pot magnet is used wherever it has to hold workpieces on a steel surface without drilling.
Technical data
| Version | countersunk hole with a 90 degree cone |
|---|---|
| Body diameter D [mm] | 40 |
| Bore diameter D1 [mm] | 5.5 |
| Holding force [N] | 570 |
| Counterbore diameter D2 [mm] | 10.3 |
| Pot height H1 [mm] | 8.0 |
| Weight | 0.075000 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | MAGT 40-SB5,5 ND |
| EAN | 4070497016507 |
| Zolltarifnummer | 85051910 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Senkbohrung (90°-Kegelsenkung) |
