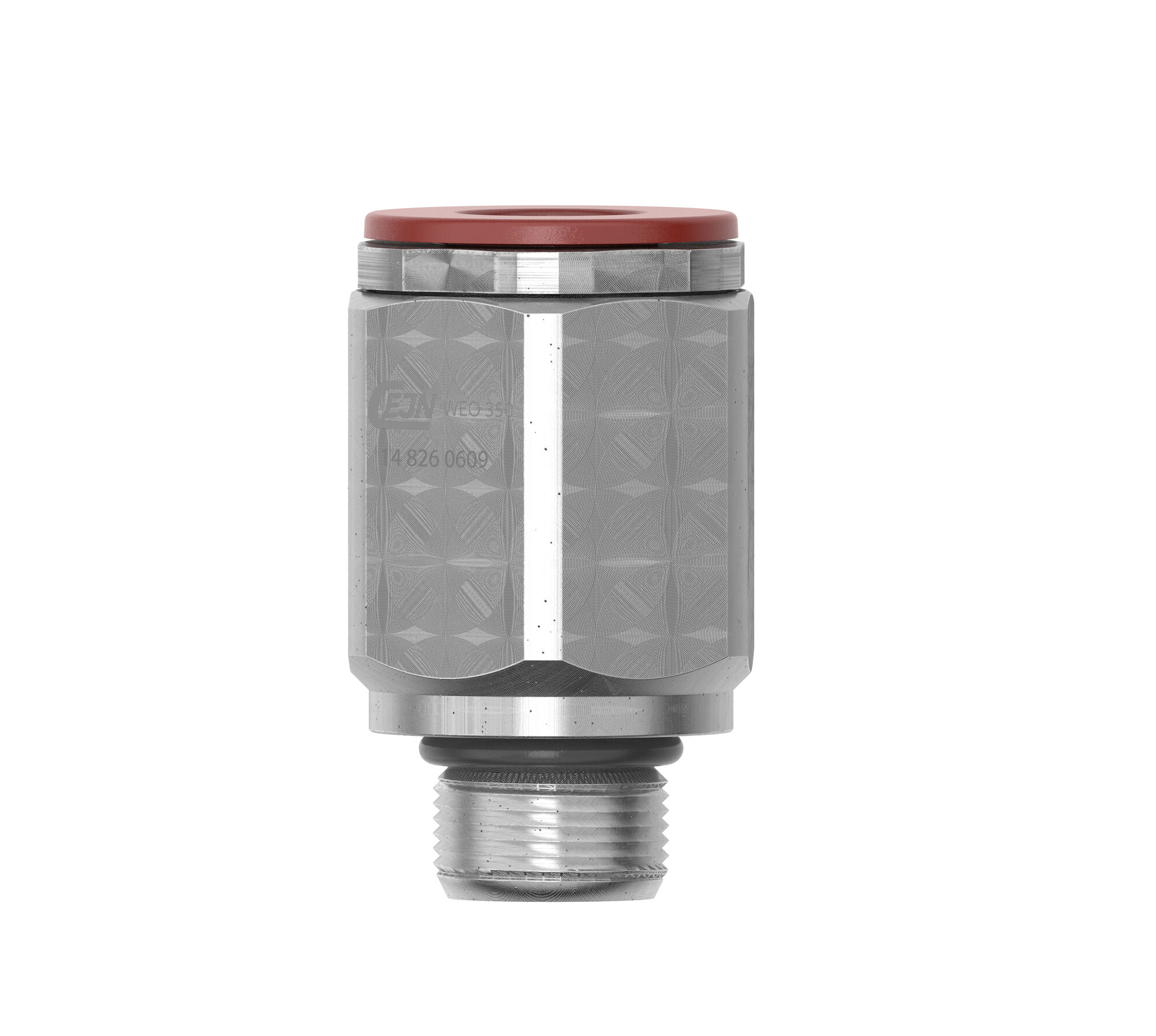

WEO 350 Hydraulic Push-in Coupling, male SAE ORB thread 9/16"-18 UNF, size 3/8", ISO 11926-3 - Cejn 148260609
This WEO 350 coupling leads from a threaded machine port to the push-in system. The threaded port is 9/16"-18 UNF at nominal size 3/8". The thread follows ISO 11926-3.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This WEO 350 coupling leads from a threaded machine port to the push-in system. The threaded port is 9/16"-18 UNF at nominal size 3/8".
Benefits
- WEO size 3/8" within the WEO 350 range.
- Connection 9/16"-18 UNF as male sae orb thread.
- Thread to ISO 11926-3.
- Weight 0.085 kg per piece.
- Manufacturer package of 10 pieces.
Applications
It is used in hydraulic line systems where connections are plugged and released without tools.
Standards
The threaded port 9/16"-18 UNF is made to ISO 11926-3.
Technical data
| Property | Value |
|---|---|
| Category | WEO 350 Coupling |
| WEO size | 3/8" |
| Connection | 9/16"-18 UNF |
| Connection type | Male SAE ORB Thread |
| Thread standard | ISO 11926-3 |
| Package quantity | 10 pcs |
| Weight | 0.085 kg |
| Packaging unit | 1 pcs |
| Manufacturer | Cejn |
| Hersteller-Nr | 148260609 |
| Zolltarifnummer | 73079210 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
