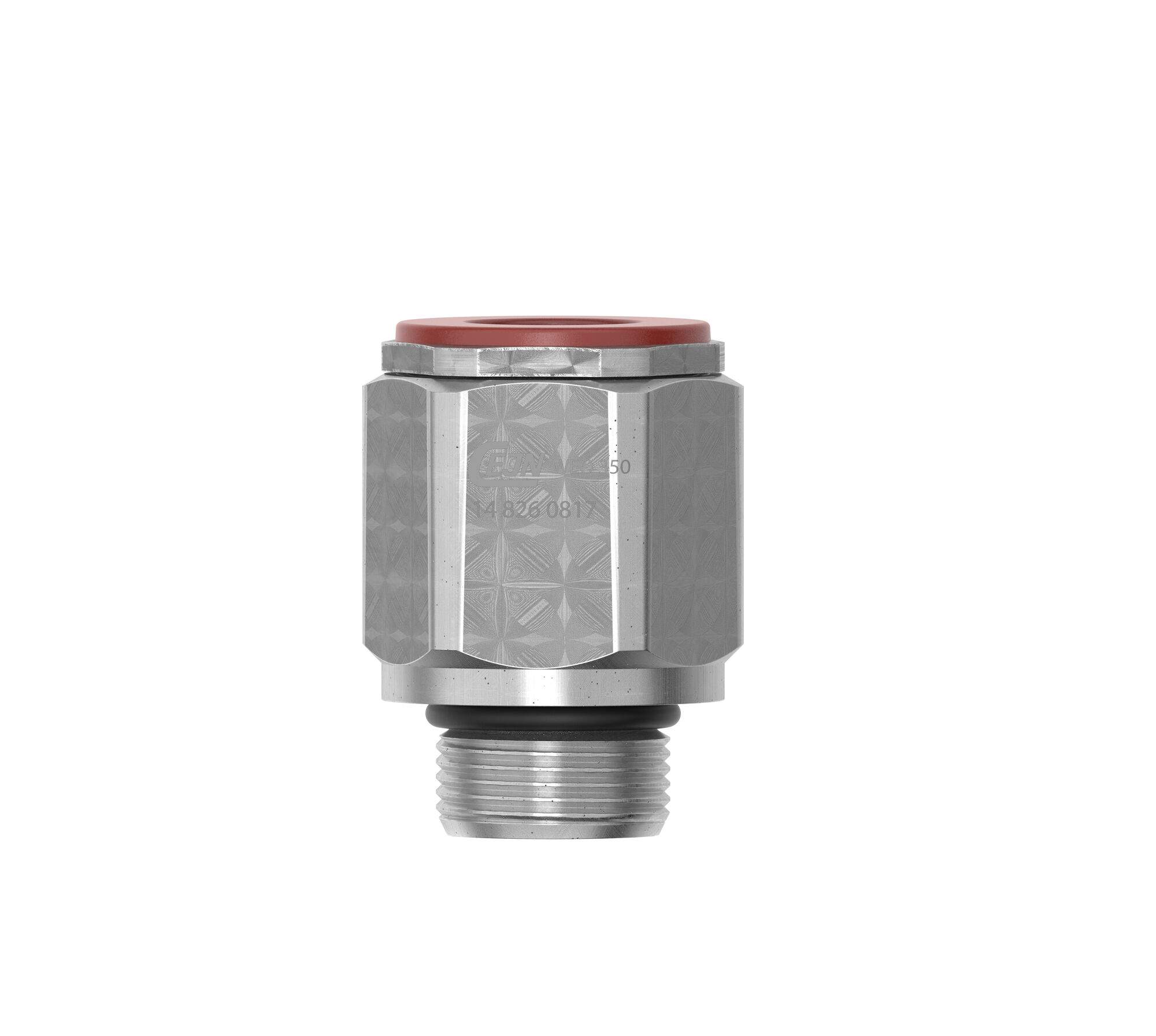

WEO 350 Hydraulic Push-in Coupling, male SAE ORB thread 1 1/16" - 12 UNF, size 1/2" - Cejn 148260817
Once screwed into the port, this coupling turns it into a WEO 350 push-in connection. The threaded port is 1 1/16" - 12 UNF at nominal size 1/2". The thread follows ISO 11926-3.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Once screwed into the port, this coupling turns it into a WEO 350 push-in connection. The threaded port is 1 1/16" - 12 UNF at nominal size 1/2".
Benefits
- WEO size 1/2" within the WEO 350 range.
- Connection 1 1/16" - 12 UNF as male sae orb thread.
- Thread to ISO 11926-3.
- Manufacturer package of 10 pieces.
Applications
Its place is in hydraulic assemblies that are meant to work without a threaded hose joint.
Standards
The threaded port 1 1/16" - 12 UNF is made to ISO 11926-3.
Technical data
| Property | Value |
|---|---|
| Category | WEO 350 Coupling |
| WEO size | 1/2" |
| Connection | 1 1/16" - 12 UNF |
| Connection type | Male SAE ORB Thread |
| Thread standard | ISO 11926-3 |
| Package quantity | 10 pcs |
| Packaging unit | 1 pcs |
| Manufacturer | Cejn |
| Hersteller-Nr | 148260817 |
| Zolltarifnummer | 73079210 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Datasheet
CAD Data
