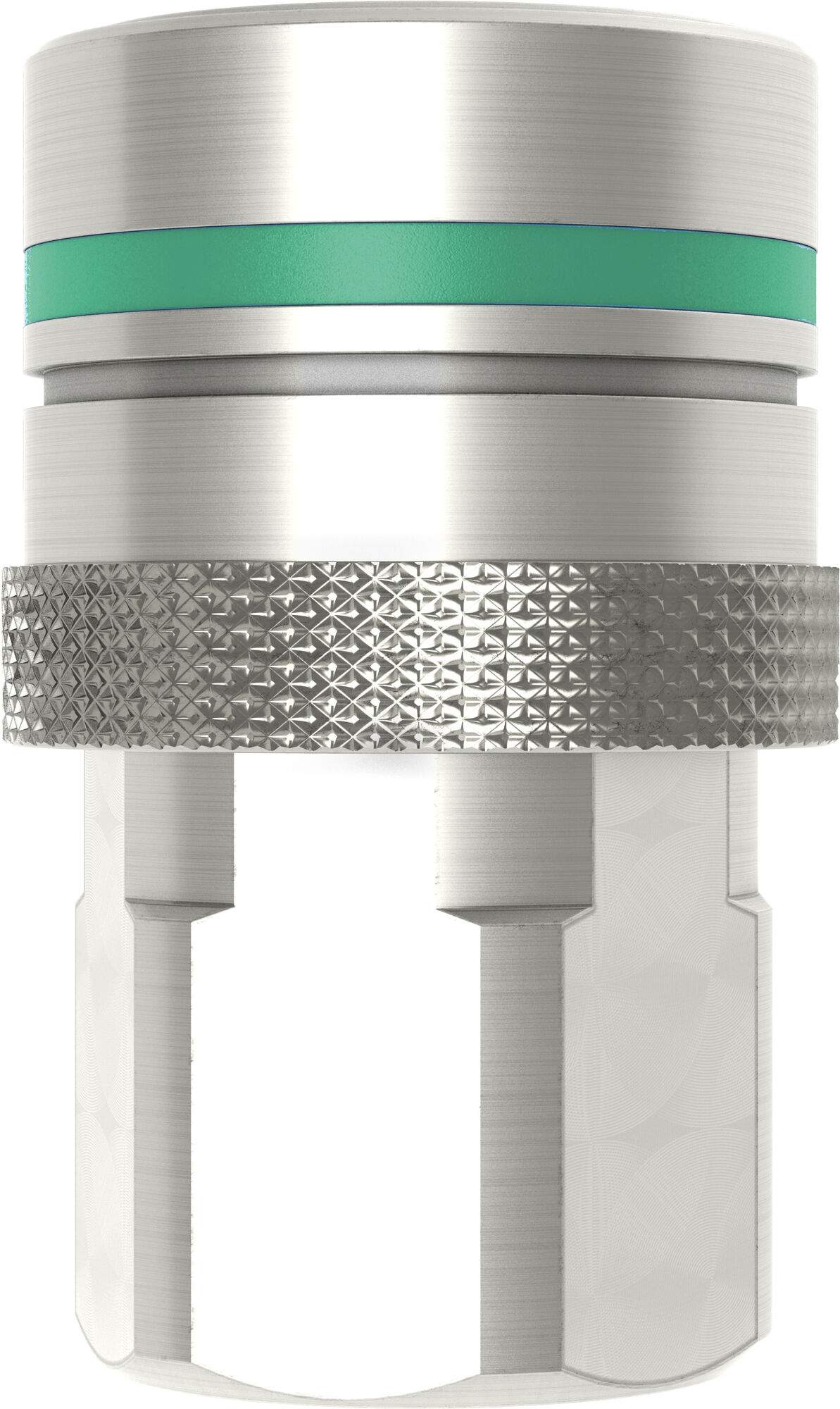

Non-drip quick coupling, with valve, G 3/8" female thread, DN 6, brass - Cejn 104671200

With a G 3/8" female thread, a nominal flow diameter of 6 mm and a permissible working pressure of 20 bar, this quick coupling covers a fixed point in the flow range of the non-drip series. The flat sealing face leaves hardly any medium behind when parting.

Benefits

• Weight 0.125 kg per piece.
• Flat-face parting line, therefore practically no residue when disconnecting.
• Nominal flow diameter 6 mm as a fixed figure for the flow range.
• Permissible working pressure 20 bar.
• Body made of brass.

Applications

Typical cases are fluid circuits in which neither medium may escape nor air may be trapped. This is exactly what the non-drip design of the series is made for.

Materials and marking

The body is made of brass. The seal material is NBR. Colour coding and key coding are available for the series on request.
