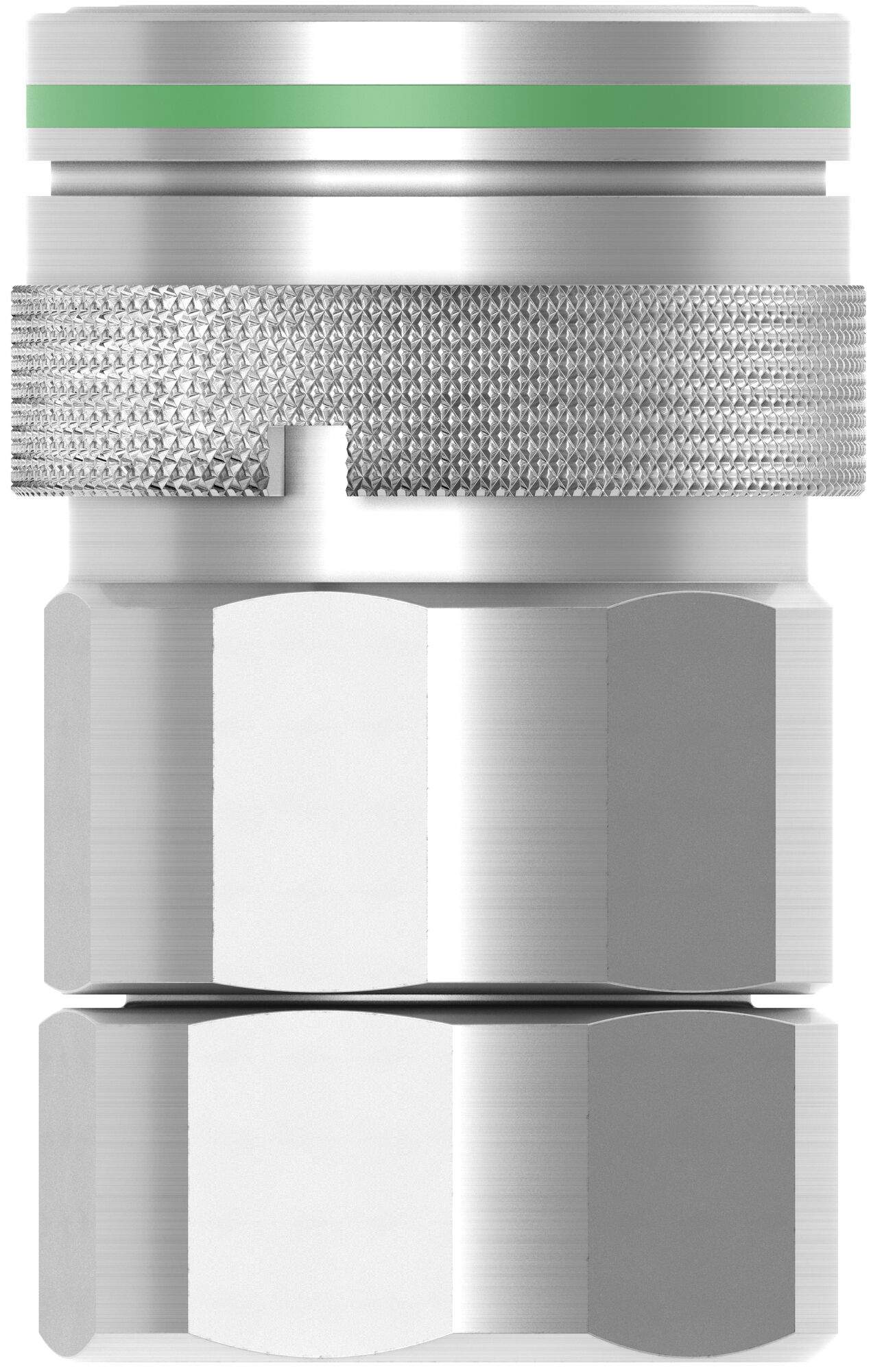

Non-drip quick coupling, with valve, G 1" female thread, DN 19, stainless steel - Cejn 107771210
Where medium and surroundings have to stay clean, this quick coupling connects through a G 1" female thread. The stainless steel (AISI 316) body and the FPM seal determine the resistance. Nominal flow diameter 19 mm, working pressure up to 20 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where the surroundings and the medium have to stay clean, this quick coupling connects through a G 1" female thread. A stainless steel (AISI 316) body, a FPM seal, 19 mm nominal flow diameter and a working pressure of up to 20 bar describe its operating window.
Benefits
- Nominal flow diameter 19 mm as a fixed figure for the flow range.
- Permissible working pressure 20 bar.
- Body made of stainless steel (AISI 316).
- Seal made of FPM.
Applications
The series is applied wherever pollution of the surroundings by residual medium has to be ruled out, for example in circuits that cool sensitive electronics.
Materials and marking
The body is made of AISI 316 stainless steel. The seal material is FPM. Colour coding and key coding are available for the series on request.
Technical data
| Design | Couplings with valve |
|---|---|
| Thread form | Female thread |
| Coupling type | Flat-face quick couplings |
| Connection | G 1" |
| Nominal flow diameter | 19 mm |
| Max. working pressure | 20 bar |
| Main material | Stainless steel (AISI 316) |
| Seal material | FPM |
| Weight | 0.75 kg |
| Packaging unit | 1 piece |
| Manufacturer number | 107771210 |
| Manufacturer | Cejn |
| Hersteller-Nr | 107771210 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
