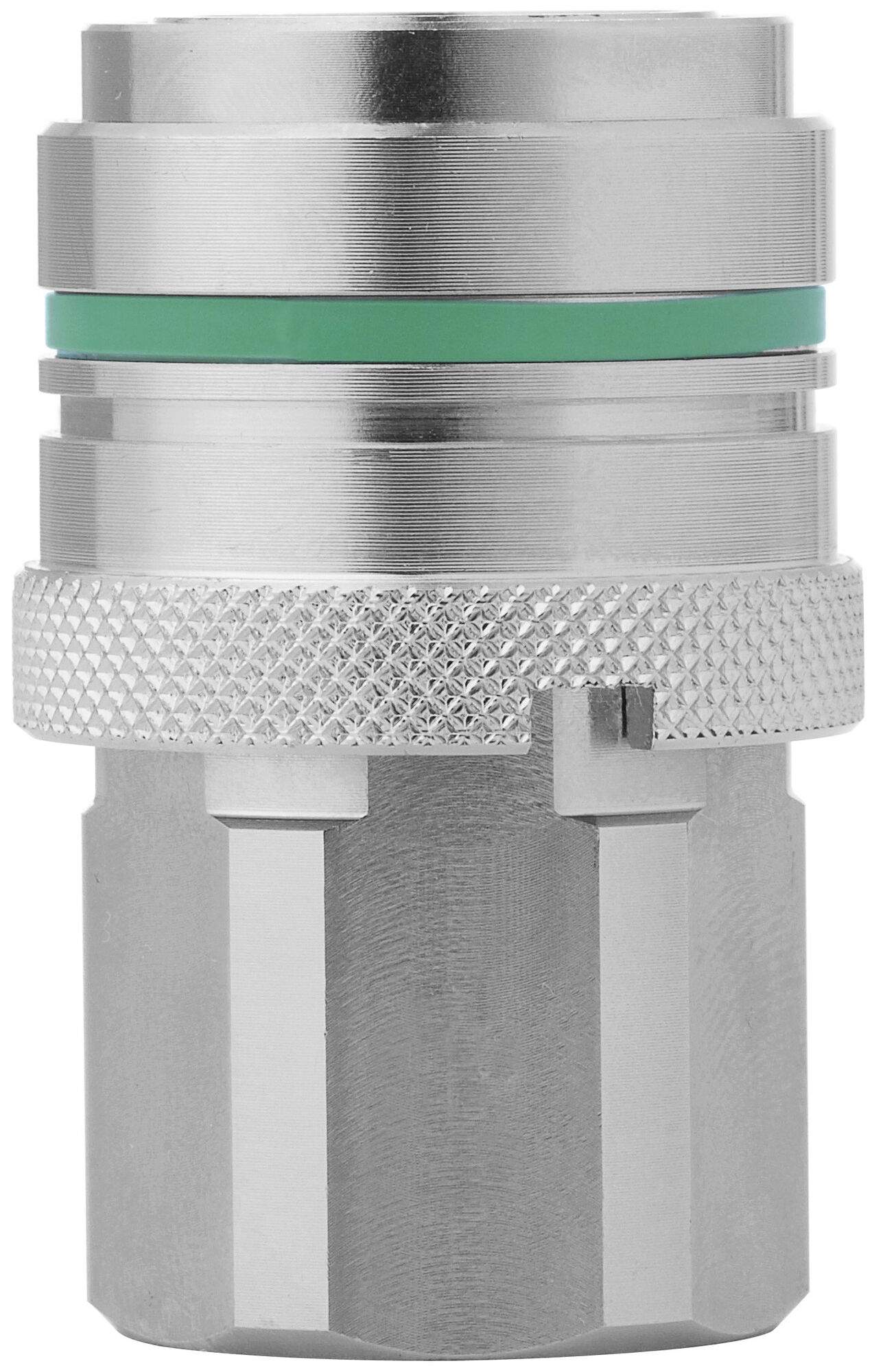

Non-drip quick coupling, with valve, G 1/2" female thread, DN 9, stainless steel - Cejn 105771210

This quick coupling in stainless steel (AISI 316) works with a nominal flow diameter of 9 mm and a G 1/2" female thread. It is intended for media lines that are disconnected and reconnected often in service, and it carries up to 20 bar.

Benefits

• Stainless steel AISI 316 as body material.
• Weight 0.18 kg per piece.
• Flat-face parting line, therefore practically no residue when disconnecting.
• Nominal flow diameter 9 mm as a fixed figure for the flow range.

Applications

The series is used in thermal management, where safe, easy to operate and reliable quick disconnects are required. The non-drip design protects the surroundings from escaping medium.

Materials and marking

The body is made of AISI 316 stainless steel. The seal material is FPM. Colour coding and key coding are available for the series on request.
