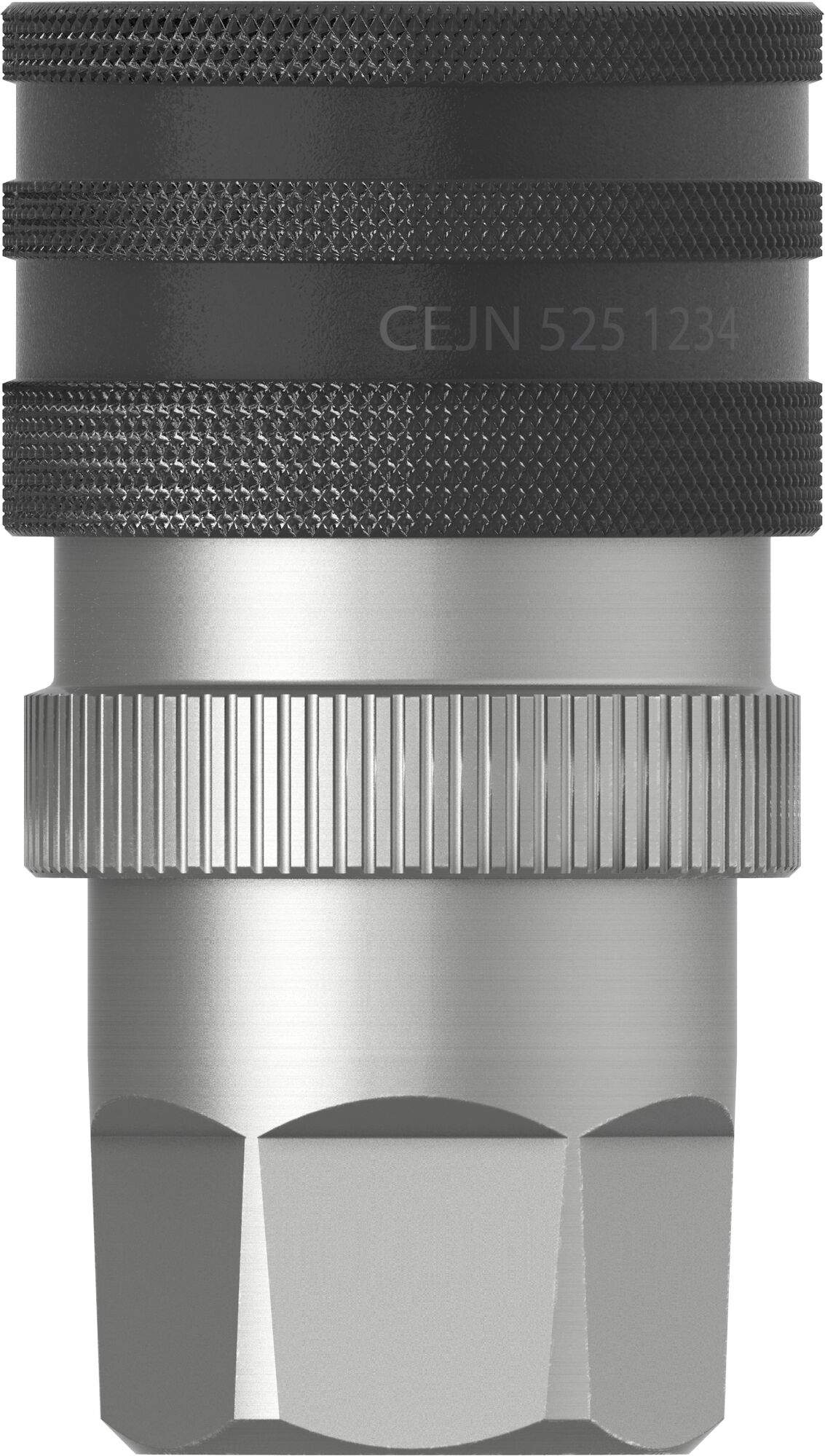

Quick coupling with pressure eliminator, female thread G 3/8", DN 10, 350 bar, Steel/NBR - Cejn 105251234
Built for hydraulic systems of series 525: Quick coupling with pressure eliminator, female thread G 3/8", steel as main material. Working pressure when connected is 350 bar, the seals are made of NBR.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Made of steel, this quick coupling with pressure eliminator belongs to series 525 and covers body size ISO-DN 10 with female thread G 3/8", rated up to 350 bar when connected. The pressure eliminator evacuates residual pressure during connection. Series 525 relies on steel with a zinc-nickel surface.
Features
- Steel as main material, seals made of NBR.
- Manually operated locking ring of series 525 against involuntary disconnection.
- Steel with zinc-nickel surface for long service life.
- Pressure eliminator evacuates residual pressure during connection.
- 350 bar working pressure when connected, minimum burst pressure 1300 bar.
- Female thread G 3/8" for direct installation, body size ISO-DN 10.
Applications
Series 525 is built for hydraulic systems. With 350 bar when connected and steel as main material, body size ISO-DN 10 covers permanently loaded connection points.
Materials and marking
The body size is stated as ISO-DN 10 and the connection size as 3/8". The manufacturer names Steel as main material and NBR as seal material.
Technical data
| Product type | Quick coupling with pressure eliminator |
|---|---|
| Design | Female thread |
| Body size ISO-DN | 10 |
| Size in inches | 3/8" |
| Connection type | Poppet type coupling |
| Connection | G 3/8" |
| Max. working pressure connected | 350 bar |
| Min. burst pressure connected | 1300 bar |
| Main material | Steel |
| Seal material | NBR |
| Series | Series 525 |
| Weight | 0.23 kg |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 105251234 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
