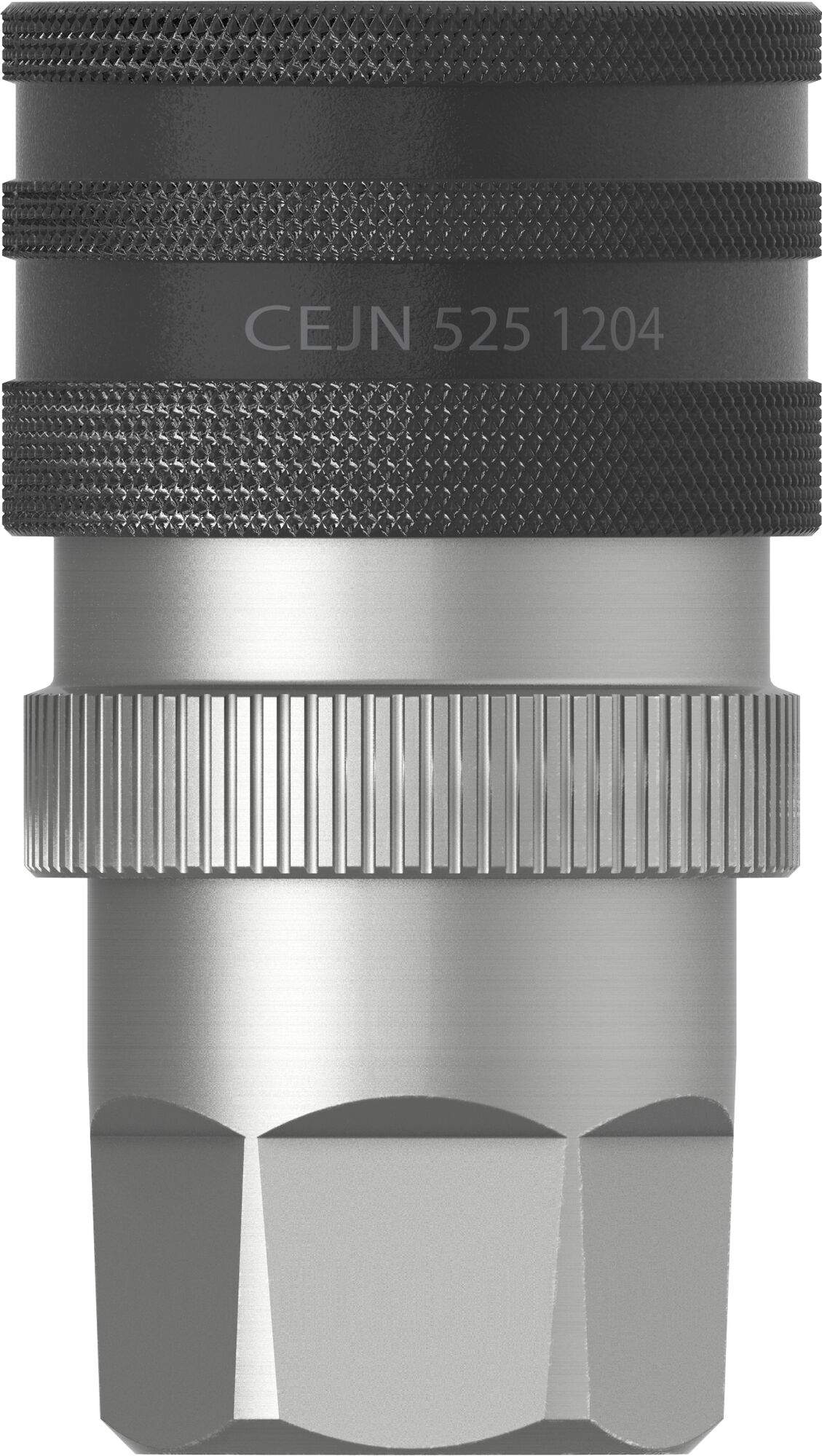

Quick coupling, female thread G 3/8", DN 10, 350 bar, Steel/NBR - Cejn 105251204
Tool-free connection of hydraulic lines in body size ISO-DN 10. The quick coupling in steel is rated for 350 bar when connected and is installed through female thread G 3/8". Seal material is NBR.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
In hydraulic circuits of body size ISO-DN 10, this quick coupling provides the tool-free connection and carries up to 350 bar when coupled. The poppet type design is stated by the manufacturer under connection type. Series 525 relies on steel with a zinc-nickel surface.
Features
- Female thread G 3/8" for direct installation, body size ISO-DN 10.
- Steel as main material, seals made of NBR.
- Manually operated locking ring of series 525 against involuntary disconnection.
- Steel with zinc-nickel surface for long service life.
- Poppet type design according to the manufacturer data on connection type.
- 350 bar working pressure when connected, minimum burst pressure 1300 bar.
Applications
Typical installations are hydraulic lines with female thread G 3/8" where a fast change is required. The manufacturer names tough applications and environments as the target area of series 525.
Materials and marking
The body size is stated as ISO-DN 10 and the connection size as 3/8". The manufacturer names Steel as main material and NBR as seal material.
Technical data
| Product type | Quick coupling |
|---|---|
| Design | Female thread |
| Body size ISO-DN | 10 |
| Size in inches | 3/8" |
| Connection type | Poppet type coupling |
| Connection | G 3/8" |
| Max. working pressure connected | 350 bar |
| Min. burst pressure connected | 1300 bar |
| Main material | Steel |
| Seal material | NBR |
| Series | Series 525 |
| Weight | 0.23 kg |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 105251204 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
