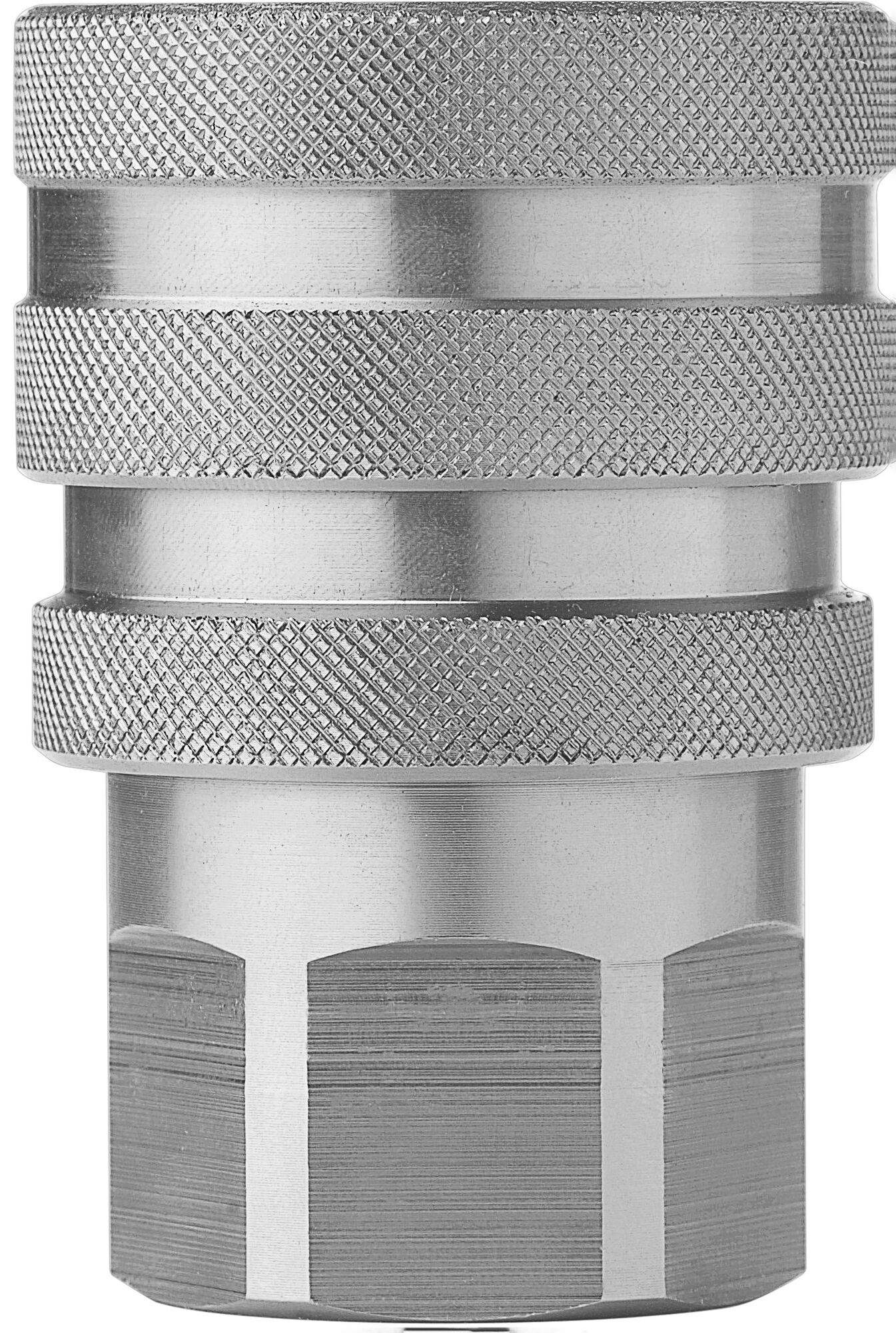

Quick coupling, female thread G 3/4", DN 20, 200 bar, Stainless steel AISI 316/FPM - Cejn 105261217
This quick coupling covers body size ISO-DN 20 and carries 200 bar when connected. It is installed through female thread G 3/4", the main material is stainless steel (AISI 316) with seals in FPM.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Rated at 200 bar working pressure when connected and 1000 bar minimum burst pressure, this quick coupling serves hydraulic lines with female thread G 3/4". The poppet type design is stated by the manufacturer under connection type. Series 526 relies on stainless steel throughout.
Features
- Manually operated locking ring of series 526 against involuntary disconnection.
- All parts made of stainless steel AISI 316 for tough environments.
- Poppet type design according to the manufacturer data on connection type.
- 200 bar working pressure when connected, minimum burst pressure 1000 bar.
- Female thread G 3/4" for direct installation, body size ISO-DN 20.
- Stainless steel (AISI 316) as main material, seals made of FPM.
Applications
On hydraulic lines of body size ISO-DN 20 the item forms the separable joint. It stays loadable up to 200 bar when coupled, the minimum burst pressure is 1000 bar.
Materials and marking
The body size is stated as ISO-DN 20 and the connection size as 3/4". The manufacturer names Stainless steel (AISI 316) as main material and FPM as seal material. The main material is identified as stainless steel grade AISI 316.
Technical data
| Product type | Quick coupling |
|---|---|
| Design | Female thread |
| Body size ISO-DN | 20 |
| Size in inches | 3/4" |
| Connection type | Poppet type coupling |
| Connection | G 3/4" |
| Max. working pressure connected | 200 bar |
| Min. burst pressure connected | 1000 bar |
| Main material | Stainless steel (AISI 316) |
| Seal material | FPM |
| Series | Series 526 |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 105261217 |
| Zolltarifnummer | 73079910 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
