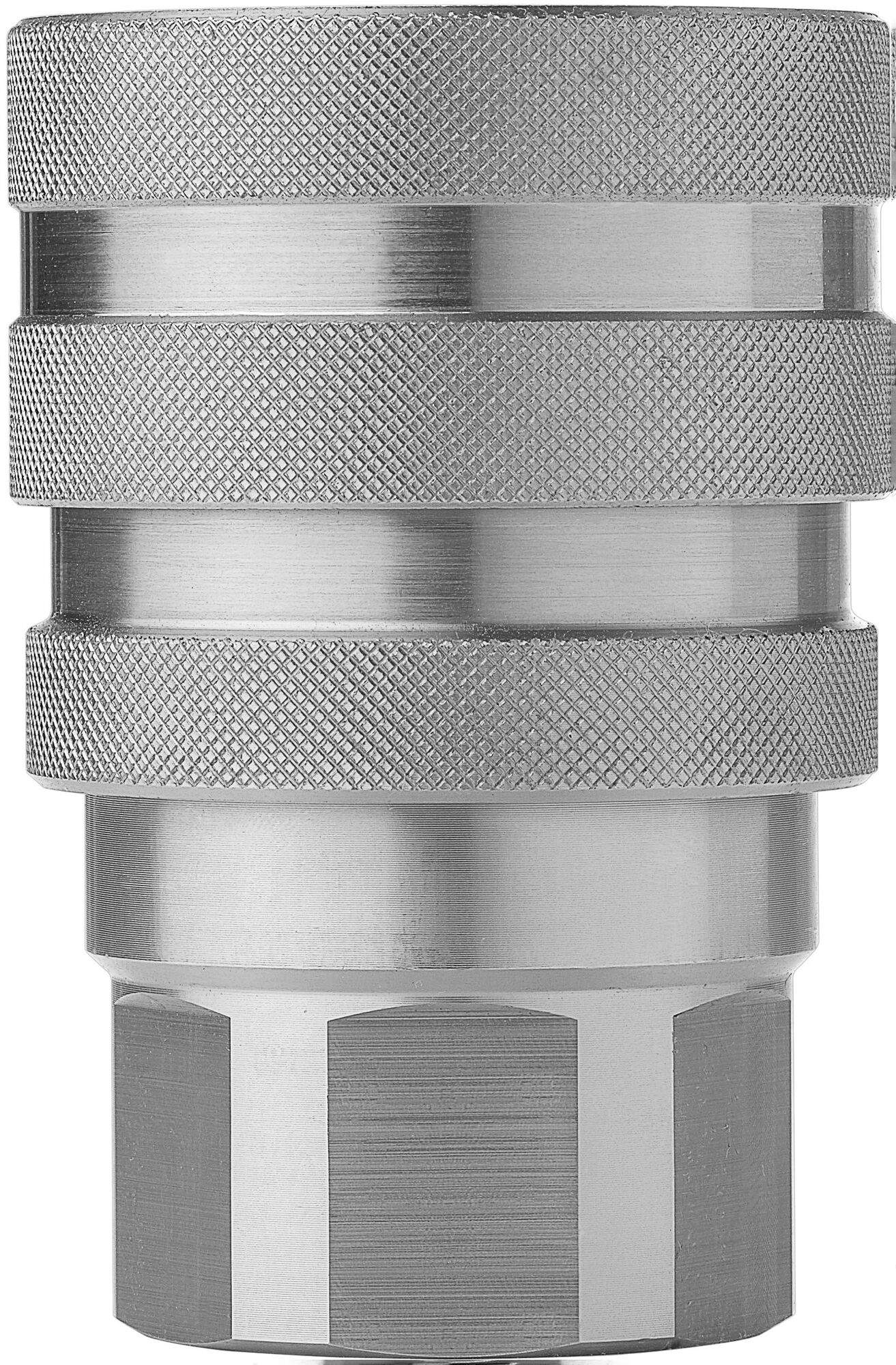

Quick coupling, female thread G 1", DN 25, 200 bar, Stainless steel AISI 316/FPM - Cejn 105261219
This quick coupling connects hydraulic lines through female thread G 1". It is rated for 200 bar when connected, with a minimum burst pressure of 800 bar. The main material is stainless steel (AISI 316) with FPM seals.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This quick coupling connects hydraulic lines through female thread G 1" and is rated for 200 bar working pressure when connected. The poppet type design is stated by the manufacturer under connection type. A manually operated locking ring of series 526 secures the joint against involuntary disconnection.
Features
- All parts made of stainless steel AISI 316 for tough environments.
- Poppet type design according to the manufacturer data on connection type.
- 200 bar working pressure when connected, minimum burst pressure 800 bar.
- Female thread G 1" for direct installation, body size ISO-DN 25.
- Stainless steel (AISI 316) as main material, seals made of FPM.
- Manually operated locking ring of series 526 against involuntary disconnection.
Applications
The range is used in hydraulic systems that are disconnected and reconnected often. Body size ISO-DN 25 with female thread G 1" suits lines carried up to 200 bar when coupled.
Materials and marking
The body size is stated as ISO-DN 25 and the connection size as 1". The manufacturer names Stainless steel (AISI 316) as main material and FPM as seal material. The main material is identified as stainless steel grade AISI 316.
Technical data
| Product type | Quick coupling |
|---|---|
| Design | Female thread |
| Body size ISO-DN | 25 |
| Size in inches | 1" |
| Connection type | Poppet type coupling |
| Connection | G 1" |
| Max. working pressure connected | 200 bar |
| Min. burst pressure connected | 800 bar |
| Main material | Stainless steel (AISI 316) |
| Seal material | FPM |
| Series | Series 526 |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 105261219 |
| Zolltarifnummer | 73079910 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
