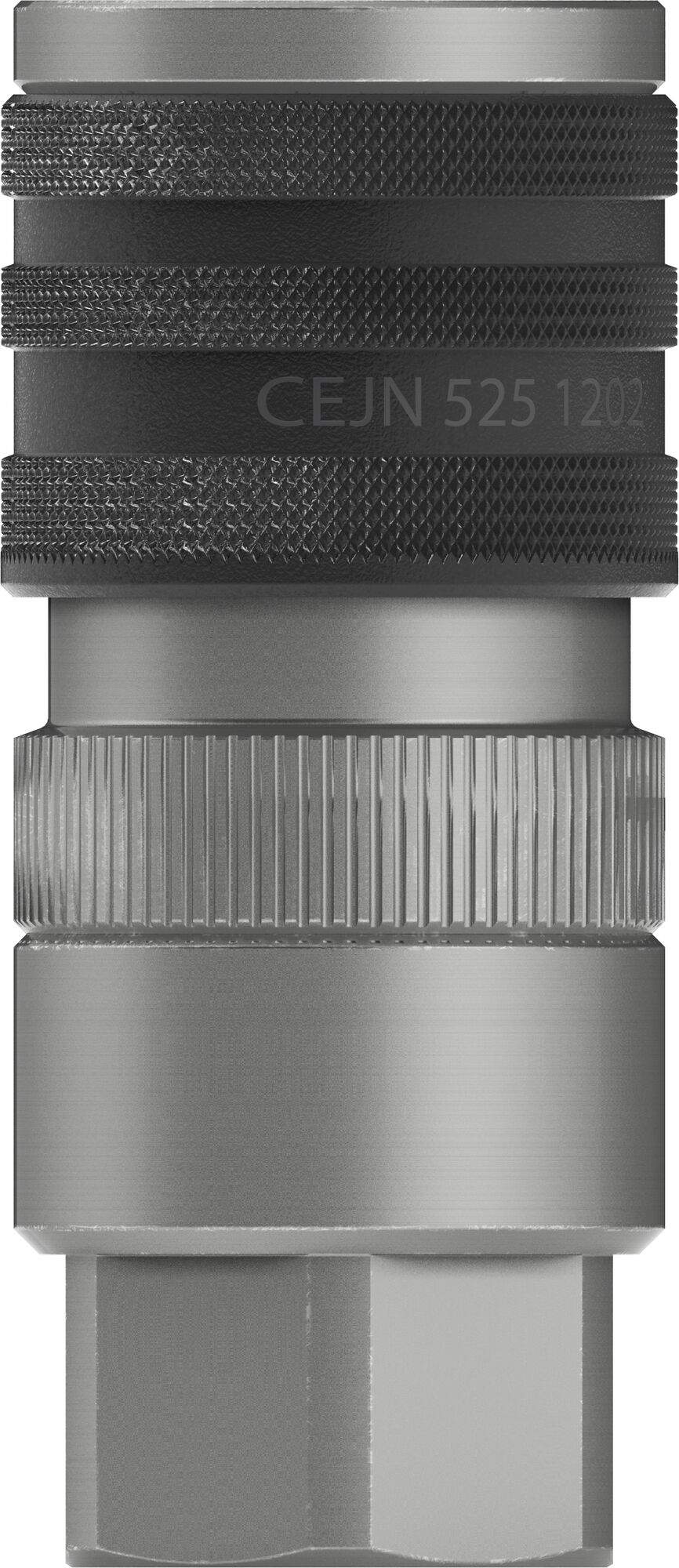

Quick coupling, female thread G 1/4", DN 6.3, 450 bar, Steel/NBR - Cejn 105251202
This quick coupling connects hydraulic lines through female thread G 1/4". It is rated for 450 bar when connected, with a minimum burst pressure of 1800 bar. The main material is steel with NBR seals.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This quick coupling connects hydraulic lines through female thread G 1/4" and is rated for 450 bar working pressure when connected. The poppet type design is stated by the manufacturer under connection type. A manually operated locking ring of series 525 secures the joint against involuntary disconnection.
Features
- 450 bar working pressure when connected, minimum burst pressure 1800 bar.
- Female thread G 1/4" for direct installation, body size ISO-DN 6.3.
- Steel as main material, seals made of NBR.
- Manually operated locking ring of series 525 against involuntary disconnection.
- Steel with zinc-nickel surface for long service life.
- Poppet type design according to the manufacturer data on connection type.
Applications
The range is used in hydraulic systems that are disconnected and reconnected often. Body size ISO-DN 6.3 with female thread G 1/4" suits lines carried up to 450 bar when coupled.
Materials and marking
The body size is stated as ISO-DN 6.3 and the connection size as 1/4". The manufacturer names Steel as main material and NBR as seal material.
Technical data
| Product type | Quick coupling |
|---|---|
| Design | Female thread |
| Body size ISO-DN | 6.3 |
| Size in inches | 1/4" |
| Connection type | Poppet type coupling |
| Connection | G 1/4" |
| Max. working pressure connected | 450 bar |
| Min. burst pressure connected | 1800 bar |
| Main material | Steel |
| Seal material | NBR |
| Series | Series 525 |
| Weight | 0.145 kg |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 105251202 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
