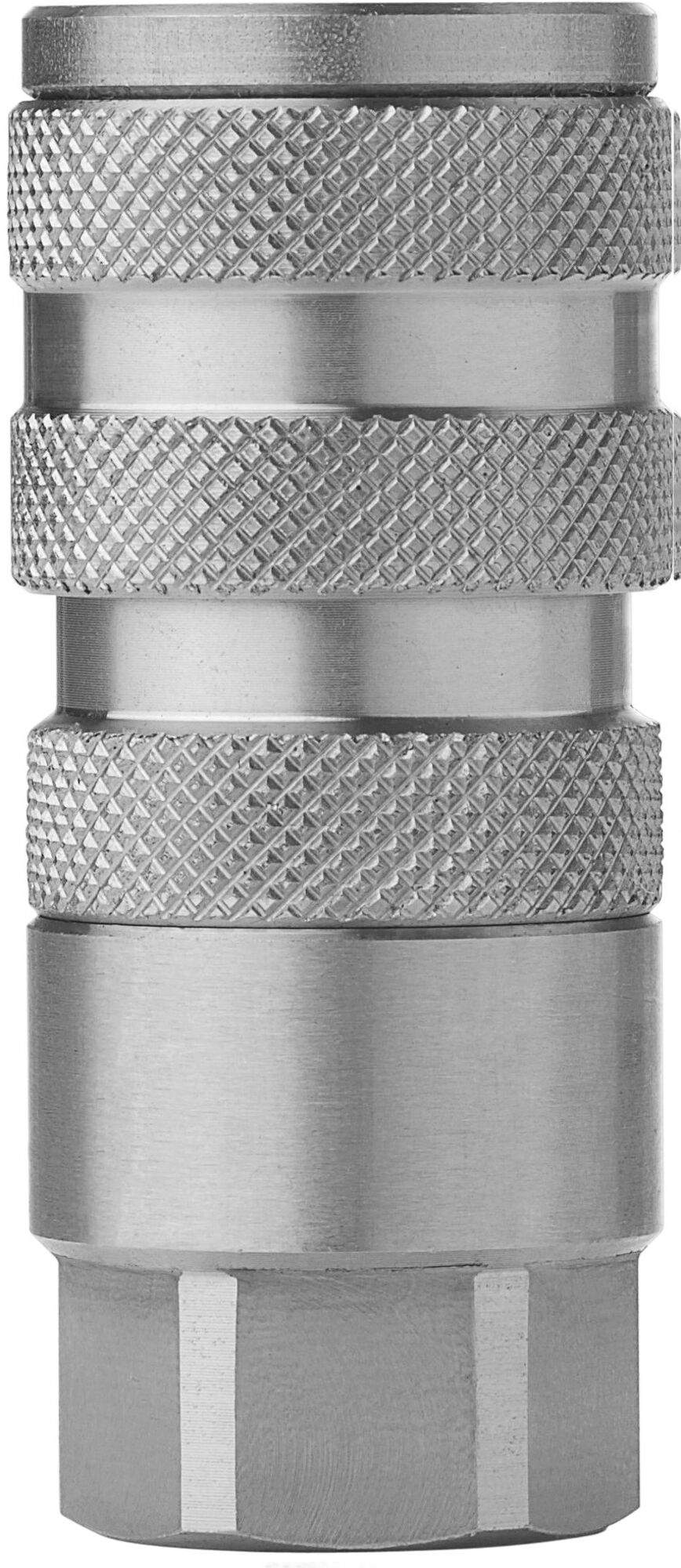

Quick coupling, female thread G 1/4", DN 6.3, 250 bar, Stainless steel AISI 316/FPM - Cejn 105261212
This quick coupling connects hydraulic lines through female thread G 1/4". It is rated for 250 bar when connected, with a minimum burst pressure of 1000 bar. The main material is stainless steel (AISI 316) with FPM seals.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This quick coupling connects hydraulic lines through female thread G 1/4" and is rated for 250 bar working pressure when connected. The poppet type design is stated by the manufacturer under connection type. A manually operated locking ring of series 526 secures the joint against involuntary disconnection.
Features
- 250 bar working pressure when connected, minimum burst pressure 1000 bar.
- Female thread G 1/4" for direct installation, body size ISO-DN 6.3.
- Stainless steel (AISI 316) as main material, seals made of FPM.
- Manually operated locking ring of series 526 against involuntary disconnection.
- All parts made of stainless steel AISI 316 for tough environments.
- Poppet type design according to the manufacturer data on connection type.
Applications
The range is used in hydraulic systems that are disconnected and reconnected often. Body size ISO-DN 6.3 with female thread G 1/4" suits lines carried up to 250 bar when coupled.
Materials and marking
The body size is stated as ISO-DN 6.3 and the connection size as 1/4". The manufacturer names Stainless steel (AISI 316) as main material and FPM as seal material. The main material is identified as stainless steel grade AISI 316.
Technical data
| Product type | Quick coupling |
|---|---|
| Design | Female thread |
| Body size ISO-DN | 6.3 |
| Size in inches | 1/4" |
| Connection type | Poppet type coupling |
| Connection | G 1/4" |
| Max. working pressure connected | 250 bar |
| Min. burst pressure connected | 1000 bar |
| Main material | Stainless steel (AISI 316) |
| Seal material | FPM |
| Series | Series 526 |
| Weight | 0.15 kg |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 105261212 |
| Zolltarifnummer | 73079910 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
