Plastic silencer, Steel net and cotton strip filling, G 1/2 - Riegler 113385

Plastic silencer, Steel net and cotton strip filling, G 1/2, Operating pressure max. 12 bar, Operating temperature -20 °C to 70 °C Impurities are retained due to the steel mesh and cotton cloth filling

Technical data

Standards and origin

• Customs tariff number: 84819000
• Country of origin: IT

About Silencers

Silencers sit on the exhaust port of a valve and cut the noise made by escaping compressed air. The group runs from M5 up to G 2 male and covers operating pressures up to 20 bar.

What matters when choosing

• The thread follows the exhaust port of the valve. M5, parallel threads from G 1/8 to G 2 male and tapered R 1/8 and R 1/4 male are available.

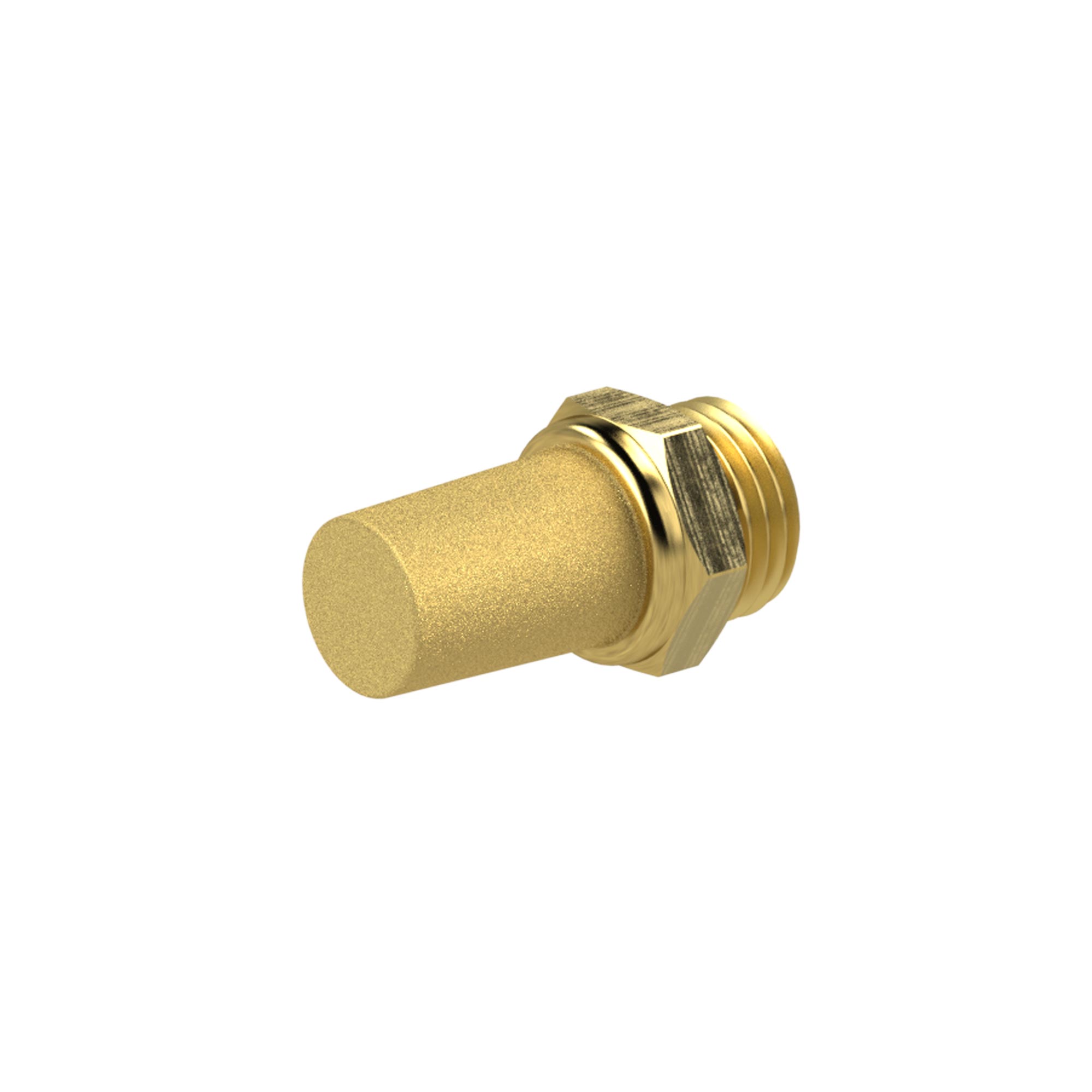

• The damping material sets the design and how easily the part can be cleaned. Sintered bronze is the compact basic version, perforated galvanised steel sheet and perforated sheet with polyester felt discs make up the high performance range, and stainless steel 1.4401 is there for corrosive surroundings.
• The housing is a choice between aluminium, galvanised sheet steel and POM, depending on how much weight and mechanical load the mounting point can take.
• On the small sizes there is a hexagonal version and a slotted one, which comes down to whether a spanner or a screwdriver is used for fitting.
• Operating temperature starts between -20 °C and 5 °C and ends between 70 °C and 600 °C depending on type. For hot exhaust air the figure of the specific item is what decides.

Typical applications

• Exhaust ports on directional valves and valve terminals
• Venting cylinders where the exhaust noise is a nuisance at the workplace
• Shut-off and venting valves in air preparation units
• Cycling assembly lines where every stroke produces an exhaust pulse
• Applications with hot exhaust air, served by the versions with a high temperature limit

Part of the thread range is made to DIN EN ISO 228-1. Materials used are sintered bronze, galvanised perforated sheet, polyester felt and stainless steel 1.4401, with housings in aluminium, galvanised sheet steel or POM.
