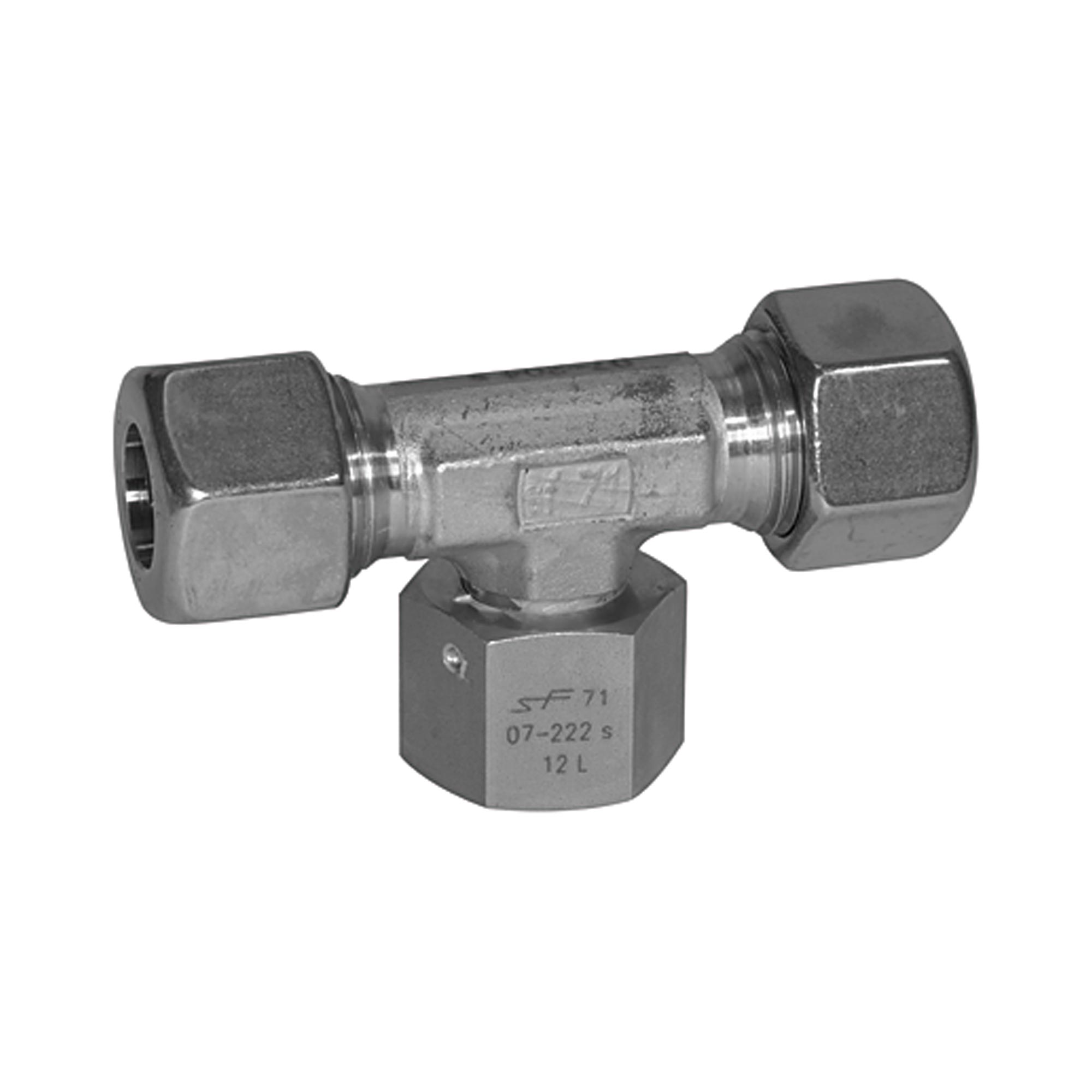

Adjustable T-fitting, Pipe exterior Ø 8 mm, galvanised steel - Riegler 112090

Adjustable T-fitting, Sealing cone, 360° rotating, Nut M14x1.5 i., Pipe exterior Ø 8 mm, PN max. 315 bar, galvanised steel

Technical data

Standards and origin

• Customs tariff number: 73079910
• Country of origin: IT

About Branch tees

Adjustable T-fittings take a third connection off a continuous line and let it be aligned through a full 360° before tightening. Sealing is by sealing cone, coupling nut and cutting ring. The group holds 39 items for tube outside diameters from 6 to 28 mm at PN 160 to 630 bar.

What matters when choosing

• Tube O.D.: 6 to 28 mm. All three ports share the same tube size in this series, so a separate reducer is needed for mixed cross sections.
• PN: 160 to 630 bar. Small sizes are listed at 315 or 630 bar and large sizes at 160 bar, with the highest pressure occurring in the circuit setting the requirement.
• Material: galvanised steel to DIN 2353 or 1.4571 stainless steel to DIN 2353, depending on surroundings and medium.
• Sealant: FKM is specified for part of the range and follows the temperature and medium of the line.
• Widths across flats: three joints sit close together at a tee, so check tool access before assembly.

Typical applications

• Branching a control or gauge line off the main pressure line of a hydraulic power unit
• Connecting pressure gauges and pressure switches without interrupting the main run
• Feeding two cylinders or valves in parallel from a single line
• Extending existing pipework to serve one more consumer
• Ring mains and collection points in plants with several consumers

All 39 items are made to DIN 2353, in galvanised steel or in 1.4571 stainless steel. The stated country of origin is Italy or Germany.
