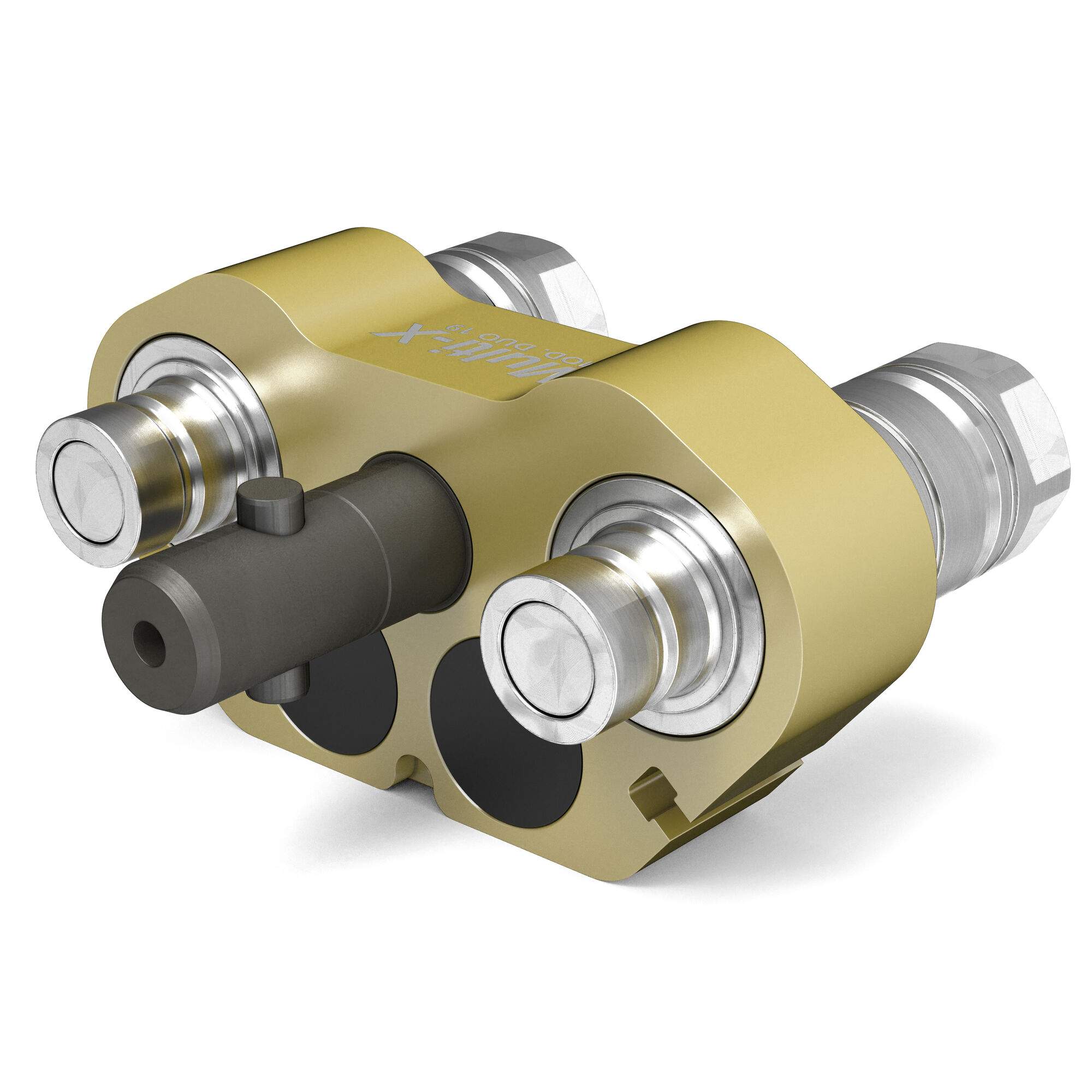

Multi-X multi coupling, male plate Duo 19 with pressure eliminator, 2 connections, G 3/4" - Cejn 109325252
Male plate of a hand operated Multi-X multi coupling in size Duo 19 for hydraulics. It brings together 2 lines with a nominal flow diameter of 19 mm, connection per line G 3/4". Body made of aluminium.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
As the male plate of Multi-X size Duo 19 this part bundles 2 hydraulic lines with a nominal flow diameter of 19 mm on one plate. The counterpart is the female plate.
Benefits
- Size Duo 19, 3/4" in inch.
- Plate body made of aluminium.
- Pressure eliminators are part of the equipment of this male plate.
- Version GII of the Multi-X series.
- Weight 3.6 kg.
- 2 hydraulic connections are coupled by hand in one move.
- Connection thread G 3/4" (BSP) per line.
- Nominal flow diameter of 19 mm in the through bore.
Applications
The plate belongs in hydraulic circuits where 2 lines are disconnected and reconnected together, for example when changing attachments and tools.
Matching counterpart
The plate matches the female plate of Multi-X size Duo 19 in version GII.
Technical data
| Property | Value |
|---|---|
| Series | Duo 19 |
| Version | Male plate |
| Size in inch | 3/4" |
| Number of connections | 2 |
| Connection | G 3/4" (BSP) |
| Nominal flow diameter | 19 mm |
| Main material | Aluminum |
| Media | Hydraulic oil |
| Weight | 3.6 kg |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 109325252 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
