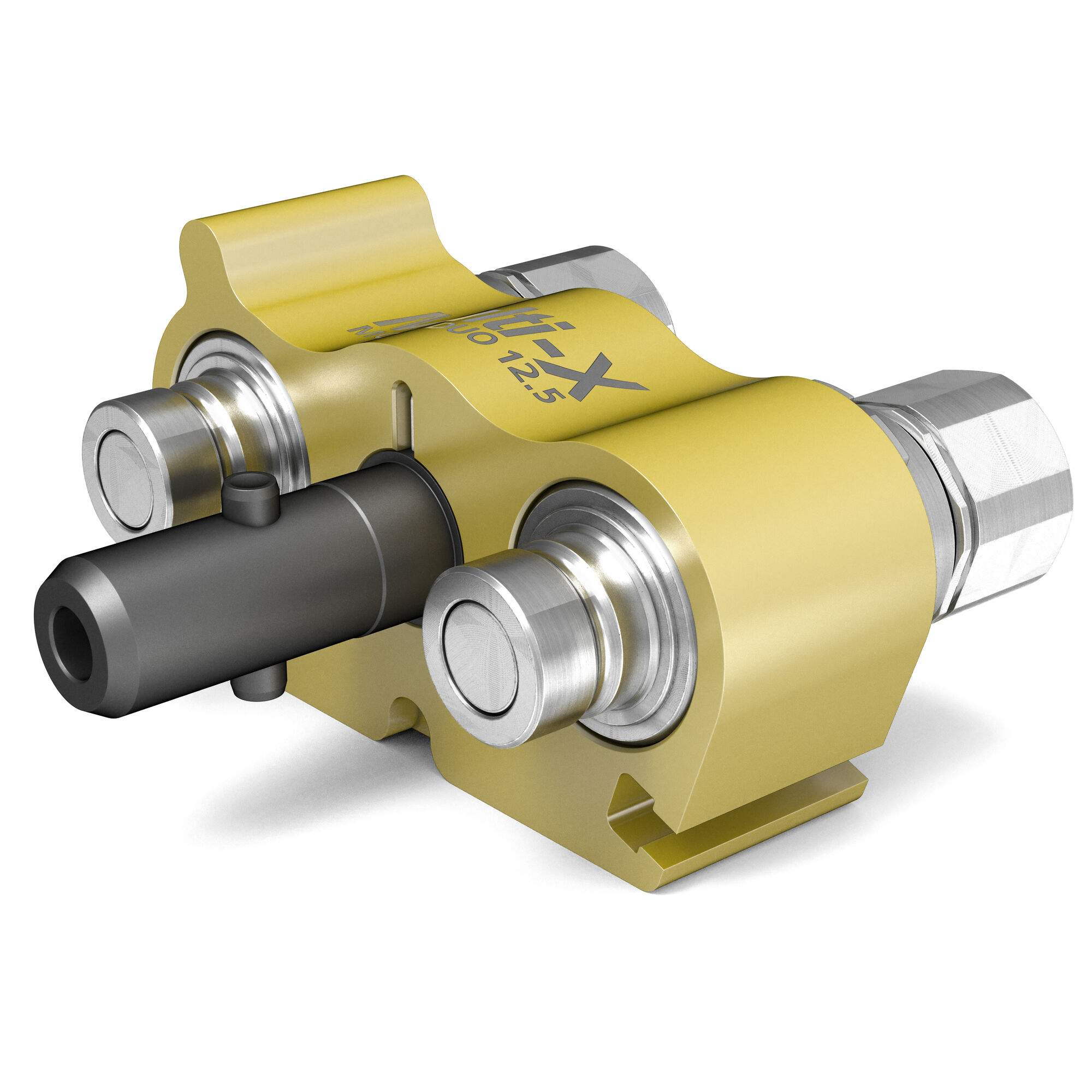

Multi-X multi coupling, male plate Duo 12.5 with pressure eliminator, 2 connections, G 1/2" - Cejn 109322251

As the male plate of Multi-X size Duo 12.5 this part bundles 2 hydraulic lines with a nominal flow diameter of 12.5 mm on one plate. The counterpart is the female plate.

Benefits

• Size Duo 12.5, 1/2" in inch.
• Plate body made of aluminium.
• Pressure eliminators are part of the equipment of this male plate.
• Version GII of the Multi-X series.
• Weight 1.9 kg.
• 2 hydraulic connections are coupled by hand in one move.
• Connection thread G 1/2" (BSP) per line.
• Nominal flow diameter of 12.5 mm in the through bore.

Applications

The plate belongs in hydraulic circuits where 2 lines are disconnected and reconnected together, for example when changing attachments and tools.

Matching counterpart

The plate matches the female plate of Multi-X size Duo 12.5 in version GII.
