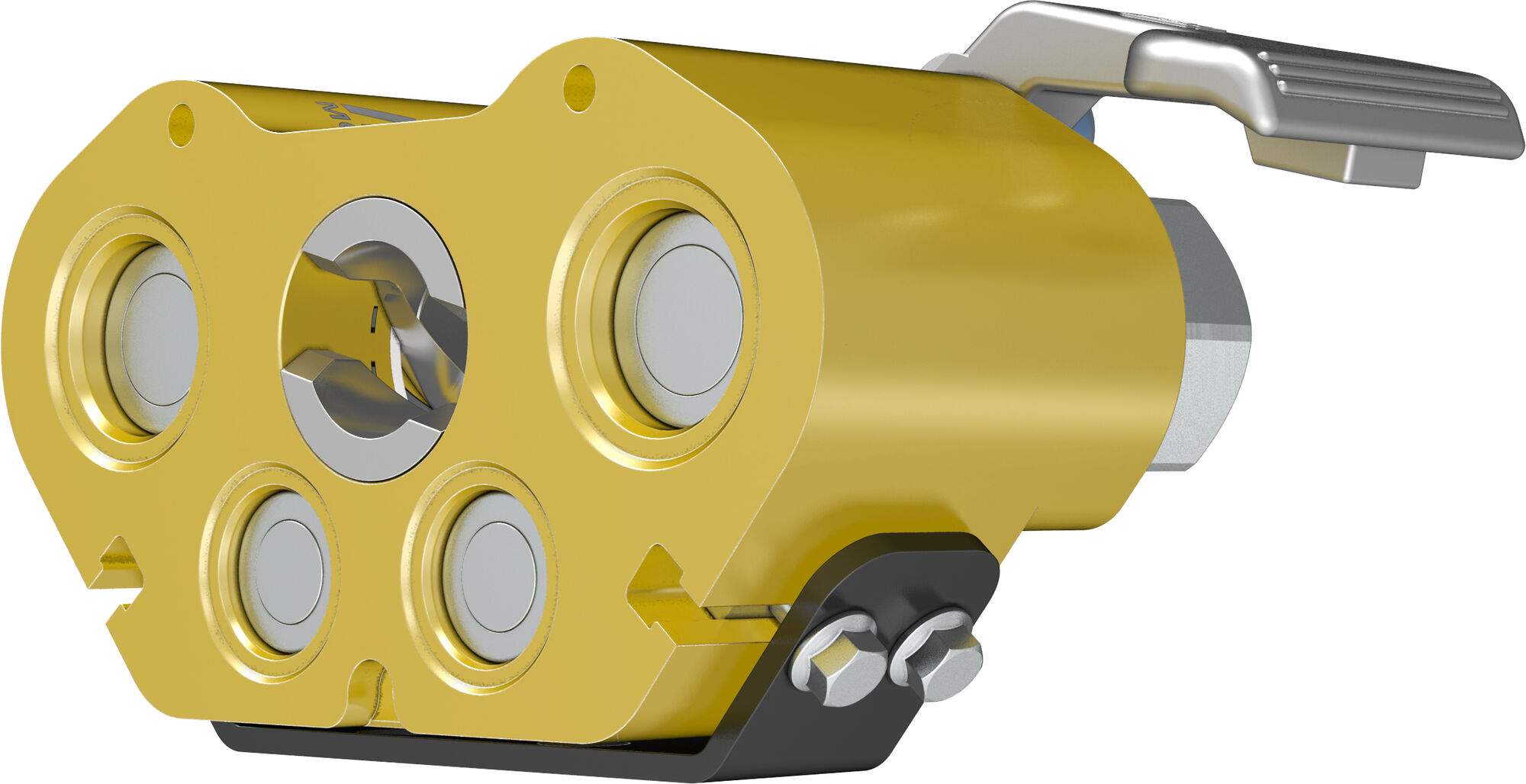

Multi-X multi coupling, female plate Quattro 12.5/19, 4 connections, WEO, 12.5 mm, aluminium - Cejn 109325100
Multi-X female plate in size Quattro 12.5/19 with 4 connections of nominal flow diameter 12.5 mm. The lines are connected through WEO. Plate body made of aluminium.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
As the female plate of Multi-X size Quattro 12.5/19 this part bundles 4 hydraulic lines with a nominal flow diameter of 12.5 mm on one plate. The counterpart is the male plate.
Benefits
- Version GII of the Multi-X series.
- 4 hydraulic connections are coupled by hand in one move.
- Connection WEO per line, plug-in WEO connection.
- Nominal flow diameter of 12.5 mm in the through bore.
- Size Quattro 12.5/19, 1/2" / 3/4" in inch.
- Plate body made of aluminium.
Applications
A typical use is on machines and power units with changeable equipment where 4 lines are coupled in one operation.
Matching counterpart
The plate matches the male plate of Multi-X size Quattro 12.5/19 in version GII.
Technical data
| Property | Value |
|---|---|
| Series | Quattro 12.5/19 |
| Version | Female plate |
| Size in inch | 1/2" / 3/4" |
| Number of connections | 4 |
| Connection | WEO |
| Nominal flow diameter | 12.5 mm |
| Main material | Aluminum |
| Media | Hydraulic oil |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 109325100 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
