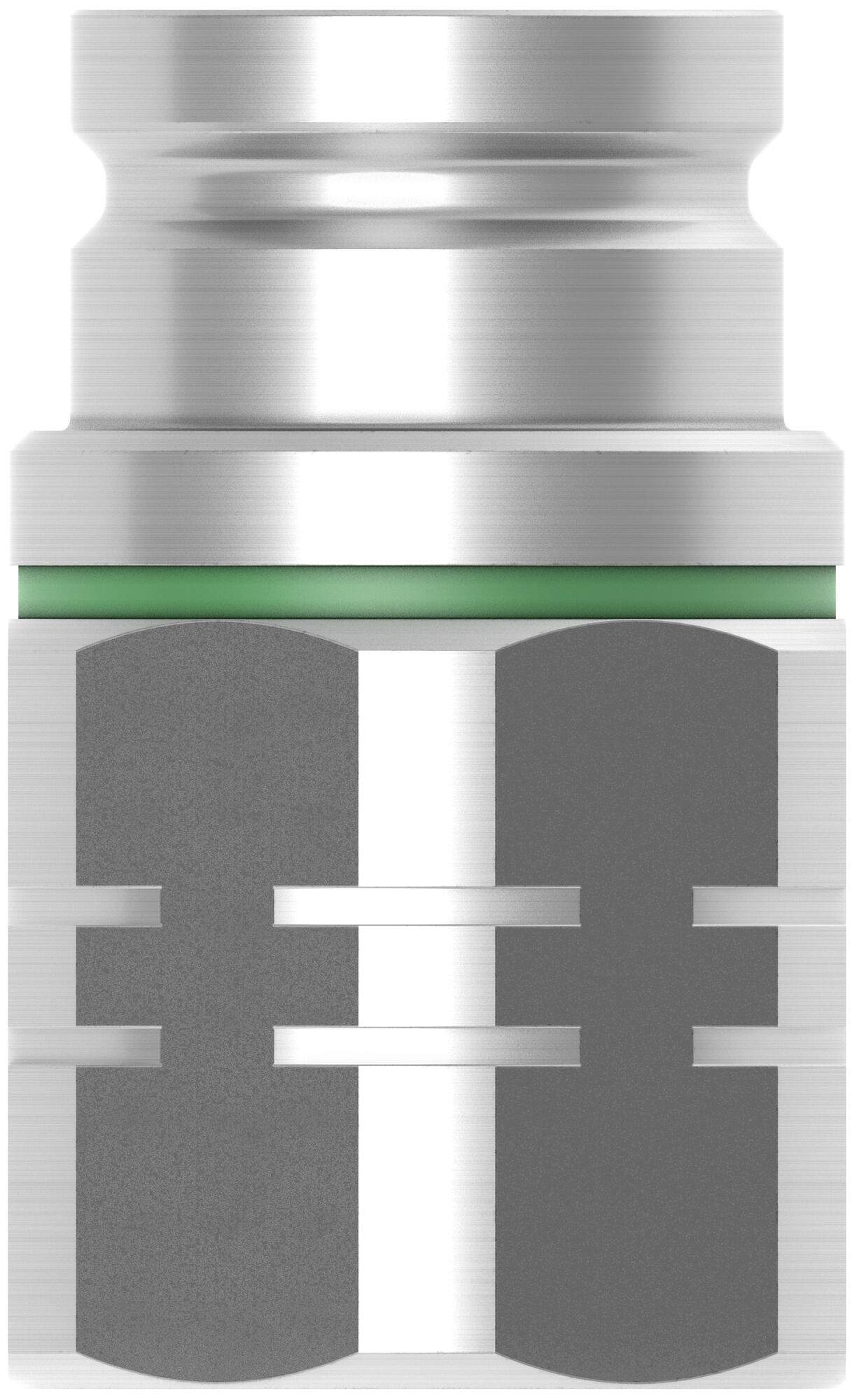

Non-drip coupling nipple, with valve, G 1" female thread, DN 19, stainless steel - Cejn 107776210
Where medium and surroundings have to stay clean, this coupling nipple connects through a G 1" female thread. The stainless steel (AISI 316) body and the FPM seal determine the resistance. Nominal flow diameter 19 mm, working pressure up to 20 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where the surroundings and the medium have to stay clean, this coupling nipple connects through a G 1" female thread. A stainless steel (AISI 316) body, a FPM seal, 19 mm nominal flow diameter and a working pressure of up to 20 bar describe its operating window.
Benefits
- Modular design of the series, couplings and nipples combine freely.
- Version with valve, the line is shut off when parting.
- Stainless steel AISI 316 as body material.
- Weight 0.36 kg per piece.
Applications
The series is used in thermal management, where safe, easy to operate and reliable quick disconnects are required. The non-drip design protects the surroundings from escaping medium.
Materials and marking
The body is made of AISI 316 stainless steel. The seal material is FPM. Colour coding and key coding are available for the series on request.
Technical data
| Design | Nipples with valve |
|---|---|
| Thread form | Female thread |
| Coupling type | Flat-face quick couplings |
| Connection | G 1" |
| Nominal flow diameter | 19 mm |
| Max. working pressure | 20 bar |
| Main material | Stainless steel (AISI 316) |
| Seal material | FPM |
| Weight | 0.36 kg |
| Packaging unit | 1 piece |
| Manufacturer number | 107776210 |
| Manufacturer | Cejn |
| Hersteller-Nr | 107776210 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
