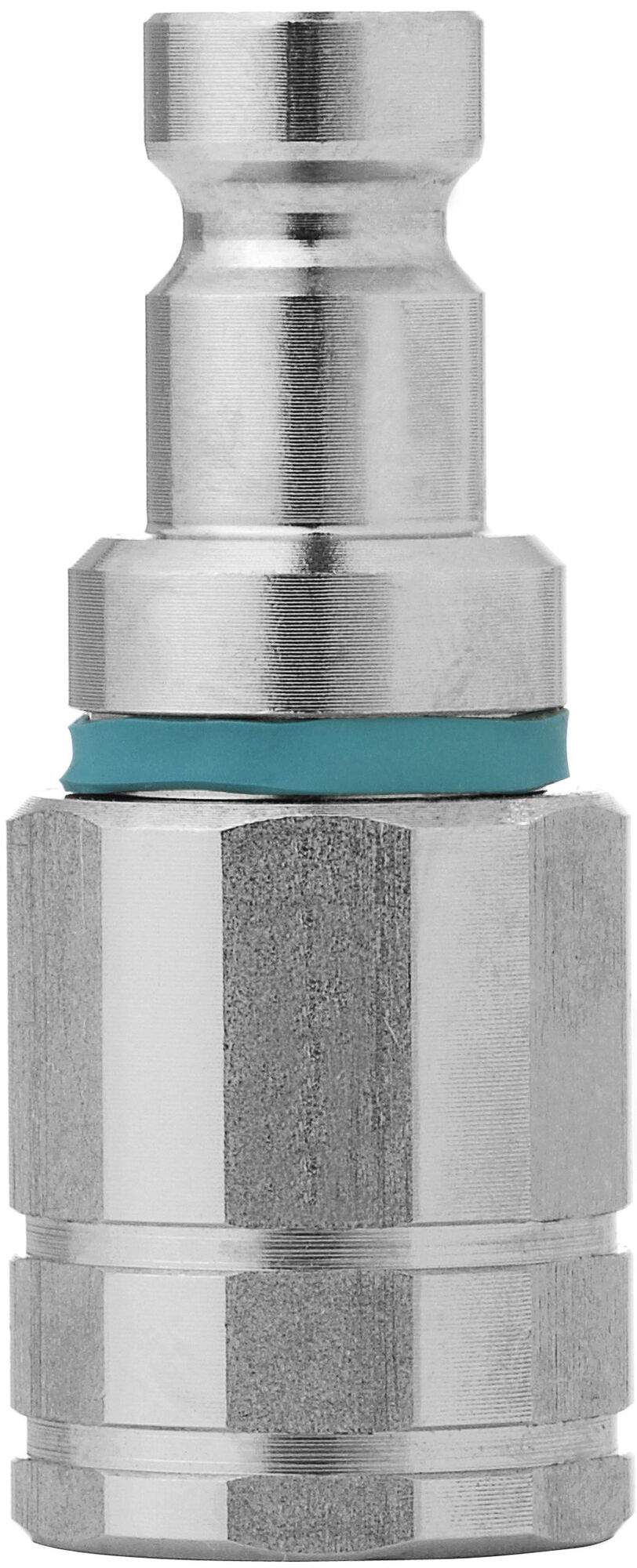

Non-drip coupling nipple, with valve, G 1/4" female thread, DN 4, stainless steel - Cejn 102776210

The coupling nipple connects through a G 1/4" female thread and parts practically without dripping. It is rated for 20 bar, carries 4 mm nominal flow diameter and has a body made of stainless steel (AISI 316).

Benefits

• Flat-face parting line, therefore practically no residue when disconnecting.
• Nominal flow diameter 4 mm as a fixed figure for the flow range.
• Permissible working pressure 20 bar.
• Body made of stainless steel (AISI 316).
• Seal made of FPM.

Applications

The modular design allows couplings and nipples of the series to be matched to the given system requirement. Applications lie in thermal management and in media circuits with frequent disconnections.

Materials and marking

The body is made of AISI 316 stainless steel. The seal material is FPM. Colour coding and key coding are available for the series on request.
