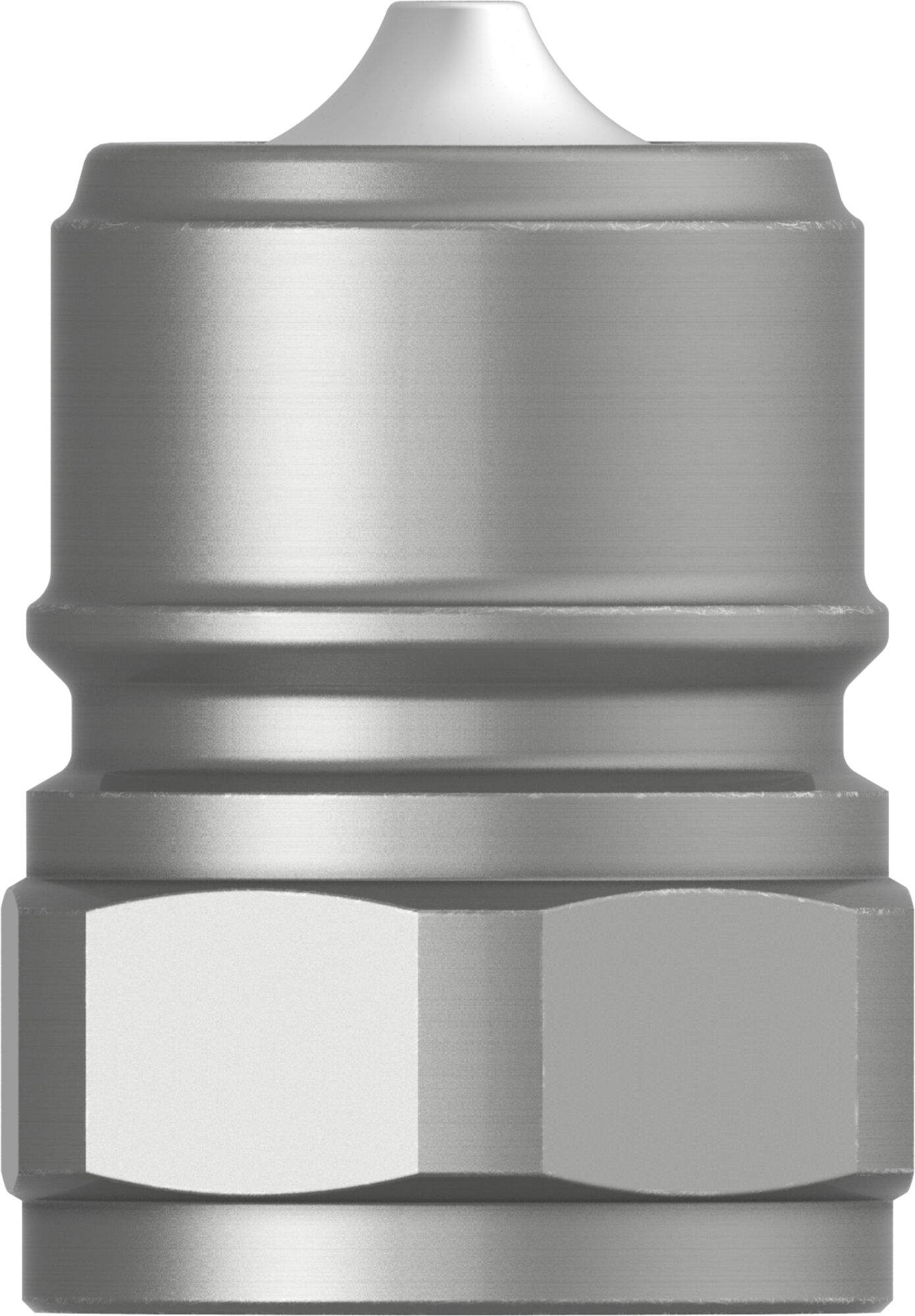

Coupling nipple, female thread G 3/4", DN 20, 280 bar, Steel/NBR - Cejn 105256207
This coupling nipple connects hydraulic lines through female thread G 3/4". It is rated for 280 bar when connected, with a minimum burst pressure of 1000 bar. The main material is steel with NBR seals.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This coupling nipple connects hydraulic lines through female thread G 3/4" and is rated for 280 bar working pressure when connected. The poppet type design is stated by the manufacturer under connection type. Series 525 relies on steel with a zinc-nickel surface.
Features
- Steel with zinc-nickel surface for long service life.
- Poppet type design according to the manufacturer data on connection type.
- 280 bar working pressure when connected, minimum burst pressure 1000 bar.
- Female thread G 3/4" for direct installation, body size ISO-DN 20.
- Steel as main material, seals made of NBR.
- Manually operated locking ring of series 525 against involuntary disconnection.
Applications
The range is used in hydraulic systems that are disconnected and reconnected often. Body size ISO-DN 20 with female thread G 3/4" suits lines carried up to 280 bar when coupled.
Materials and marking
The body size is stated as ISO-DN 20 and the connection size as 3/4". The manufacturer names Steel as main material and NBR as seal material.
Technical data
| Product type | Coupling nipple |
|---|---|
| Design | Female thread |
| Body size ISO-DN | 20 |
| Size in inches | 3/4" |
| Connection type | Poppet type coupling |
| Connection | G 3/4" |
| Max. working pressure connected | 280 bar |
| Min. burst pressure connected | 1000 bar |
| Main material | Steel |
| Seal material | NBR |
| Series | Series 525 |
| Weight | 0.195 kg |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 105256207 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
