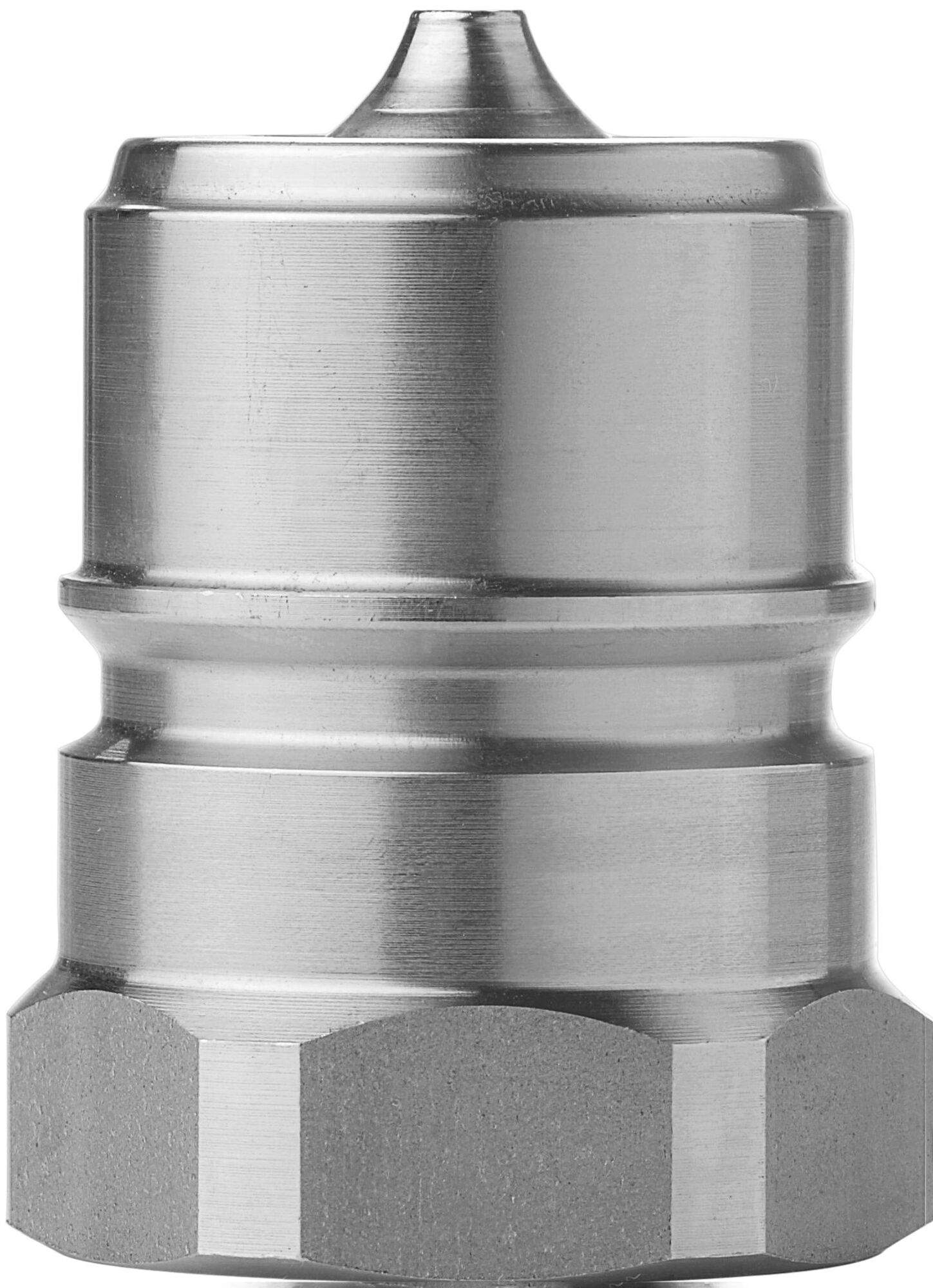

Coupling nipple, female thread G 3/4", DN 20, 200 bar, Stainless steel AISI 316/FPM - Cejn 105266217
This coupling nipple connects hydraulic lines through female thread G 3/4". It is rated for 200 bar when connected, with a minimum burst pressure of 1000 bar. The main material is stainless steel (AISI 316) with FPM seals.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This coupling nipple connects hydraulic lines through female thread G 3/4" and is rated for 200 bar working pressure when connected. The poppet type design is stated by the manufacturer under connection type. Series 526 relies on stainless steel throughout.
Features
- All parts made of stainless steel AISI 316 for tough environments.
- Poppet type design according to the manufacturer data on connection type.
- 200 bar working pressure when connected, minimum burst pressure 1000 bar.
- Female thread G 3/4" for direct installation, body size ISO-DN 20.
- Stainless steel (AISI 316) as main material, seals made of FPM.
- Manually operated locking ring of series 526 against involuntary disconnection.
Applications
The range is used in hydraulic systems that are disconnected and reconnected often. Body size ISO-DN 20 with female thread G 3/4" suits lines carried up to 200 bar when coupled.
Materials and marking
The body size is stated as ISO-DN 20 and the connection size as 3/4". The manufacturer names Stainless steel (AISI 316) as main material and FPM as seal material. The main material is identified as stainless steel grade AISI 316.
Technical data
| Product type | Coupling nipple |
|---|---|
| Design | Female thread |
| Body size ISO-DN | 20 |
| Size in inches | 3/4" |
| Connection type | Poppet type coupling |
| Connection | G 3/4" |
| Max. working pressure connected | 200 bar |
| Min. burst pressure connected | 1000 bar |
| Main material | Stainless steel (AISI 316) |
| Seal material | FPM |
| Series | Series 526 |
| Packaging unit | 1 piece |
| Manufacturer | Cejn |
| Hersteller-Nr | 105266217 |
| Zolltarifnummer | 84812010 |
| GPSR Herstellerdaten | CEJN-Product GmbH, Junkersring 16, DE-53844 Troisdorf, www.cejn.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
