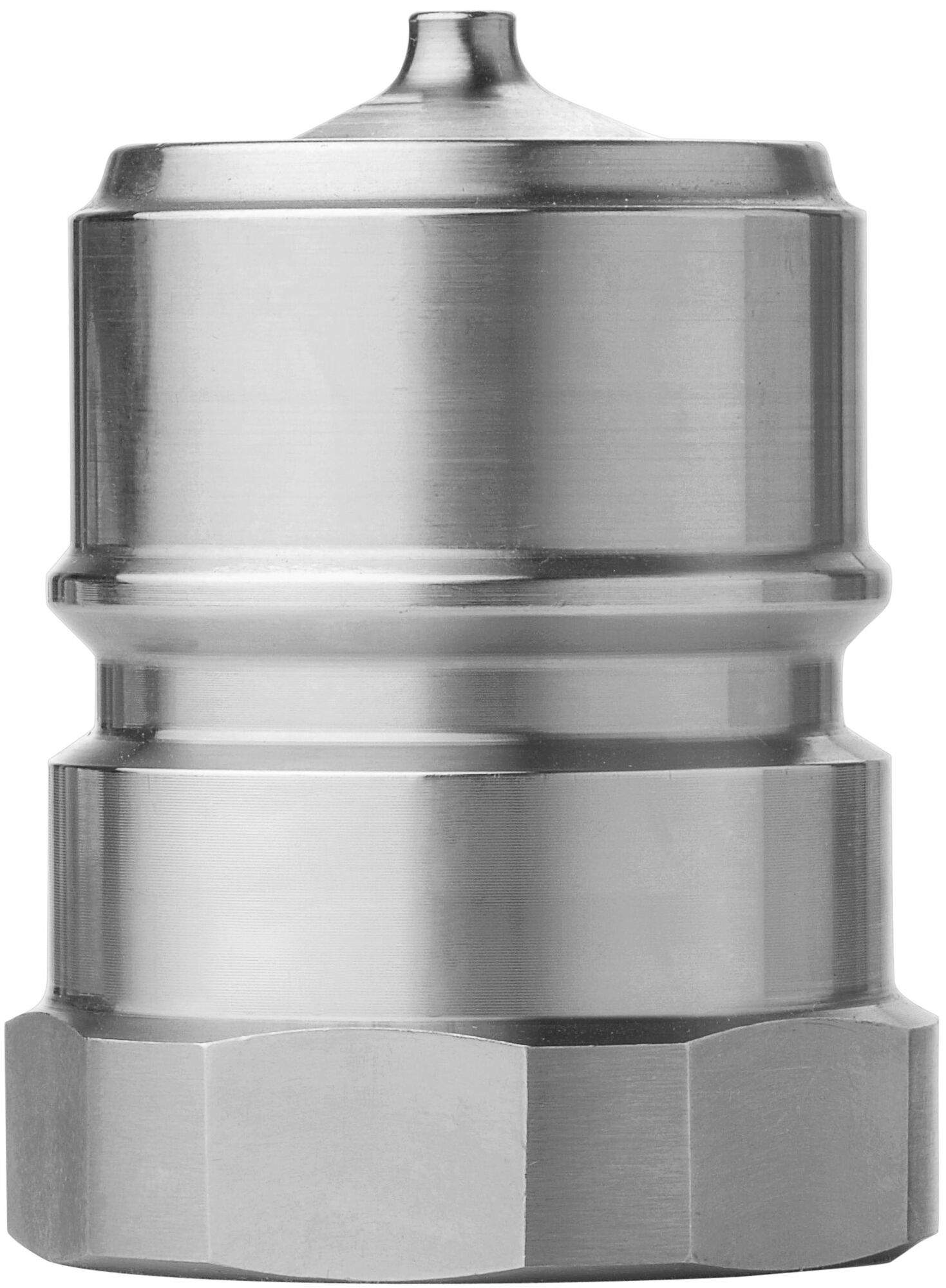

Coupling nipple, female thread G 1", DN 25, 200 bar, Stainless steel AISI 316/FPM - Cejn 105266219

In hydraulic circuits of body size ISO-DN 25, this coupling nipple provides the tool-free connection and carries up to 200 bar when coupled. The poppet type design is stated by the manufacturer under connection type. A manually operated locking ring of series 526 secures the joint against involuntary disconnection.

Features

• Poppet type design according to the manufacturer data on connection type.
• 200 bar working pressure when connected, minimum burst pressure 800 bar.
• Female thread G 1" for direct installation, body size ISO-DN 25.
• Stainless steel (AISI 316) as main material, seals made of FPM.
• Manually operated locking ring of series 526 against involuntary disconnection.
• All parts made of stainless steel AISI 316 for tough environments.

Applications

Typical installations are hydraulic lines with female thread G 1" where a fast change is required. The manufacturer names tough applications and environments as the target area of series 526.

Materials and marking

The body size is stated as ISO-DN 25 and the connection size as 1". The manufacturer names Stainless steel (AISI 316) as main material and FPM as seal material. The main material is identified as stainless steel grade AISI 316.
