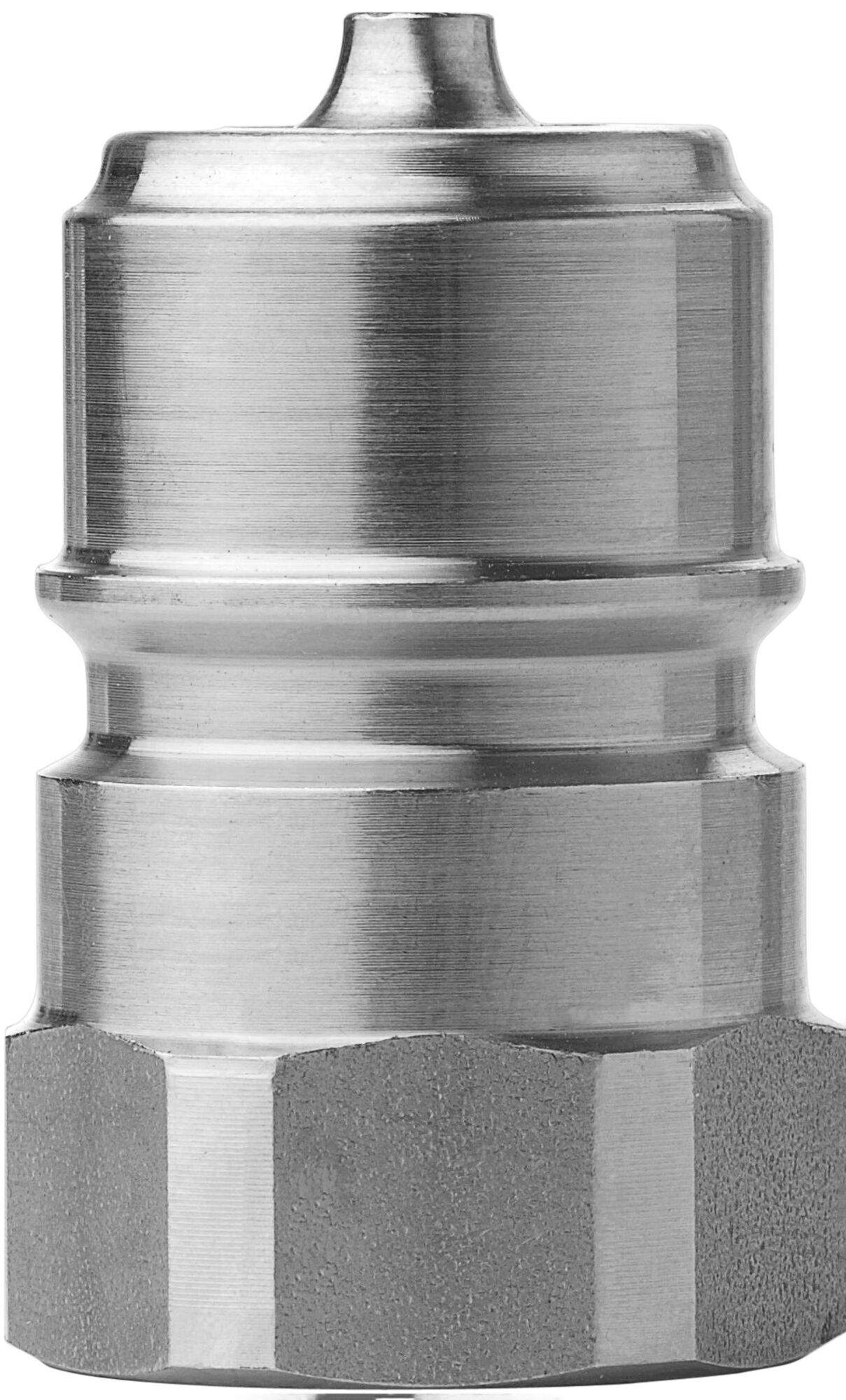

Coupling nipple, female thread G 1/2", DN 12.5, 300 bar, Stainless steel AISI 316/FPM - Cejn 105266215

Rated at 300 bar working pressure when connected and 1200 bar minimum burst pressure, this coupling nipple serves hydraulic lines with female thread G 1/2". The poppet type design is stated by the manufacturer under connection type. A manually operated locking ring of series 526 secures the joint against involuntary disconnection.

Features

• Manually operated locking ring of series 526 against involuntary disconnection.
• All parts made of stainless steel AISI 316 for tough environments.
• Poppet type design according to the manufacturer data on connection type.
• 300 bar working pressure when connected, minimum burst pressure 1200 bar.
• Female thread G 1/2" for direct installation, body size ISO-DN 12.5.
• Stainless steel (AISI 316) as main material, seals made of FPM.

Applications

On hydraulic lines of body size ISO-DN 12.5 the item forms the separable joint. It stays loadable up to 300 bar when coupled, the minimum burst pressure is 1200 bar.

Materials and marking

The body size is stated as ISO-DN 12.5 and the connection size as 1/2". The manufacturer names Stainless steel (AISI 316) as main material and FPM as seal material. The main material is identified as stainless steel grade AISI 316.
