In service the pair of clamping jaws holds tubes and hoses on a mounting rail with little vibration. The decisive figure is a tube outside diameter of 22 mm. Dimensions tube Ø 22 mm, H 54.5 mm, made of polypropylene.

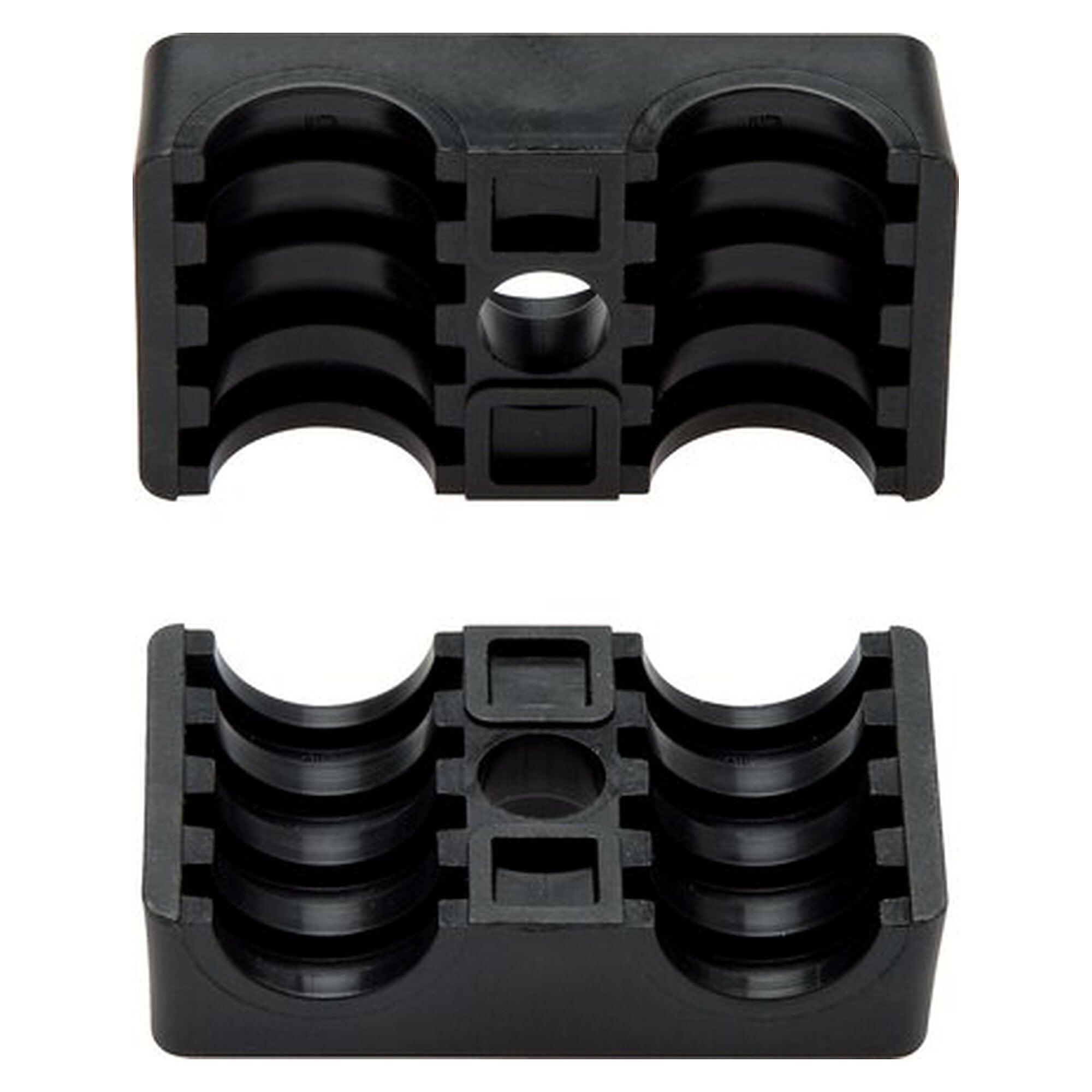

Pair of pipe clamp jaws DIN 3015, tube Ø 22 mm, size 3, twin, polypropylene
HYDAC
Original product
Net price (excl. VAT)
€2.07
Item
FL-005485
Manufacturer no.
GR 322 DOKP
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.GR 322 DOKP
EAN4050571334772
Customs tariff number39174000
ConditionNew
Artikel
FL-005485
Frequently Bought Together
This pair of clamping jaws holds tubes and hoses on a mounting rail with little vibration. The data state a tube outside diameter of 22 mm. The stated material is polypropylene.
Benefits
- For a tube outside diameter of 22 mm to DIN 3015.
- Size 3, twin at 54.5 mm height.
- Mounting dimensions a1 36 mm, a2 70 mm, a3 67 mm and a4 64 mm.
- Material polypropylene as per the data sheet.
Technical data
| Material | polypropylene |
|---|---|
| Size | size 3, twin |
| Tube diameter (outside) [mm] | 22 |
| Height H [mm] | 54.5 |
| Dimension a1 [mm] | 36 |
| Dimension a2 [mm] | 70 |
| Dimension a3 [mm] | 67 |
| Dimension a4 [mm] | 64 |
Applications
The pair of clamping jaws is used wherever it has to fix tubes and hoses with little vibration.
Standards and conformity
The version complies with DIN 3015.
| Weight | 0.028000 |
|---|---|
| Manufacturer | Hydac |
| Hersteller-Nr | GR 322 DOKP |
| EAN | 4050571334772 |
| Zolltarifnummer | 39174000 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Polypropylene |
| Rohrdurchmesser (außen) [mm] | 22 |
| Norm | DIN 3015 |
