HI Cupla ACE

Low Pressure up to 19 bar

The Nitto Kohki HI Cupla ACE is a low-spill plastic quick coupling for compressed air, nitrogen and water with an operating pressure up to approx. 1.5 MPa (15 bar). Valved on both ends, light PBT/POM body.

As an authorised Nitto Kohki distributor we stock 25 variants of the HI Cupla ACE - bodies in plastic (PBT/POM), NBR seals, model series 20/30-PLA. Built to ISO 6150-B.

⚡up to approx. 1.5 MPa (15 bar) - operating-pressure range for compressed air, nitrogen and water

⚙plastic (PBT/POM) - body materials; NBR seals

✓Key feature - Valved on both ends, light PBT/POM body

🔩25 variants in stock - model series 20/30-PLA

🛡ISO 6150-B - standard-compliant design

Parameter	Value
Type	low-spill plastic quick coupling
Operating pressure	up to approx. 1.5 MPa (15 bar)
Body materials	plastic (PBT/POM)
Seals	NBR
Media	compressed air, nitrogen and water
Model series	20/30-PLA
Standard	ISO 6150-B
Variants in range	25

Typical applications: compressed-air supply in production and assembly, pneumatic tools, assembly and production lines, workshop and tyre service.

25 variants in stockHI Cupla ACE - 20/30-PLA

up to approx. 1.5 MPa (15 bar)plastic (PBT/POM), NBR

Technical data from the manufacturer catalogue

Series	HI CUPLA ACE
Body material	Engineering plastics (PBT, POM)
Seal material	NBR (Nitrile rubber)
Max working pressure	1.5 MPa {15 kgf/cm2}; 1.0 MPa {10 kgf/cm2} for plastic plug and Model HA-T
Working temperature	NBR (Nitrile rubber), standard material: -20 °C to +60 °C
Valve structure	One-way shut-off
Applicable fluids	Air, Water
Vacuum service	Not suitable for vacuum application in either connected or disconnected condition.
Size range	Thread and hose barb 1/4 inch, 3/8 inch; PN, SN, PNG and SNG types for ø5 mm x ø8 mm, ø6 mm x ø9 mm, ø6.5 mm x ø10 mm, ø8 mm x ø12 mm and ø8.5 mm x ø12.5 mm polyurethane hose
Catalogue page	C01en-b, 61

Operating principle

On disconnection the valve in the socket closes the supply line. The fluid left in the plug escapes.

Connecting sequence of a ball locking quick connect coupling.

The weight is merely a quarter of steel HI CUPLA's and smooth push-in connection is achieved.
Separation prevention mechanism for safety operation.
Pressure ratings comparable to steel CUPLA.
A built-in separation prevention mechanism locks the sleeve upon connection, thus prevents accidental disconnection.
Just push plug into socket for simple connection.
The weight is a quarter of steel HI CUPLA for easy handling.
Can be used for air and water.
Air flows in either direction from plug or from socket side when coupled.

All models of the series

PH - Plastic plug / Hose barb

Model	Coupling part	Application	Plastic (g)	L	H	A	T	øBp	øBd
20PH-PLA	Plug	1/4 inch hose	3	49	14	21.5	9	5.5	7
30PH-PLA	Plug	3/8 inch hose	4	52	16	23.5	11.5	7.5	7

SH - Hose barb

Model	Coupling part	Application	Plastic (g)	L	T	øB	øA1	øA2

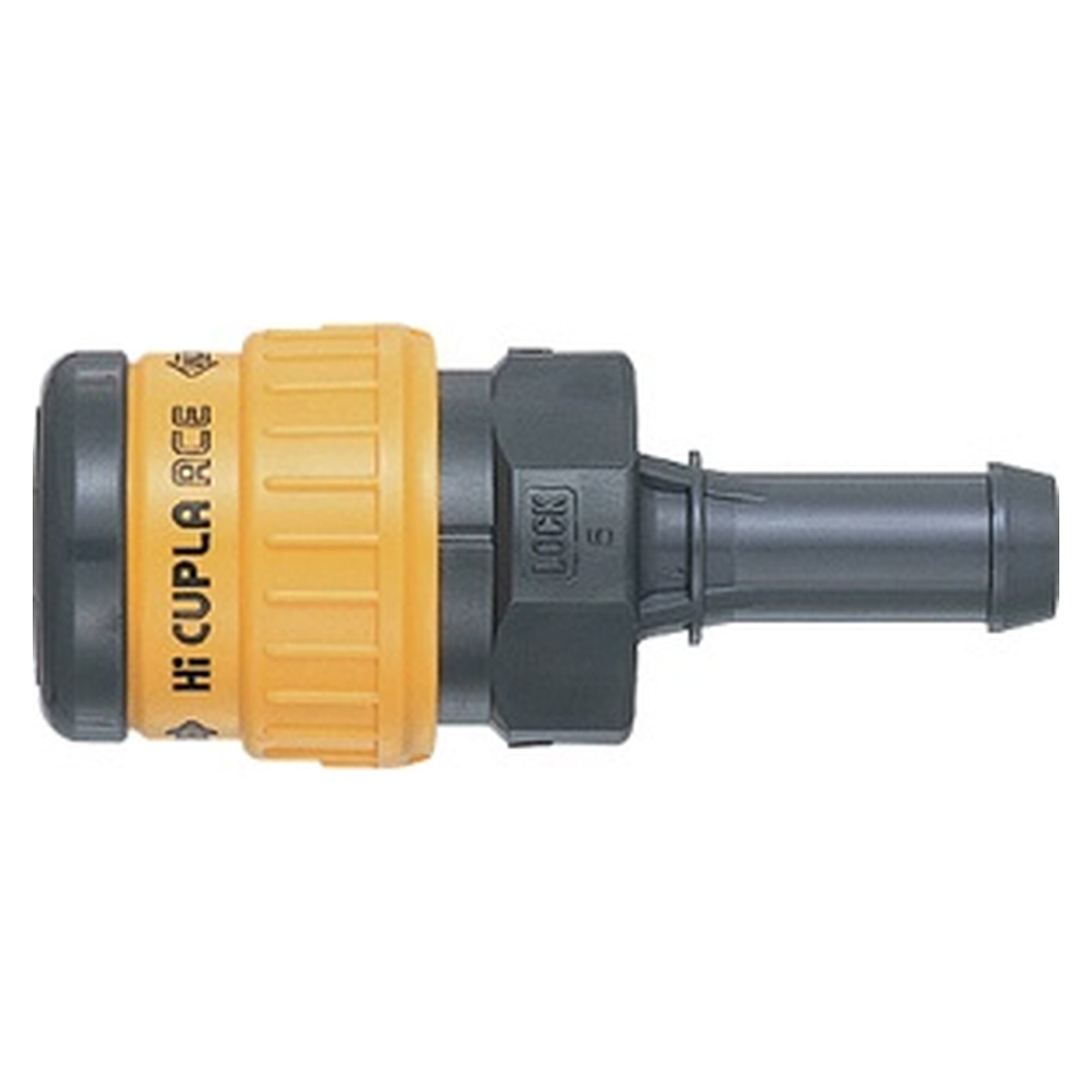

HA-20SH	Socket	1/4 inch hose	26	(65.5)	9	5	25.5	21.5
HA-30SH	Socket	3/8 inch hose	28	(68)	11.5	7	28	23.5

PM - Plastic plug / Male thread

Model	Coupling part	Application	Plastic (g)	T	øBp	øBd
20PM-PLA	Plug	Rc 1/4 thread	8	R 1/4	7.1	7.4
30PM-PLA	Plug	Rc 3/8 thread	6	R 3/8	10	7.4

SM - Male thread

Model	Coupling part	Application	Plastic (g)	T	øB

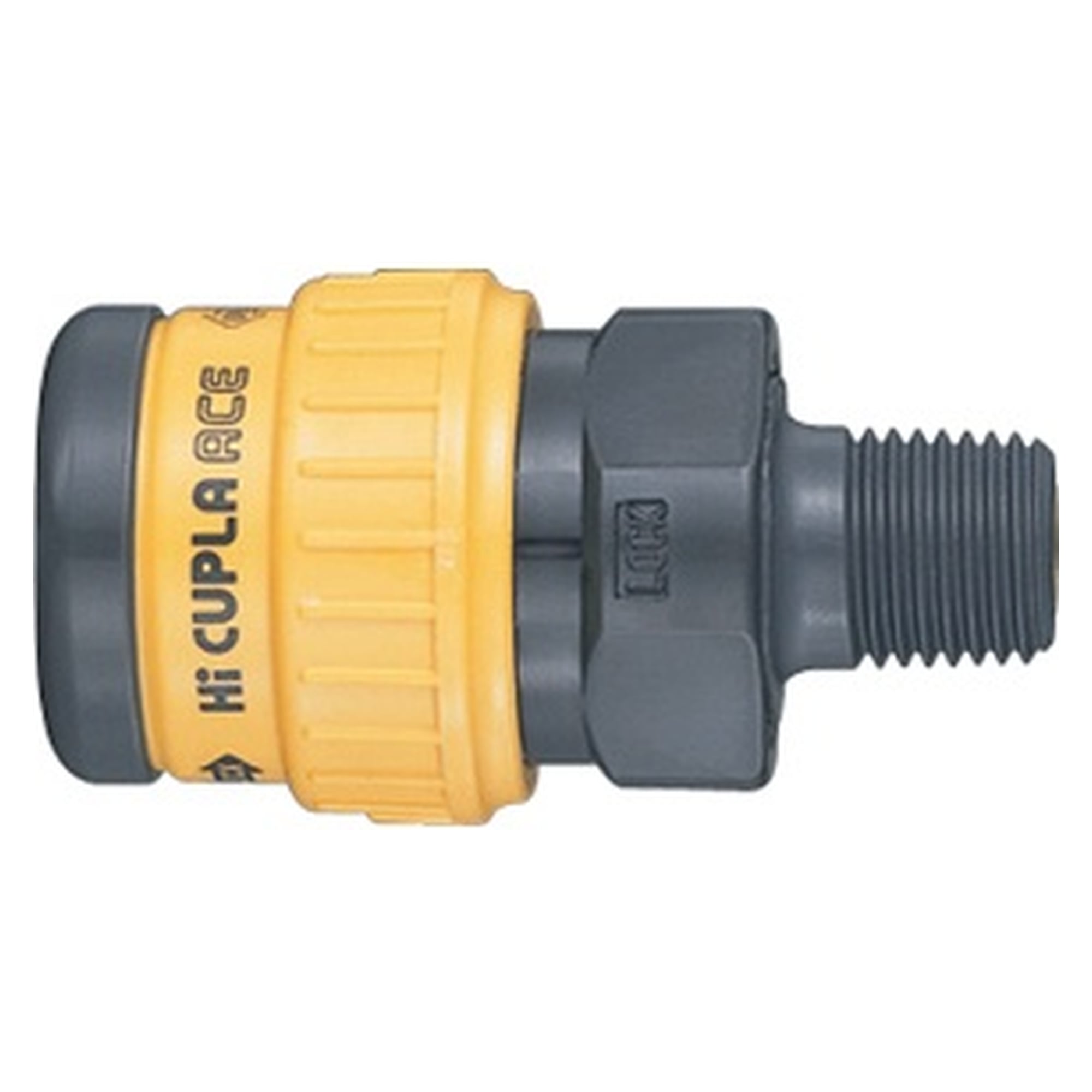

HA-20SM	Socket	Rc 1/4 thread	27	R 1/4	7.1
HA-30SM	Socket	Rc 3/8 thread	26	R 3/8	8

PN - Plastic plug / For urethane hose connection

Model	Coupling part	Application	Plastic (g)	L	H	øBp	øBd	øHp(WAF)
50PN-PLA	Plug	ø5 mm x ø8 mm hose	9	(46)	23	4	7	Hex.19
60PN-PLA	Plug	ø6 mm x ø9 mm hose	9	(46)	23	4.7	7	Hex.19
65PN-PLA	Plug	ø6.5 mm x ø10 mm hose	9	(46)	23	5.3	7	Hex.19

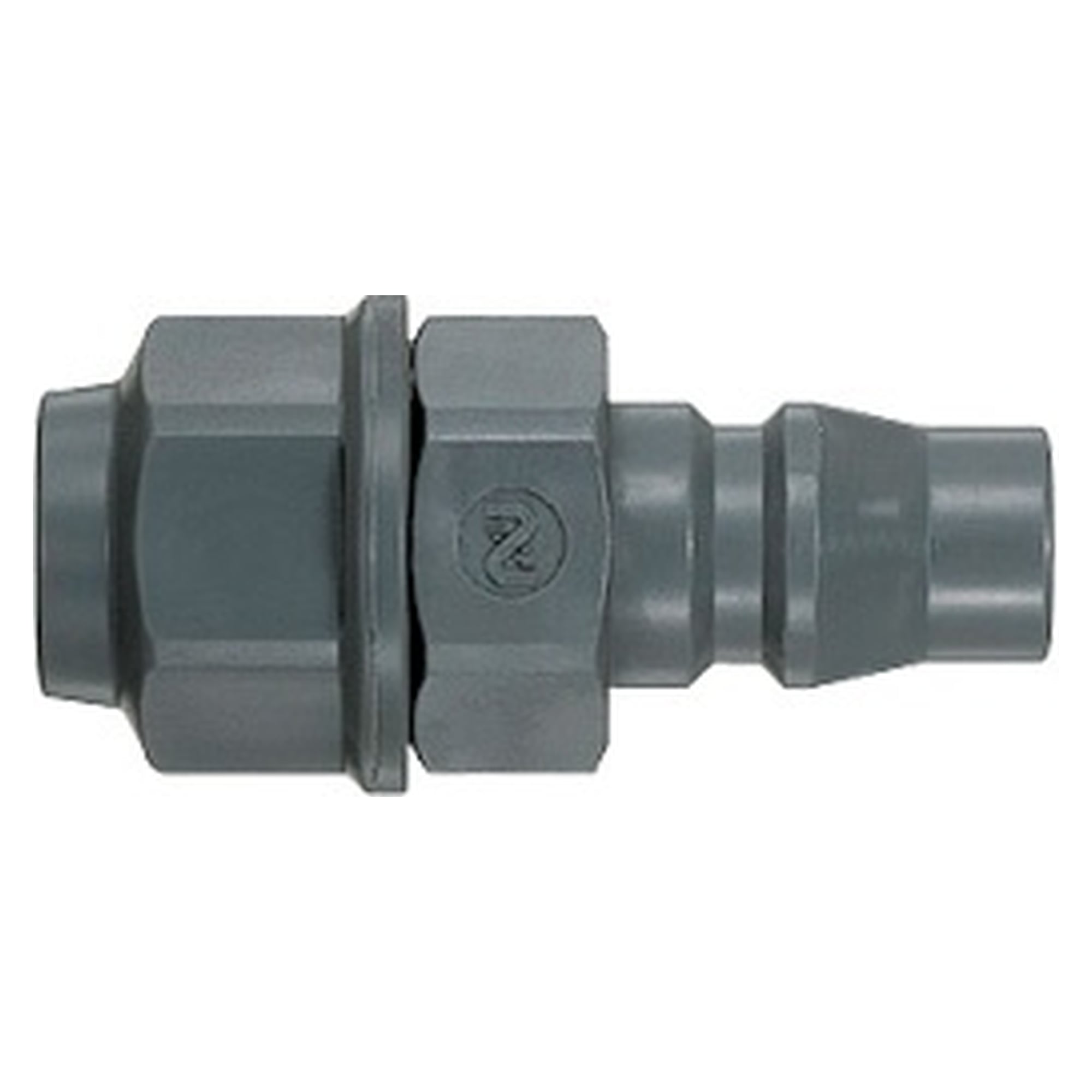

80PN-PLA	Plug	ø8 mm x ø12 mm hose	12	(48.5)	26	6.5	7	Hex.22
85PN-PLA	Plug	ø8.5 mm x ø12.5 mm hose	12	(48.5)	26	7	7	Hex.22

SN - For urethane hose connection

Model	Coupling part	Application	Plastic (g)	L	øB	øH(WAF)
HA-50SN	Socket	ø5 mm x ø8 mm hose	27	(57)	4	Hex.19
HA-60SN	Socket	ø6 mm x ø9 mm hose	27	(57)	4.7	Hex.19

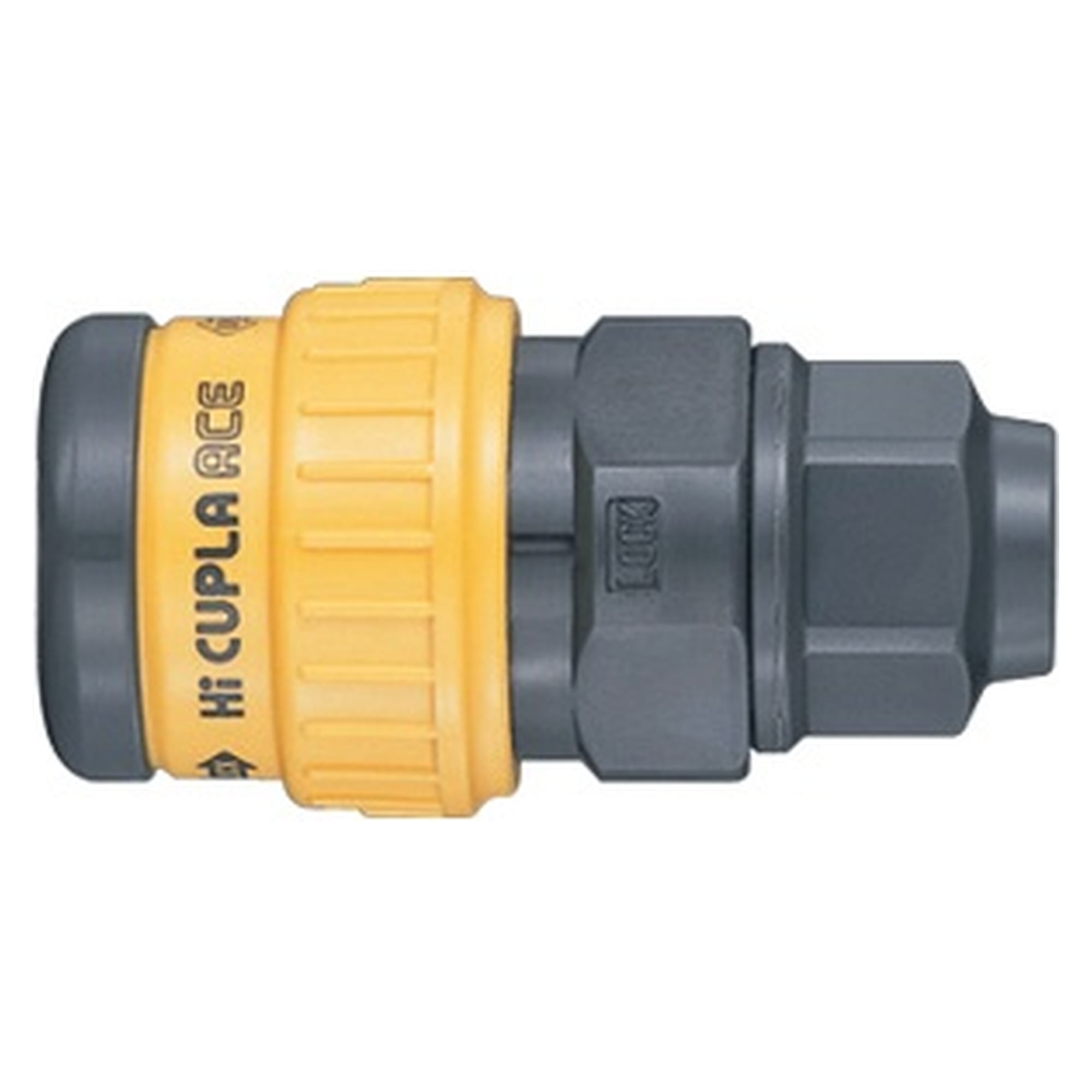

HA-65SN	Socket	ø6.5 mm x ø10 mm hose	27	(57)	5.3	Hex.19
HA-80SN	Socket	ø8 mm x ø12 mm hose	29	(59.5)	6.5	Hex.22
HA-85SN	Socket	ø8.5 mm x ø12.5 mm hose	29	(59.5)	7	Hex.22

PFF - Plastic plug / Parallel female thread

Model	Coupling part	Application	Plastic (g)
20PFF-PLA	Plug	G 1/4 thread	6

T - For two branch lines

Model	Coupling part	Application	Plastic (g)
HA-T	Socket	Inlet 20P-PLA / Outlet HA-65S (2 pcs.)	73

PNG - Plastic plug / For hose with hose guard nut connection

Model	Coupling part	Application	Plastic (g)	L	øD	A	øB	øH(WAF)
50PNG-PLA	Plug	ø5 mm x ø8 mm hose	14	(119)	23	(90)	4	Hex.19
65PNG-PLA	Plug	ø6.5 mm x ø10 mm hose	15	(119)	23	(90)	5.3	Hex.19

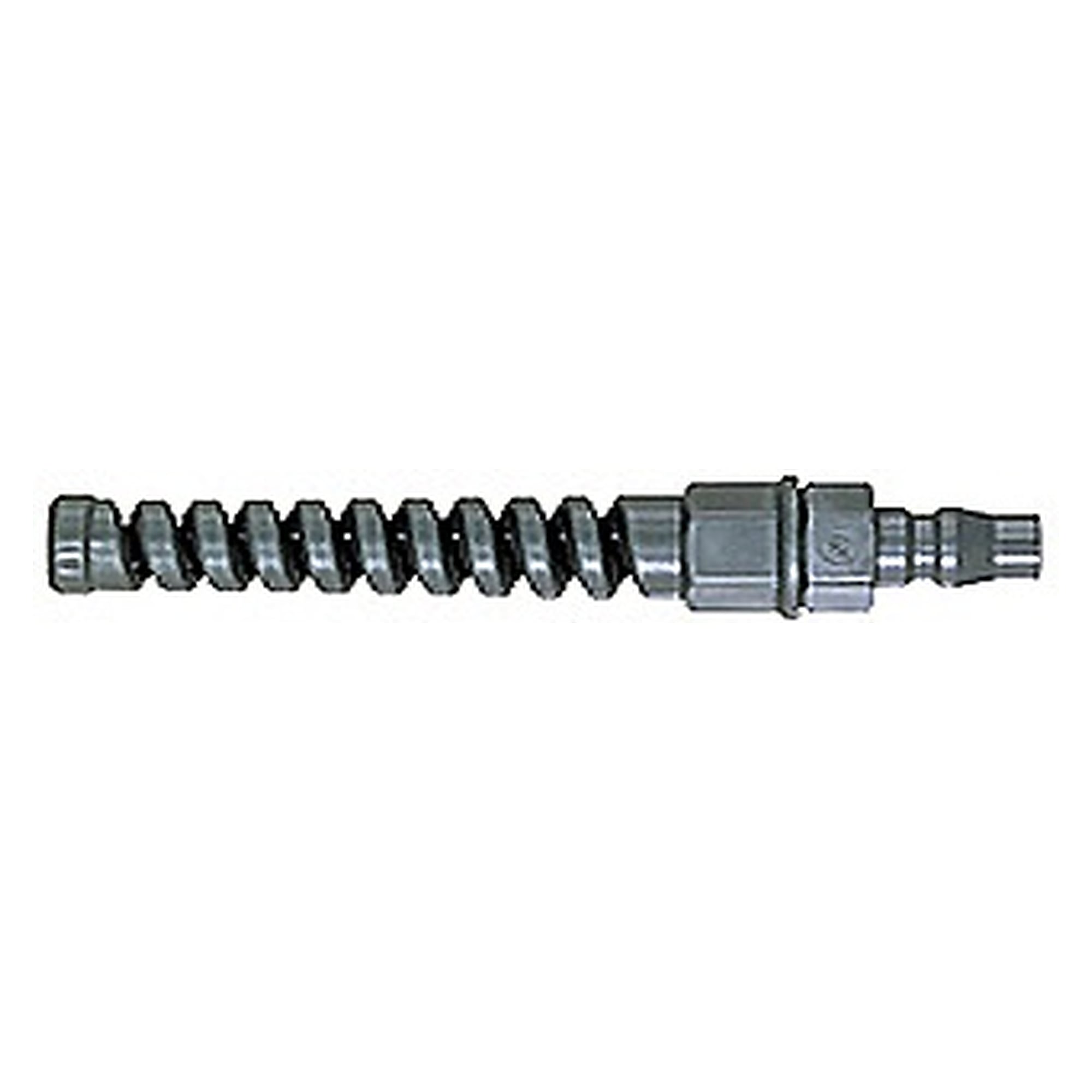

85PNG-PLA	Plug	ø8.5 mm x ø12.5 mm hose	17	(119)	26	(90)	7	Hex.22

SNG - For hose with hose guard nut connection

Model	Coupling part	Application	Plastic (g)	L	A	øB	øH(WAF)

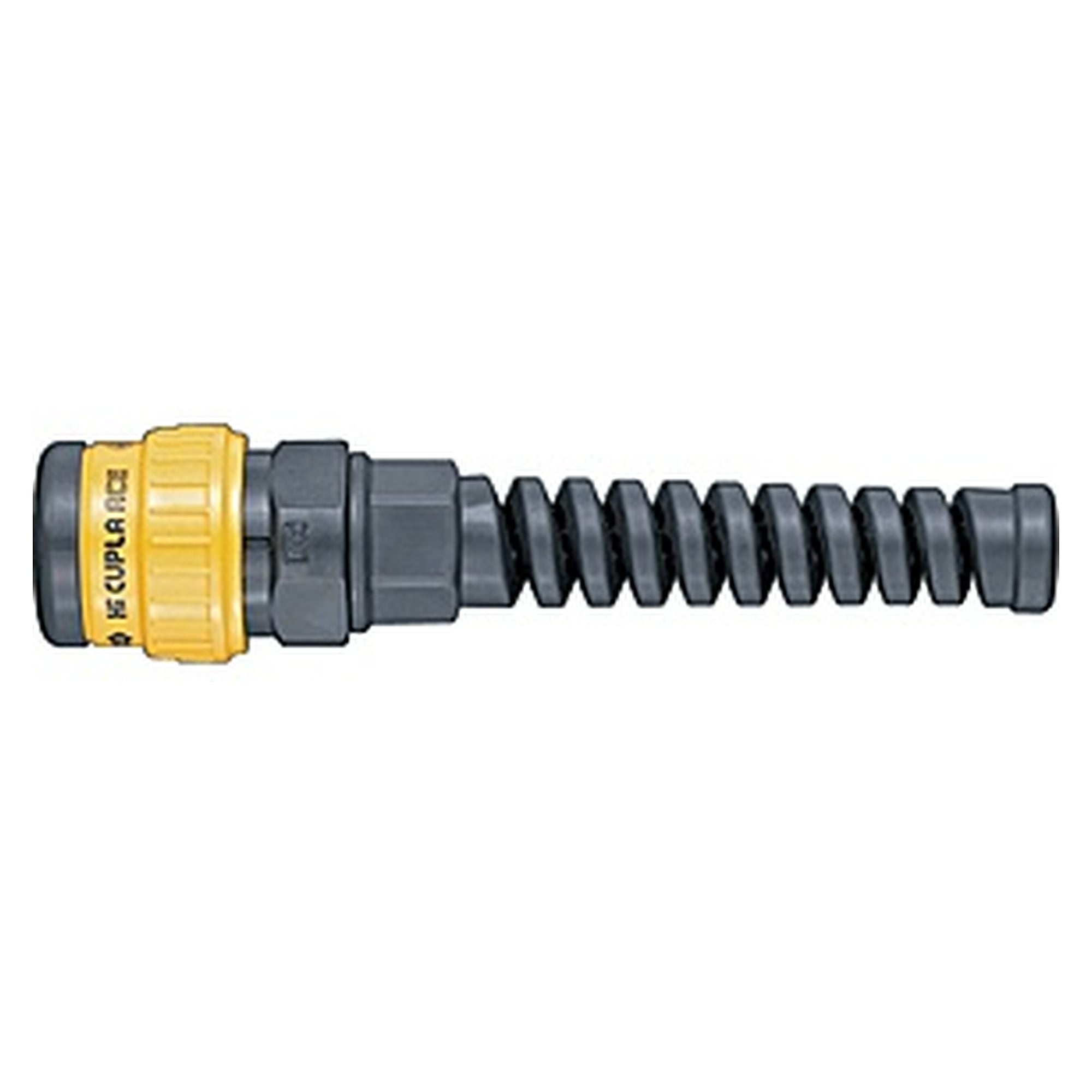

HA-50SNG	Socket	ø5 mm x ø8 mm hose	31	(130)	(90)	4	Hex.19
HA-65SNG	Socket	ø6.5 mm x ø10 mm hose	33	(130)	(90)	5.3	Hex.19
HA-85SNG	Socket	ø8.5 mm x ø12.5 mm hose	35	(130)	(90)	7	Hex.22

Dimensions in millimetres. Values in brackets apply in the connected condition.

Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore

Series comparison

Series	Max working pressure	Size range	Valve structure	Applicable fluids
COMPACT CUPLA	10 bar	Thread 1/8 inch; tube barb for ø4 x ø6 and ø6 x ø8 tube	Two-way shut-off	Air, Water
CUBE CUPLA	10 bar	4 mm and 6 mm ID tube, 1/8 inch	Two-way shut-off, one-way shut-off or straight through, depending on the combination of valved and valveless socket and plug.	Air, Water
FULL BLOW CUPLA	15 bar	Thread and hose barb 1/4 inch, 3/8 inch, 1/2 inch. SN type for urethane hose: for dia. 6.5 mm x dia. 10 mm, dia. 8 mm x dia. 12 mm, dia. 8.5 mm x dia. 12.5 mm and dia. 11 mm x dia. 16 mm polyurethane hose.	One-way shut-off	Air
HI CUPLA 200	15 bar	Thread and hose barb 1/4 inch, 3/8 inch, 1/2 inch. Tube barb (Tube fitter): Polyurethane tube outer dia. 6 +/-0.1, 8 +/-0.15, 10 +/-0.15; Polyamide tube outer dia. 6 +0.05/-0.08, 8 +0.05/-0.1, 10 +0.05/-0.1; Fluorine contained resin tube outer dia. 6 +/-0.07, 8 +/-0.07, 10 +/-0.07.	One-way shut-off	Air
HI CUPLA ACE	15 bar	Thread and hose barb 1/4 inch, 3/8 inch; PN, SN, PNG and SNG types for ø5 mm x ø8 mm, ø6 mm x ø9 mm, ø6.5 mm x ø10 mm, ø8 mm x ø12 mm and ø8.5 mm x ø12.5 mm polyurethane hose	One-way shut-off	Air, Water
HI CUPLA	15 bar	Thread and hose barb 1/8 inch to 1 inch, 1/4 inch to 1 inch hose	One-way shut-off	Air, Water
LINE CUPLA 200	15 bar	-	One-way shut-off	Air
LEVER LOCK CUPLA	18 bar	Metal body: 3/4 inch to 4 inch. Plastic body: 3/4 inch, 1 inch, 1 1/2 inch, 2 inch, 3 inch.	Straight through	Water, Hydraulic oil, Air, Powder, Steam

Pick HI CUPLA ACE for air lines that need the 1.5 MPa {15 kgf/cm2} class together with a plastic body at a quarter of the weight of steel HI CUPLA and a sleeve lock against accidental disconnection; plastic plugs and Model HA-T stay at 1.0 MPa {10 kgf/cm2}. MICRO CUPLA, SMALL CUPLA, SUPER CUPLA, COMPACT CUPLA and CUBE CUPLA are rated 1.0 MPa {10 kgf/cm2} and come into question only where that lower pressure is sufficient, and COMPACT CUPLA and CUBE CUPLA where shut-off on both sides is required instead of the one-way shut-off of HI CUPLA ACE. Where the same 1.5 MPa {15 kgf/cm2} is needed in metal, HI CUPLA, HI CUPLA 200, FULL BLOW CUPLA and LINE CUPLA 200 remain available; HI CUPLA ACE is interchangeable with HI CUPLA models 10, 17, 20, 30, 40 and 60.

Body and seal materials

Body material
Engineering plastics (PBT, POM)

Seal material	Mark	Working temperature	Remarks
NBR (Nitrile rubber), standard material	-	-20 °C to +60 °C	-

Further catalogue data

Note	Value
Working pressure by unit	1.5 MPa / 15 kgf/cm2 / 15 bar / 218 PSI; 1.0 MPa / 10 kgf/cm2 / 10 bar / 145 PSI for plastic plug and Model HA-T
Size, T type	HA-T type - Inlet : 20P-PLA, Outlet : HA-65S
Tightening torque range, 20/30SM and 20/30PM	2.5 to 3.0 {26 to 31} Nm {kgf cm}
Tightening torque range, 50/60/65SN, 50/60/65PN, 50/65SNG and 50/65PNG	1.6 to 2.0 {16 to 20} Nm {kgf cm}
Tightening torque range, 80/85SN, 80/85PN, 85SNG and 85PNG	2.2 to 2.8 {22 to 29} Nm {kgf cm}
Tightening torque range, 20PFF	2.0 to 2.5 {20 to 25} Nm {kgf cm}
Flow direction	Fluid flow can be bi-directional when socket and plug are connected.
Separation prevention mechanism	When the sleeve (Yellow color) is aligned to the lock position prior to connection, the sleeve will be locked to prevent accidental disconnection.
Brass inserts shown in the drawings	SH type socket and SM type socket (only 20SM) and PM type plug (only 20PM) are drawn with a brass insert.
Flow rate	Pressure - flow characteristics diagram is printed for HA-30SM x 20PM, HA-85SN x 20PM, HA-65SN x 20PM, HA-20SH x 20PM and HA-50SN x 20PM (flow rate 0 to 3.0 m3/min (ANR) against pressure 0 to 0.7 MPa {0 to 7 kgf/cm2}). Test condition: fluid air.

Interchangeability and size groups

Interchangeable with HI CUPLA models 10, 17, 20, 30, 40 and 60. Interchangeable with each models of NUT CUPLA series and HI CUPLA series except models 400, 600, and 800. Please see page 21 for 'HI CUPLA Series Interchangeability'.

Safety and application notes

Before use, please be sure to read the Safety Guide described at the end of this book and the Instruction Sheet that comes with the products.

All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 61. The complete catalogue is available for download on this page.
