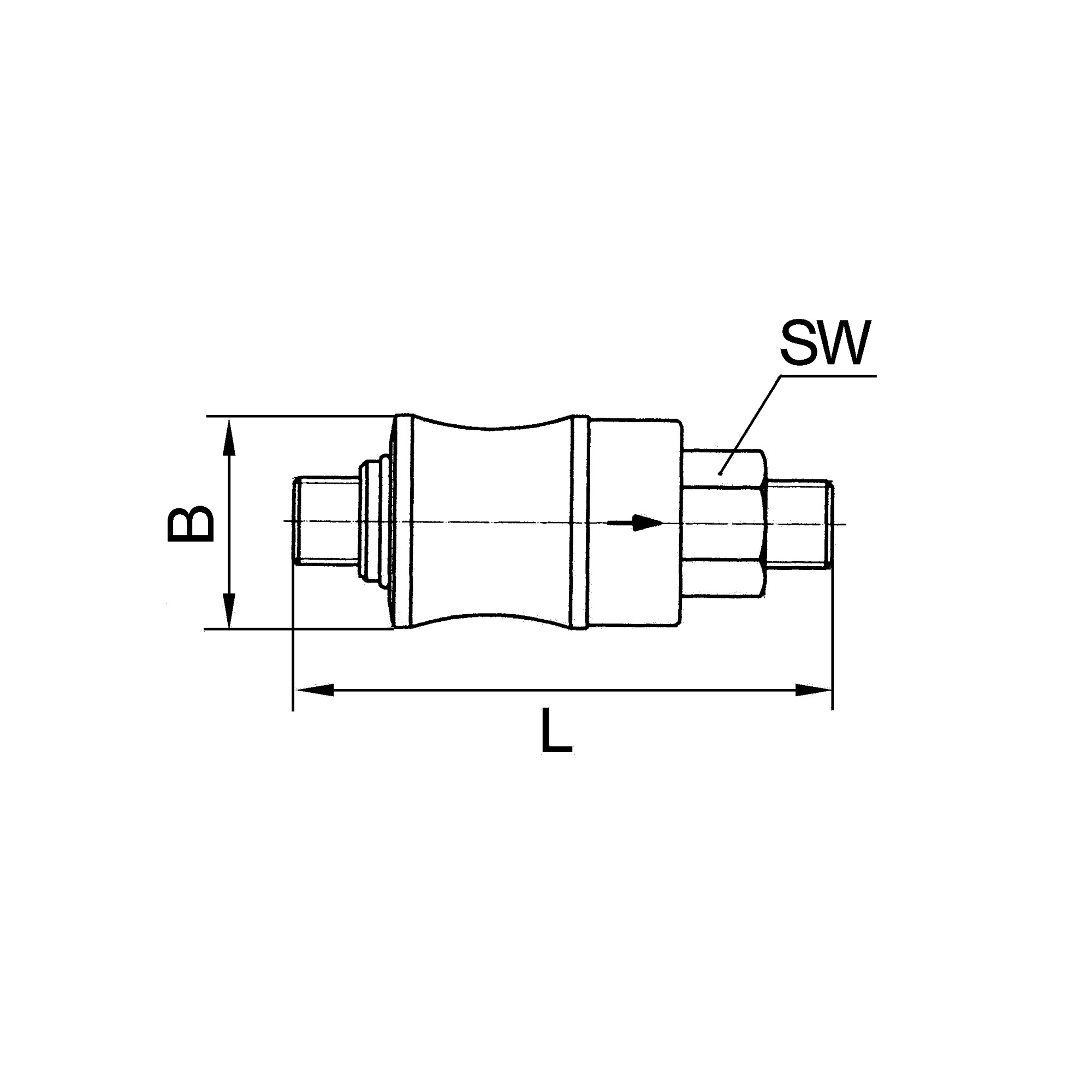

Manual sliding valve, G 1/2 IT, AF 26, PN max. 10 bar - Riegler 117407

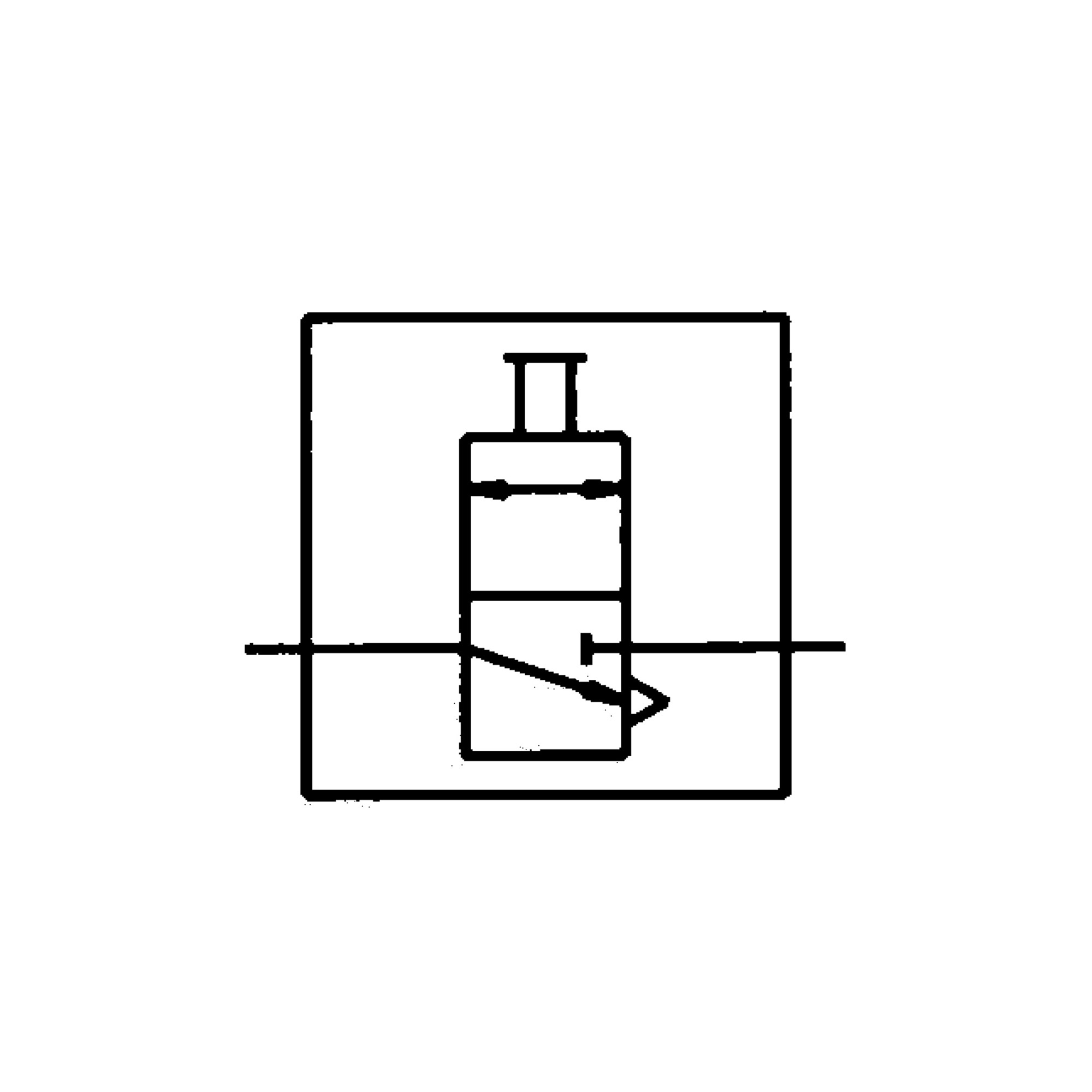

Manual sliding valve, Operating temperature 0 °C to 70 °C, G 1/2 IT, AF 26, PN max. 10 bar For use on devices that have to be vented whenever they are turned off, either because of safety regulations or for technical reasons. The pneumatic devices are disconnected from the system and simultaneously vented each time they are shut off.

Technical data

Standards and origin

• Customs tariff number: 73071990
• Country of origin: IT

About Globe valves

Shut off valves isolate a section of pipework by hand so that a machine or a fitting can be worked on without stopping the whole plant. The group covers DN 5 to DN 50 and is rated up to 40 bar depending on version. Straight bodied and angle valves are available with female or male thread.

What matters when choosing

• DN from 5 to 50 mm sets the flow. The nominal bore should match the line, a restriction inside the valve costs pressure permanently.
• Thread: from G 1/8 male up to G 2, as female or male thread. Together with the straight or angle body this decides how the line is routed.
• Maximum operating pressure ranges from 10 to 40 bar. The figure depends on body style and nominal bore and is stated individually per article.
• Body: brass or stainless steel 1.4401 / 1.4408. Stainless steel is the choice wherever medium or surroundings attack brass.
• Sealing material NBR or PTFE. Together with the operating temperature of -10 °C to 120 °C it limits which media are permitted.

Typical applications

• Isolating individual machines from the compressed air network before maintenance
• Manual isolation in water and cooling circuits
• Shutting off gauge lines ahead of pressure gauges
• Bypass and drain points in pipework
• Isolation ahead of filter and regulator units in air preparation

Bodies are made of brass or stainless steel 1.4401 / 1.4408, sealing is by NBR or PTFE. Production takes place in Germany, Italy, China and Taiwan.
