In service the clamping unit holds the piston rod in any position. The decisive figure is a static holding force of 200 N.

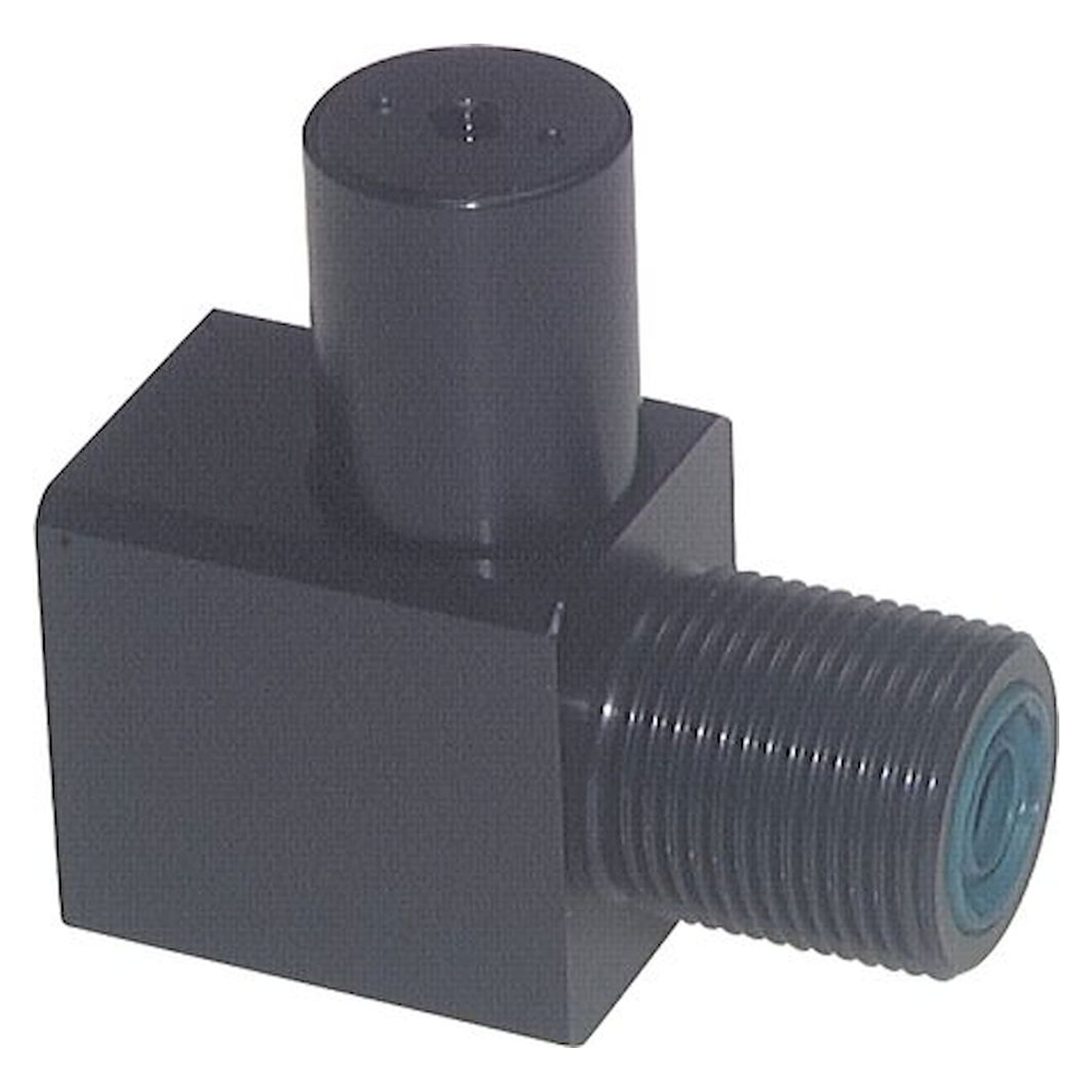

Clamping unit with adapter for small cylinders ISO 6432, holding force 200 N
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€192.58 €161.83
Item
FL-049271
Manufacturer no.
ZD 16 BREMS
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.ZD 16 BREMS
EAN4050571809287
Customs tariff number84123100
ConditionNew
Artikel
FL-049271
Frequently Bought Together
- This Item: €192.58 €161.83
- Clamping unit with adapter for small cylinders ISO 6432, holding force 400 N €272.65 €229.12
- Clamping cartridge for small cylinders ISO 6432, holding force 350 N €120.46 €101.23
This clamping unit holds the piston rod in any position. The data sheet gives a static holding force of 200 N.
Benefits
- The static holding force comes to 200 N.
- Holding on power failure needs no auxiliary energy, releasing takes an operating pressure of 4 - 10 bar.
- The temperature range covers -20 to +80 °C.
- Listed with Holding force (static) 200 N.
- Temperature range of -20 to +80 °C as per the data sheet.
- Produced to ISO 6432.
Technical data
| Version | clamping unit with adapter for cylinders |
|---|---|
| For cylinders to | ISO 6432 small cylinders |
| Holding force (static) [N] | 200 |
| Required extension of the cylinder piston rod [mm] | 35 |
| Temperature range [°C] | -20 to +80 |
| Working pressure [bar] | 4 - 10 |
Applications
On small cylinders to ISO 6432 the unit holds the piston rod with 200 N.
Standards and conformity
The adapter is matched to small cylinders to ISO 6432.
| Hersteller-Nr | ZD 16 BREMS |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571809287 |
| Weight | 0.100000 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
