In service the flange swivel mounting holds the cylinder and carries its forces into the machine frame. The decisive figure is a piston diameter of 80 mm. Dimensions 110 x 188.0 x 100 mm, made of stainless steel 1.4571.

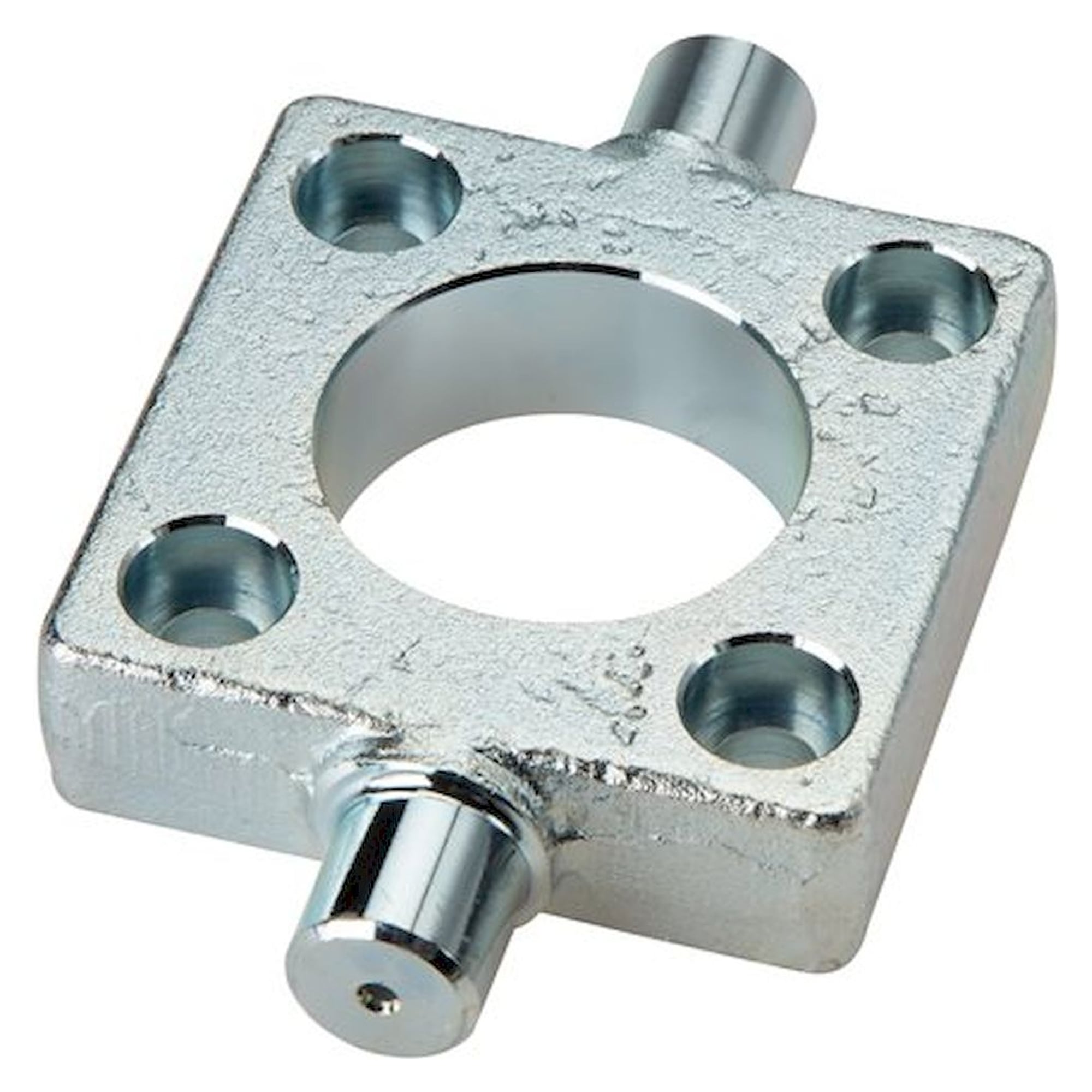

Flange swivel mounting ISO 15552, for piston diameter 80 mm, stainless steel 1.4571
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€452.98
Item
FL-021130
Manufacturer no.
TJF 80 ES
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TJF 80 ES
EAN4050571696870
Customs tariff number84129080
ConditionNew
Artikel
FL-021130
This flange swivel mounting to ISO 15552 holds the cylinder and carries its forces into the machine frame. This version comes with 110 mm for dimension A, 188.0 mm for dimension L2 and 100 mm for dimension M.
Benefits
- Designed for cylinders with a 80 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material stainless steel 1.4571 for size 80 mm.
- Dimension A comes to 110 mm for size 80 mm.
- Dimension L2 comes to 188.0 mm for size 80 mm.
Technical data
| Material | stainless steel 1.4571 |
|---|---|
| For piston diameter [mm] | 80 |
| Dimension A [mm] | 110 |
| Dimension D [mm] | 20 |
| Dimension E [mm] | 20 |
| Dimension G [mm] | 28 |
| Dimension L1 [mm] | 32.0 |
| Dimension L2 [mm] | 188.0 |
| Dimension M [mm] | 100 |
| Dimension N [mm] | 72.0 |

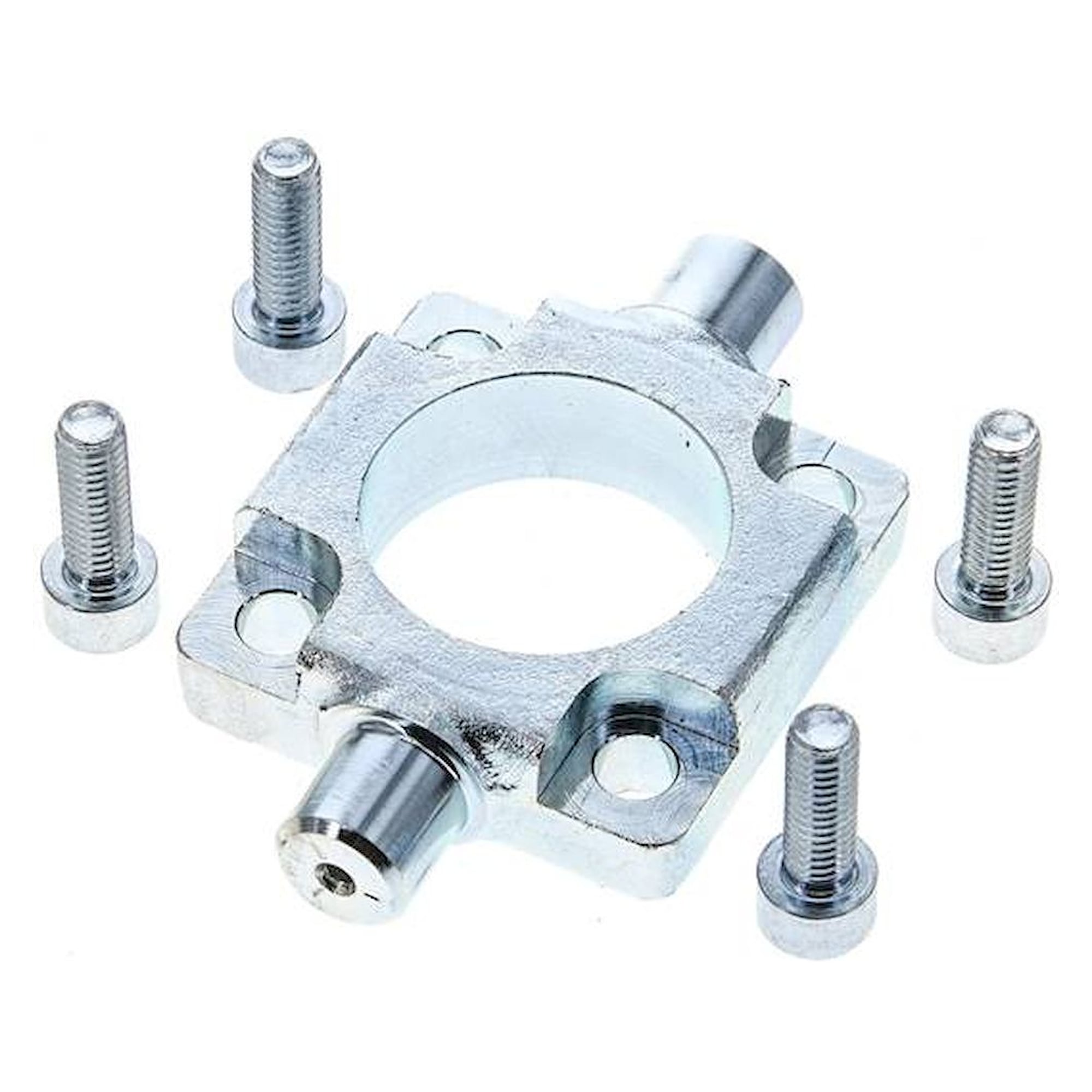

| Scope of delivery | 1 swivel mounting incl. fixing screws |
Applications
In machine and plant construction the flange swivel mounting holds a cylinder with a 80 mm piston diameter in place.
Standards and conformity
The interface dimensions are based on ISO 15552.
| Weight | 1.300000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | TJF 80 ES |
| EAN | 4050571696870 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Norm | ISO 15552 |
