The swivel eye mounting holds the cylinder and carries its forces into the machine frame. The underlying rating is a piston diameter of 40 mm. 54 x 36 x 35 mm in stainless steel 1.4401.

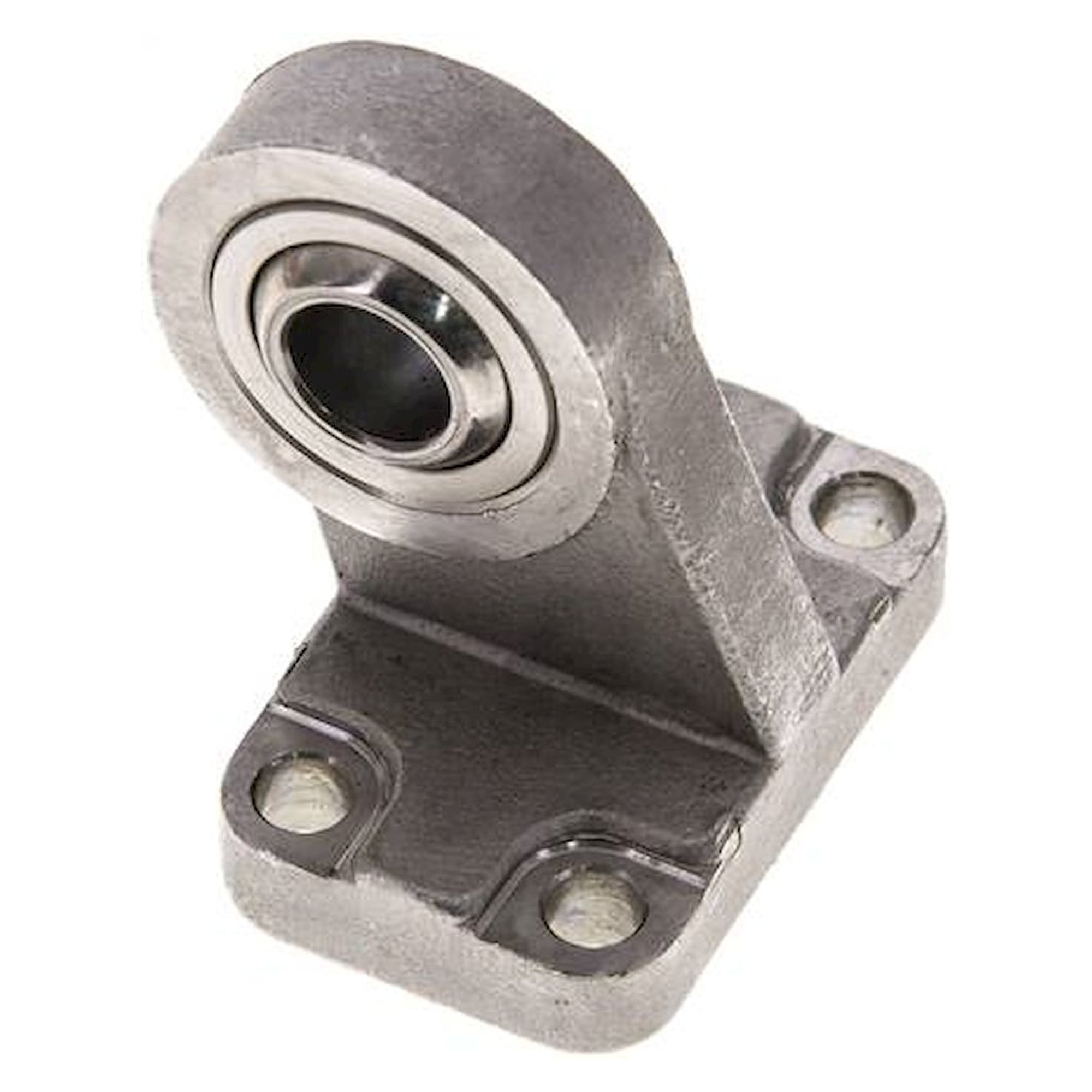

Spherical 90 degree eye mounting ISO 15552, for piston diameter 40 mm, stainless steel 1.4401
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€149.70
Item
FL-256720
Manufacturer no.
TF 40 ES
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TF 40 ES
EAN4050571694272
Customs tariff number73269098
ConditionNew
Artikel
FL-256720
Once installed, the swivel eye mounting holds the cylinder and carries its forces into the machine frame. Decisive for the selection is a piston diameter of 40 mm.
Benefits
- Designed for cylinders with a 40 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material stainless steel 1.4401 for size 40 mm.
- Dimension BM comes to 36 mm for size 40 mm.
- Dimension BN comes to 41 mm for size 40 mm.
- Dimension D comes to 12 mm for size 40 mm.
Technical data
| Material | stainless steel 1.4401 |
|---|---|
| For piston diameter [mm] | 40 |
| Dimension Q [mm] | 6.6 |
| Dimension BG [mm] | 22 |
| Dimension BH [mm] | 35 |
| Dimension BI [mm] | 24 |
| Dimension BL [mm] | 10 |
| Dimension BM [mm] | 36 |
| Dimension BN [mm] | 41 |
| Dimension BO [mm] | 54 |
| Dimension EN [mm] | 16 |
| Dimension BQ [mm] | 12.0 |
| Dimension D [mm] | 12 |
| Dimension H [mm] | 8.5 |
Applications
In machine and plant construction the spherical 90 degree eye mounting holds a cylinder with a 40 mm piston diameter in place.
Standards and conformity
The interface dimensions are based on ISO 15552.
| Weight | 0.220000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | TF 40 ES |
| EAN | 4050571694272 |
| Zolltarifnummer | 73269098 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Norm | ISO 15552 |
